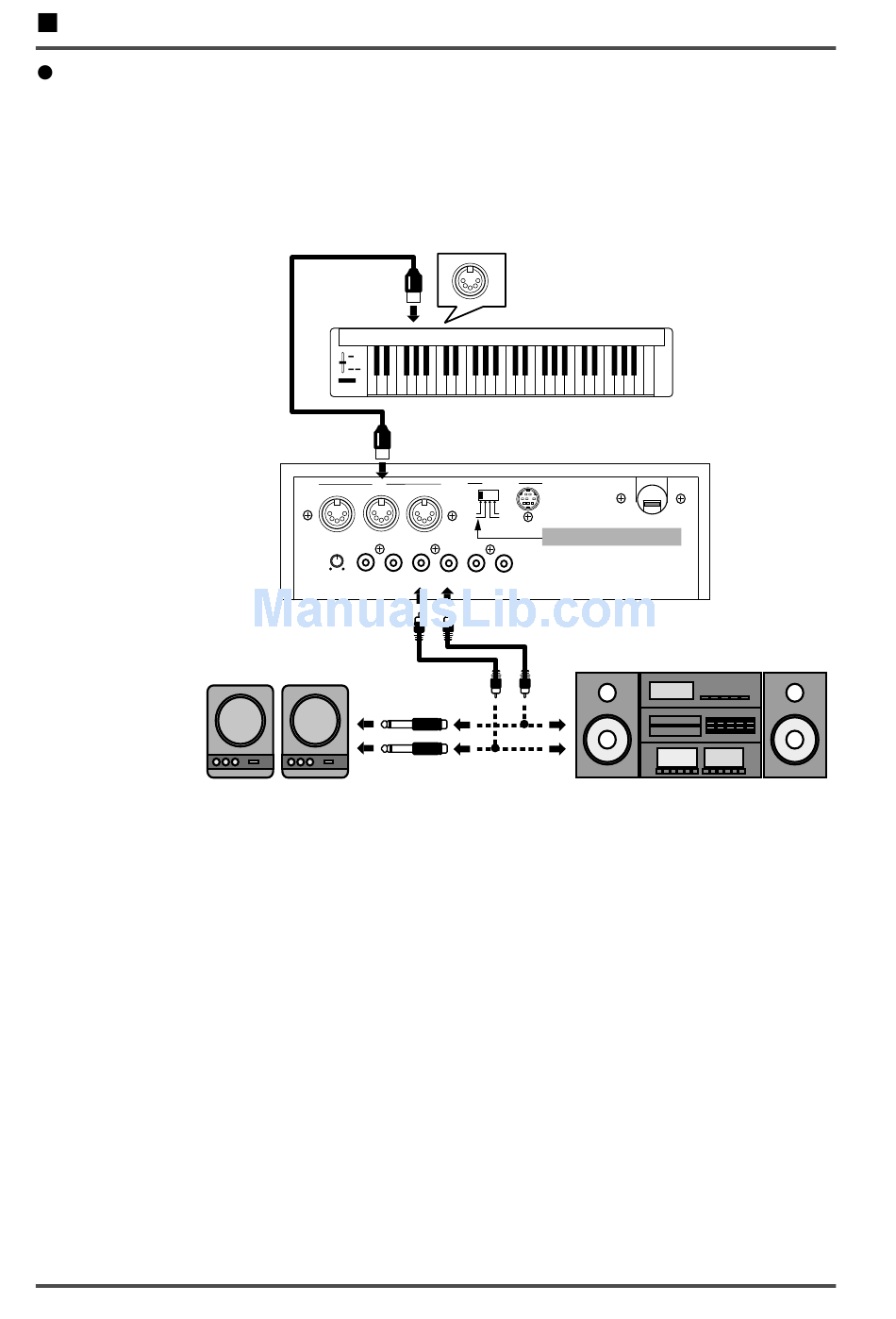

Connect a MIDI keyboard and play the sounds

Making connections

Powered Speaker
8
* This section explains how to connect this unit to a MIDI keyboard and play the sounds. If you
wish to connect a sequencer or personal computer to this unit, refer to p.120.
* To prevent malfunction and/or damage to speakers or other devices, always turn down the vol-
ume, and turn off the power on all devices before making any connections.
Set the Computer select switch located on the back of this unit to MIDI.
MIDI
OUT/THRU IN A
R
L
INPUT INPUT
VOLUME
INPUT
* At the factory settings, no sound will be sent from output2 jacks.(p.29)
Chapter 1. Try out the unit
MIDI OUT
MIDI keyboard
COMPUTER
IN B
MIDI Mac
PC-2 PC-1
Computer Switch : MIDI
R
L R
L
OUTPUT1
OUTPUT2
Left
LINE IN
Right
This unit
Stereo set
