Analog voice subscriber line configuration
examples
This section contains examples on configuring the FXO voice subscriber line and one to one binding
between FXS and FXO lines.

Configuration example for the FXO voice subscriber line

Network requirements
In the following figure, the FXO voice subscriber line connected to Router B operates in the
private-line auto ring-down (PLAR) mode, and the default remote phone number is 010-1001.
Dialing the number 0755-2003 on phone 0755-2001 connects to Router B. Since Router B operates
in the private-line mode, it requests connection to the preset remote number 010-1001 at Router A.

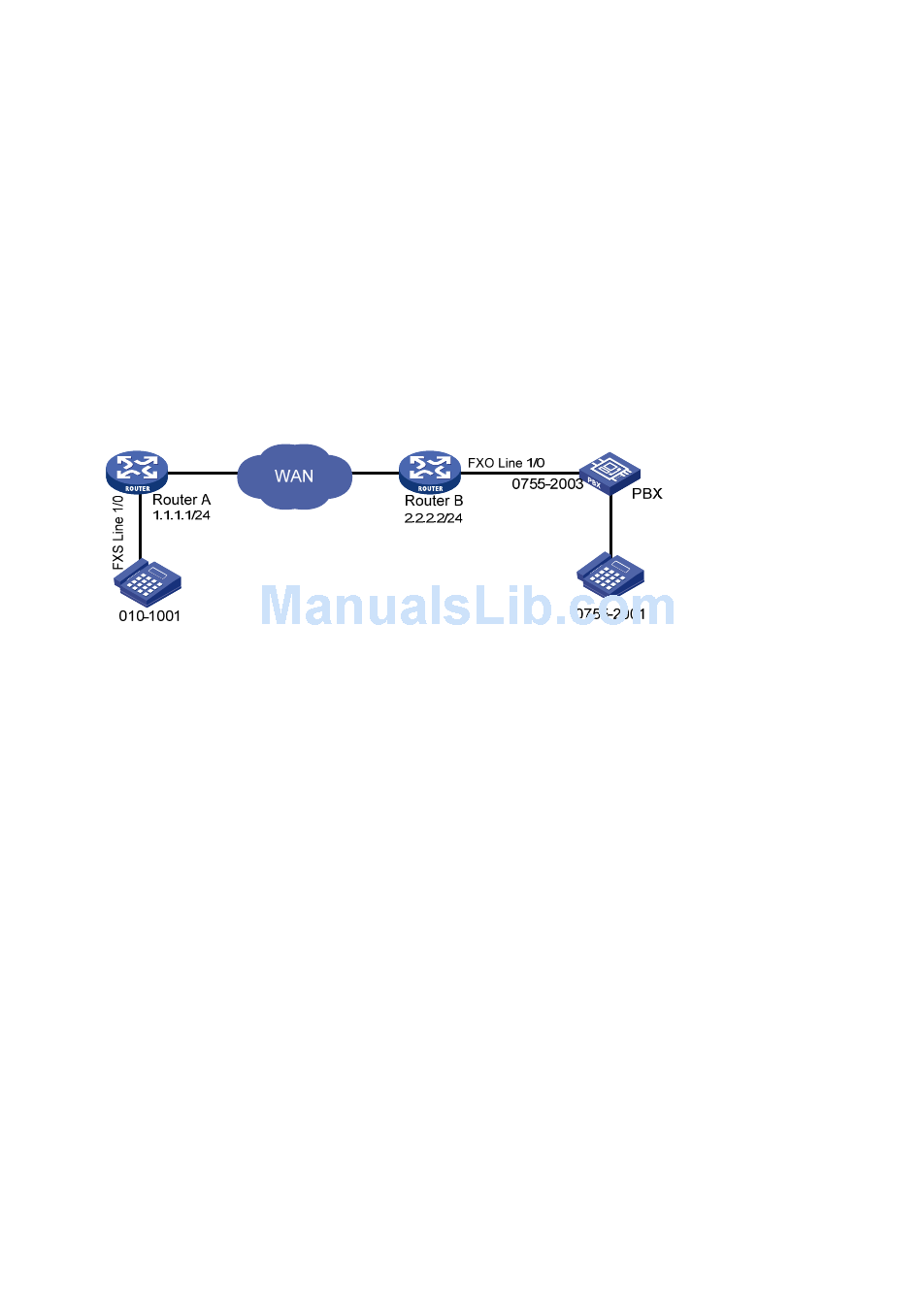

Figure 14 Network diagram
Configuration procedure
Routing-related configurations are beyond the scope of this example. This example assumes that
Router A and Router B are reachable to each other.
1. Configure Router A:
<RouterA> system-view
[RouterA] voice-setup
[RouterA-voice] dial-program
[RouterA-voice-dial] entity 0755 voip
[RouterA-voice-dial-entity755] match-template 0755....
[RouterA-voice-dial-entity755] address sip ip 2.2.2.2
[RouterA-voice-dial-entity755] quit
[RouterA-voice-dial] entity 1001 pots
[RouterA-voice-dial-entity1001] match-template 0101001
[RouterA-voice-dial-entity1001] line 1/0
2. Configure Router B:
<RouterB> system-view
[RouterB] voice-setup
[RouterB-voice] dial-program
[RouterB-voice-dial] entity 010 voip
[RouterB-voice-dial-entity10] match-template 010....
[RouterB-voice-dial-entity10] address sip ip 1.1.1.1
[RouterB-voice-dial-entity10] quit
[RouterB-voice-dial] entity 2001 pots
[RouterB-voice-dial-entity2001] match-template 07552001
