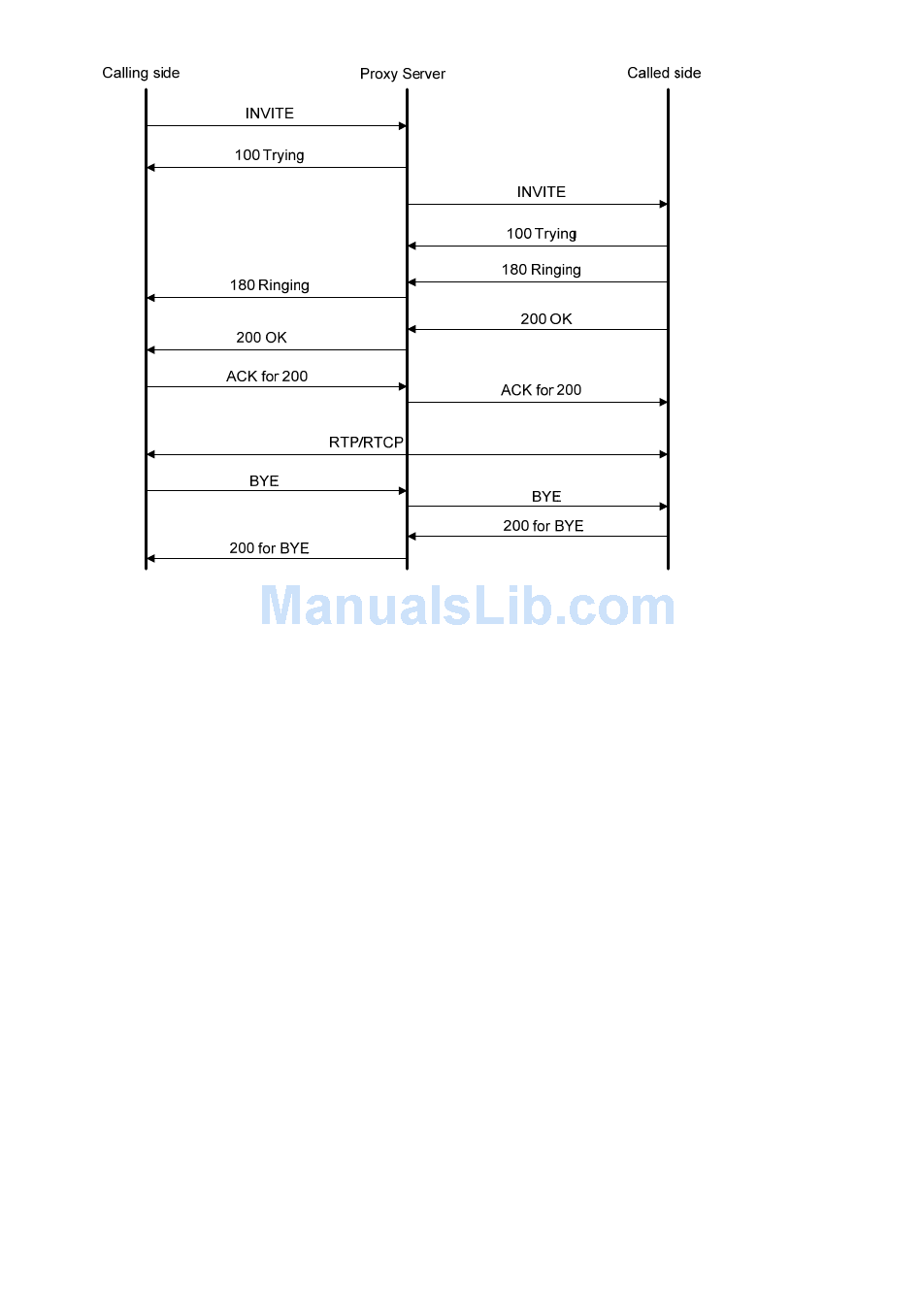

Figure 38 Call setup procedures involving a proxy server
This is a simplified scenario where only one proxy server is involved and no registrar is present. A
complex scenario, however, might involve multiple proxy servers and registrars.
Call redirection
Figure
39, when a SIP redirect server receives a session request, it sends back a
As shown in
response indicating the address of the called SIP endpoint instead of forwarding the request. The
calling and called endpoints send request and response to each other directly.
134
