If the link between Router C and VCX is disconnected, Phone 1000 and Phone 5000 can
register with the local SIP server again to originate calls.
Configuring the local SIP server to operate in the alive mode
(method 2)
Network requirements
Router A and Router B carry out call services through the VCX. Configure Router A to operate in the
local SIP server alive mode. When the IP link between Router A and VCX fails, the local SIP server
on Router A accepts registrations from its attached phones to make sure the phones can initiate and
receive calls through Router A. When the IP link between Router A and VCX recovers, the local SIP
server on Router A is disabled, and the attached phones re-register with the VCX. See

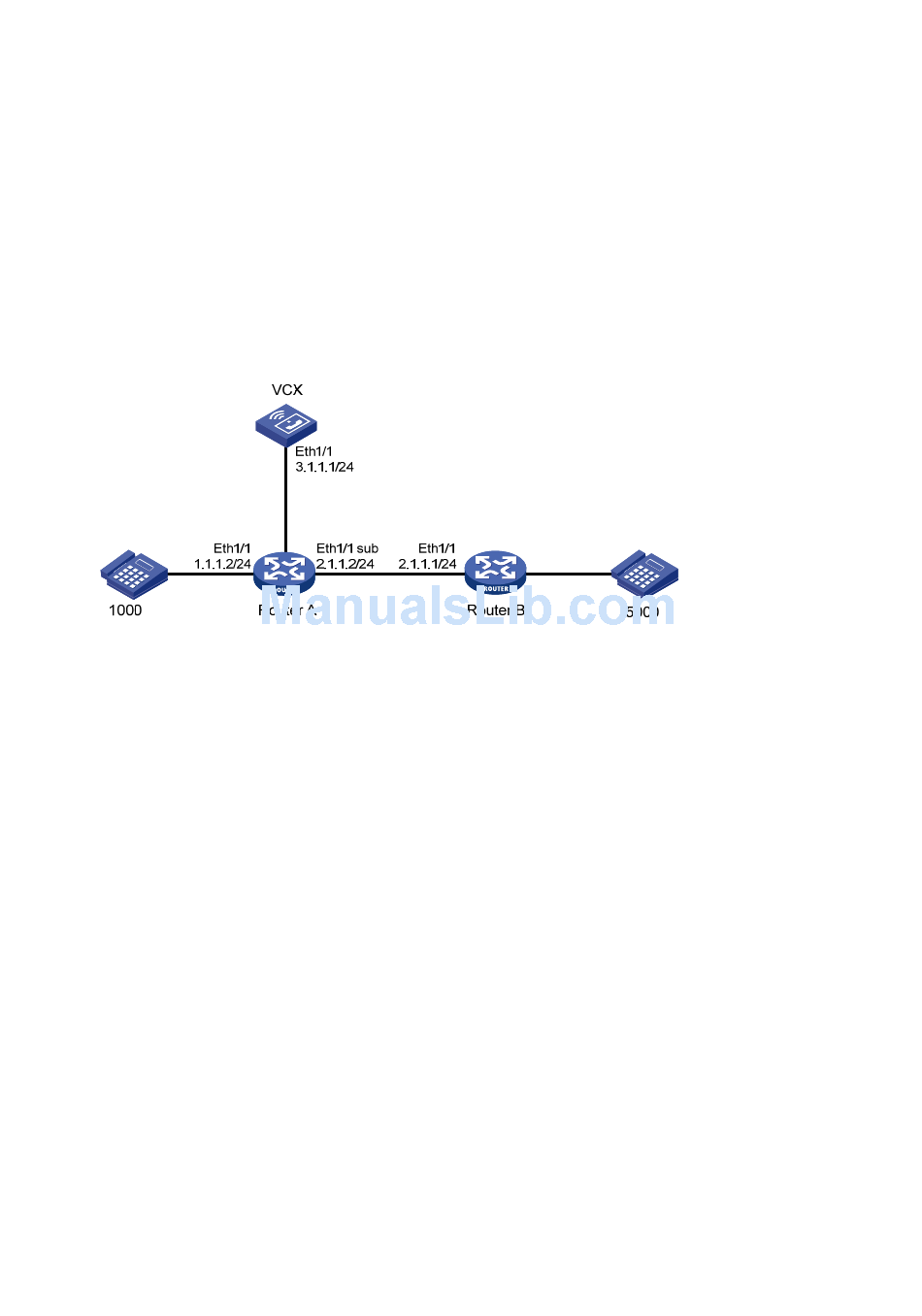

Figure 54 Network diagram
Configuration procedure
1. Configure Router A:
# Configure the Ethernet interface.
<RouterA> system-view
[RouterA] interface ethernet 1/1
[RouterA-Ethernet1/1] ip address 1.1.1.2 255.255.255.0
[RouterA-Ethernet1/1] ip address 2.1.1.2 255.255.255.0 sub
[RouterA-Ethernet1/1] quit
# Configure the router to operate in the alive mode.
[RouterA] voice-setup
[RouterA-voice] sip-server
[RouterA-voice-server] server-bind ipv4 2.1.1.2
[RouterA-voice-server] mode alive-server
[RouterA-voice-server] probe remote-server ipv4 3.1.1.1
[RouterA-voice-server] server enable
# Configure number registration information for the phones.
[RouterA-voice-server] register-user 1000
[RouterA-voice-server-user1000] number 1000
[RouterA-voice-server-user1000] quit
[RouterA-voice-server] register-user 5000
[RouterA-voice-server-user5000] number 5000
[RouterA-voice-server-user5000] return
# Configure voice entities.
187
