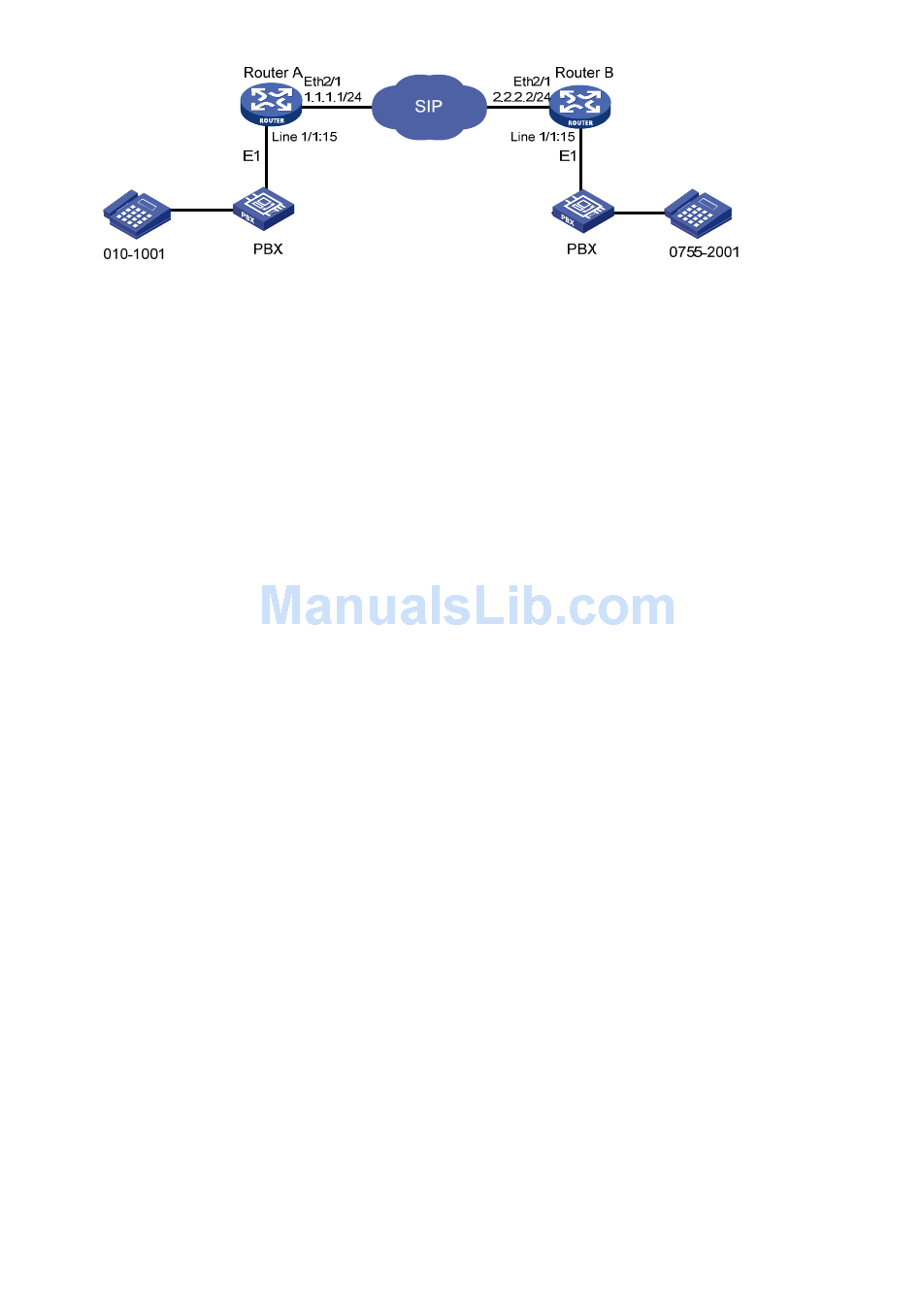

Figure 25 Network diagram
Configuration procedure
1. Configure Router A:
# Configure IP address 1.1.1.1/24 for interface Ethernet 2/1.
<RouterA> system-view
[RouterA] interface ethernet 2/1
[RouterA-Ethernet2/1] ip address 1.1.1.1 255.255.255.0
[RouterA-Ethernet2/1] quit
# Create an ISDN PRI group on interface E1 1/1.
[RouterA] system-view
[RouterA] controller e1 1/1
[RouterA-E1 1/1] pri-set
[RouterA-E1 1/1] quit
# Set the ISDN protocol type and protocol mode for the ISDN interface serial 1/1:15.
[RouterA] interface serial 1/1:15
[RouterA-Serial1/1:15] isdn protocol-type qsig
[RouterA-Serial1/1:15] quit
# Create a POTS voice entity for the ISDN PRI interface.
[RouterA] voice-setup
[RouterA-voice] dial-program
[RouterA-voice-dial] entity 1001 pots
# Configure a target match-template pointing to telephone number 010-1001 for the POTS
voice entity.
[RouterA-voice-dial-entity1001] match-template 0101001
# Associate the POTS voice entity with subscriber line 1/1:15.
[RouterA-voice-dial-entity1001] line 1/1:15
[RouterA-voice-dial-entity1001] send-number all
[RouterA-voice-dial-entity1001] quit
[RouterA-voice-dial] quit
[RouterA-voice] quit
# Enable the QSIG tunneling function on the subscriber line associated with the POTS voice
entity.
[RouterA] subscriber-line 1/1:15
[RouterA-subscriber-line1/1:15] qsig-tunnel enable
[RouterA-subscriber-line1/1:15] quit
# Create a VoIP voice entity.
[RouterA-voice] dial-program
[RouterA-voice-dial] entity 0755 voip
