The IP address of the interface Serial 1/0 on Router A is 1.1.1.1/24, and that of the interface Serial
1/0 on Router B is 2.2.2.2/24.

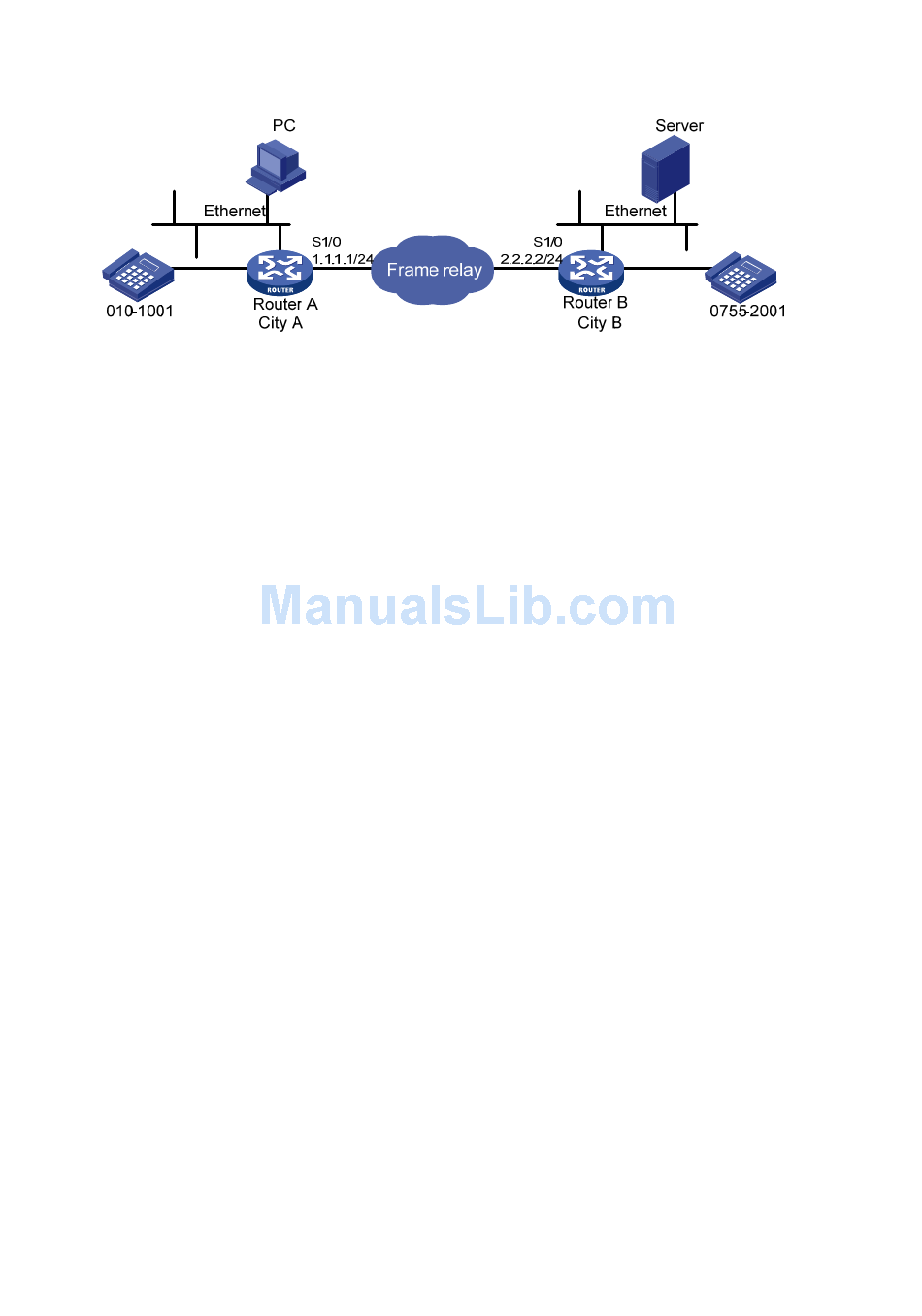

Figure 104 Network diagram
Configuration procedure
1. Configure Router A:
# Create a new frame relay class VoFR.
<RouterA> system-view
[RouterA] fr class vofr
# Configure the voice bandwidth.
[RouterA-fr-class-vofr] voice bandwidth 32000 reserved
# Configure the fragment size of data packets in the case that the voice function is disabled.
[RouterA-fr-class-vofr] fragment 200 data-level
# Configure the fragment size of data packets in the case that the voice function is enabled.
[RouterA-fr-class-vofr] fragment 100 voice-level
[RouterA-fr-class-vofr] quit
# Enter interface Serial 1/0 view and configure the encapsulation format and the IP address.
[RouterA] interface serial 1/0
[RouterA-Serial1/0] link-protocol fr ietf
[RouterA-Serial1/0] ip address 1.1.1.1 255.255.255.0
# Configure a frame relay address mapping and enable traffic shaping.
[RouterA-Serial1/0] fr map ip 2.2.2.2 100
[RouterA-Serial1/0] fr traffic-shaping
# Configure a frame relay DLCI and set the frame relay class to VoFR.
[RouterA-Serial1/0] fr dlci 100
[RouterA-fr-dlci-Serial1/0-100] fr-class vofr
# Specify the call control protocol to be used by DLCI 100 as Huawei-compatible (DTE).
[RouterA-fr-dlci-Serial1/0-100] vofr huawei-compatible dte
[RouterA-fr-dlci-Serial1/0-100] quit
[RouterA-Serial1/0] quit
# Configure the VoFR entity (07552001).
[RouterA] voice-setup
[RouterA-voice] dial-program
[RouterA-voice-dial] entity 0755 vofr
[RouterA-voice-dial-entity755] match-template 07552001
[RouterA-voice-dial-entity755] address vofr-dynamic serial 1/0 100
[RouterA-voice-dial-entity755] quit
# Configure the local POTS entity (0101001).
