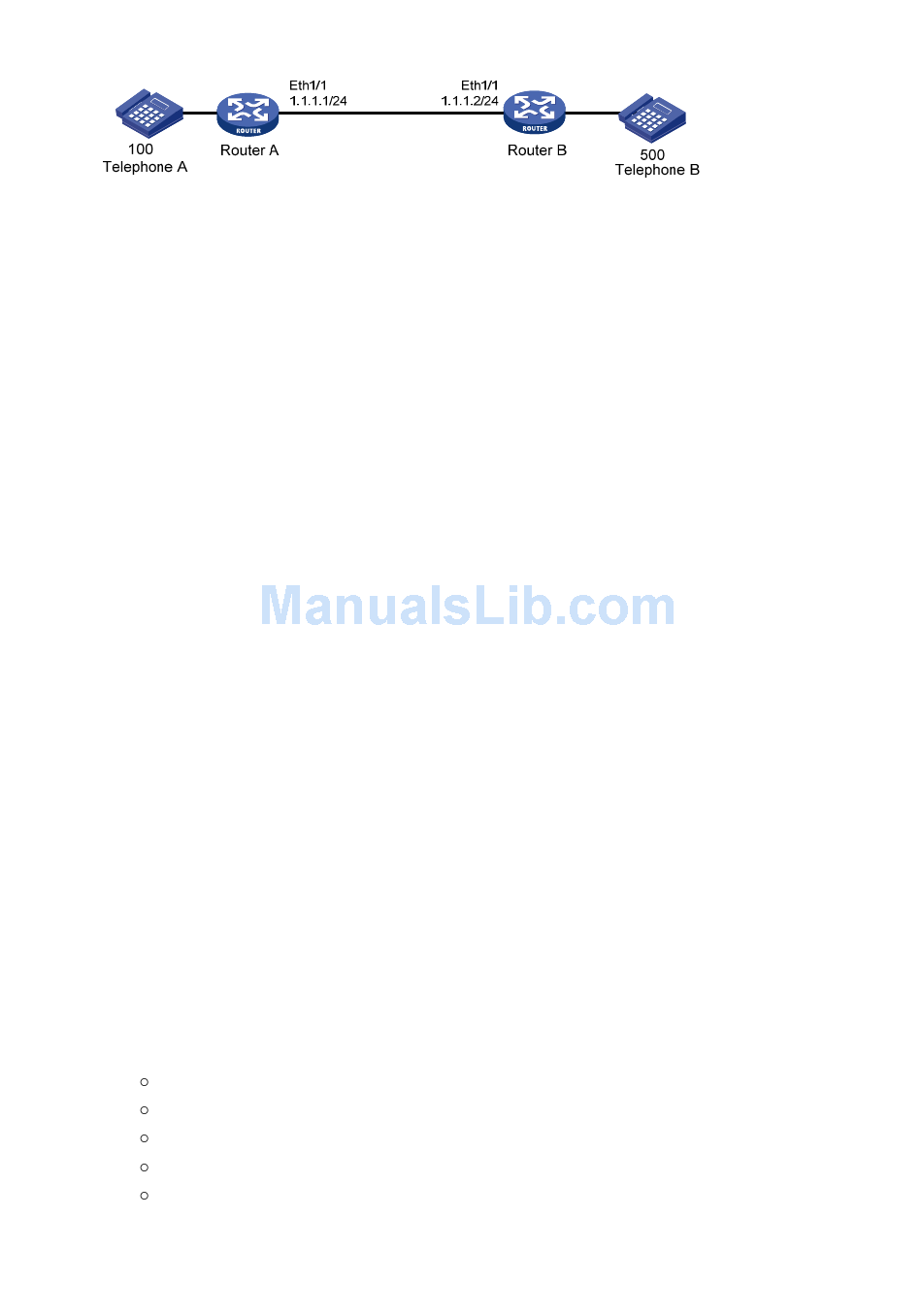

Figure 98 Network diagram
Configuration procedure
1. Configure Router A:
# Configure POTS voice entity 100.
<RouterA> system-view
[RouterA] voice-setup
[RouterA-voice] dial-program
[RouterA-voice-dial] entity 100 pots
[RouterA-voice-dial-entity100] match-template 100
[RouterA-voice-dial-entity100] line 1/0
[RouterA-voice-dial-entity100] quit
# Configure VoIP voice entity 300 to Router B.
[RouterA-voice-dial] entity 300 voip
[RouterA-voice-dial-entity300] match-template 300
[RouterA-voice-dial-entity300] address sip ip 1.1.1.2
[RouterA-voice-dial-entity300] outband sip
2. Configure Router B:
# Configure POTS voice entity 500.
<RouterB> system-view
[RouterB] voice-setup
[RouterB-voice] dial-program
[RouterB-voice-dial] entity 500 pots
[RouterB-voice-dial-entity500] match-template 500
[RouterB-voice-dial-entity500] line 1/0
[RouterB-voice-dial-entity500] quit
[RouterB-voice-dial] quit
# Configure IVR voice entity 300 and specify node 1 as the root node.
[RouterB-voice-dial] entity 300 ivr
[RouterB-voice-dial-entity300] match-template 300
[RouterB-voice-dial-entity300] ivr-root 1
[RouterB-voice-dial-entity300] quit
[RouterB-voice-dial] quit
# Specify media resource IDs for media resource files:
Specify 10001 for the file cfa0:/wav/g729r8/welcome.wav
Specify 10002 for the file cfa0:/wav/g729r8/timeout.wav
Specify 10003 for the file cfa0:/wav/g729r8/input_error.wav
Specify 10004 for the file cfa0:/wav/g729r8/bye.wav
Specify 10005 for the file cfa0:/wav/g729r8/call.wav
[RouterB-voice] ivr-system
[RouterB-voice-ivr] media-file g729r8
