MANUAL TRANSAXLE DRIVE AXLE 3B – 9

UNIT REPAIR

INNER JOINT (TRANSAXLE SIDE)
Tool Required
J–35566 Boot Clamp Pliers
Disassembly Procedure
1. Remove the drive axle. Refer to "Drive Axle Assem-
bly" in this section.

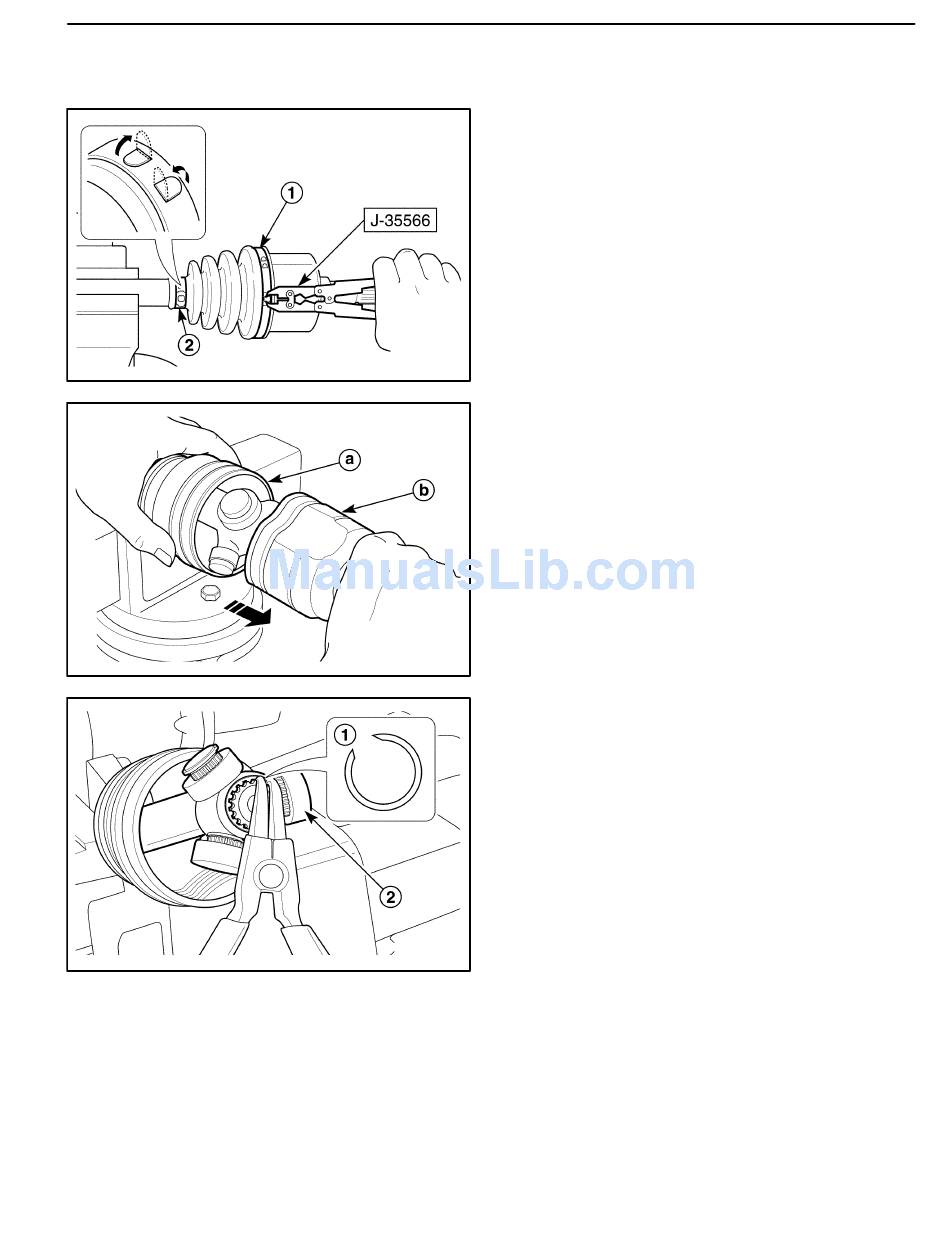

2. Remove the clamps on the joint boot.
D Remove the boot clamp (large) using the boot
clamp pliers J–35566 (1).
D Remove the boot clamp (small) (2).
D104B701
3. Remove the joint housing from boot.
a. Boot.
b. Joint housing.
D104B702
4. Degrease the joint assembly.
5. Remove the tripot joint.
D Remove the circlip (1).
D Remove the tripot joint (2).
D104B703
