DAEWOO M-150 BL2
FIVE-SPEED MANUAL TRANSAXLE 5B – 29

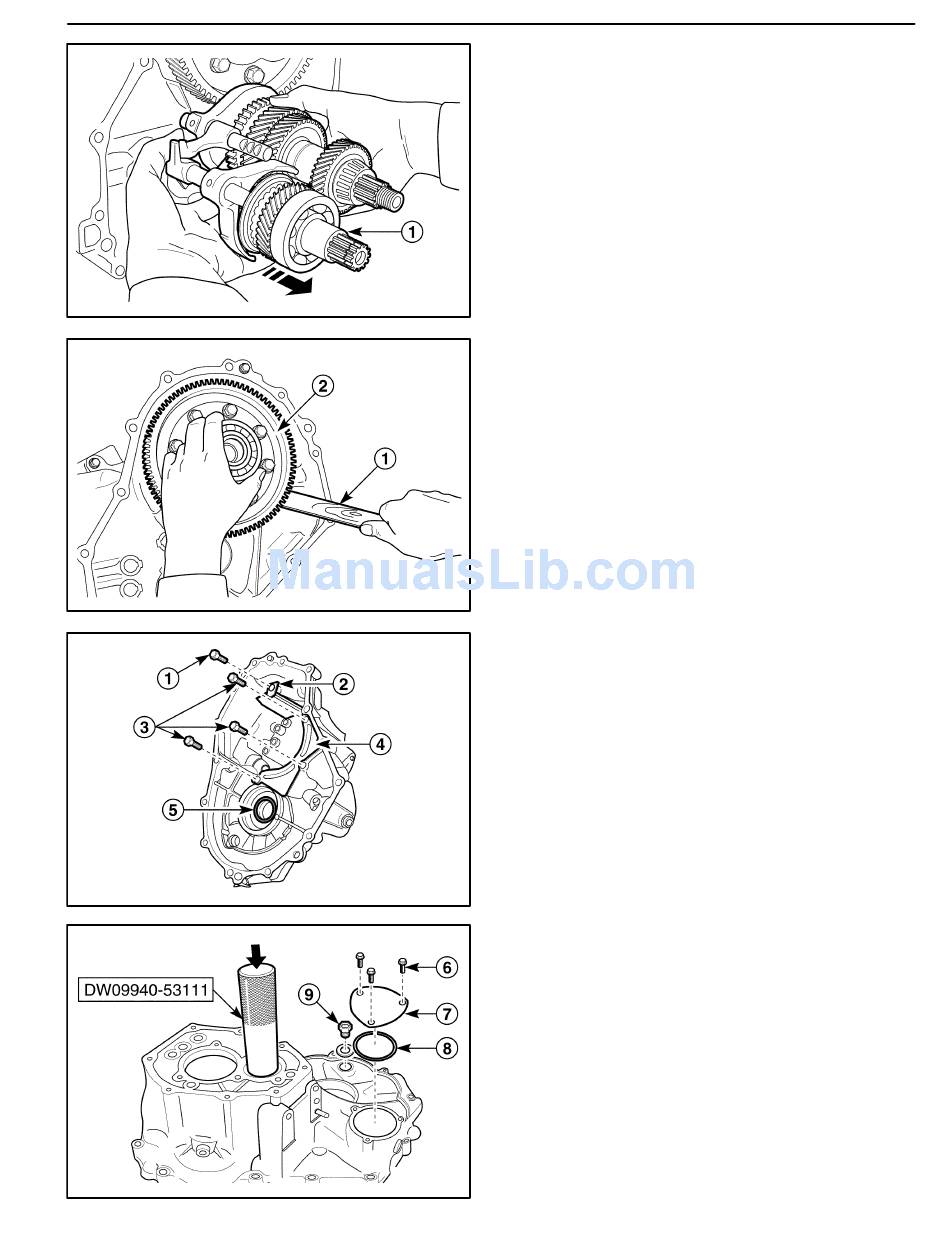

21. Remove the gear unit.
D Remove the gear unit and the shift shaft assem-
bly together (1).
Notice: Be careful not to damage teeth of the counter
shaft pinion and the differential ring gear.
D Remove the high and the low speed shift shaft
assembly from the gear unit.
D103B720
22. Remove the differential assembly.
D Insert a wooden stick into the lower side of differ-
ential (1).
D Remove the differential assembly by moving it
right and left (2).
D103B721
23. Remove the related parts of the transaxle case (Left
Side).
D Remove the bolt (1).
D Remove the oil gutter (2).
D Remove the bolts (3).
D Remove the oil plate (4).
D Remove the differential left side oil seal using a
hammer and a copper chisel (5).
D103B722
D Remove the bolts (6).
D Remove the case cap (Left Side) (7).
D Remove the case cap O–ring (Left Side) (8).
D Remove the oil level plug (including steel gasket)
(9).
D Remove the counter shaft bearing outer race us-
ing a hammer and the gear, bearing installer DW
09940–53111.
D103B723
