DAEWOO M-150 BL2
WIPERS/WASHER SYSTEMS 9D – 13

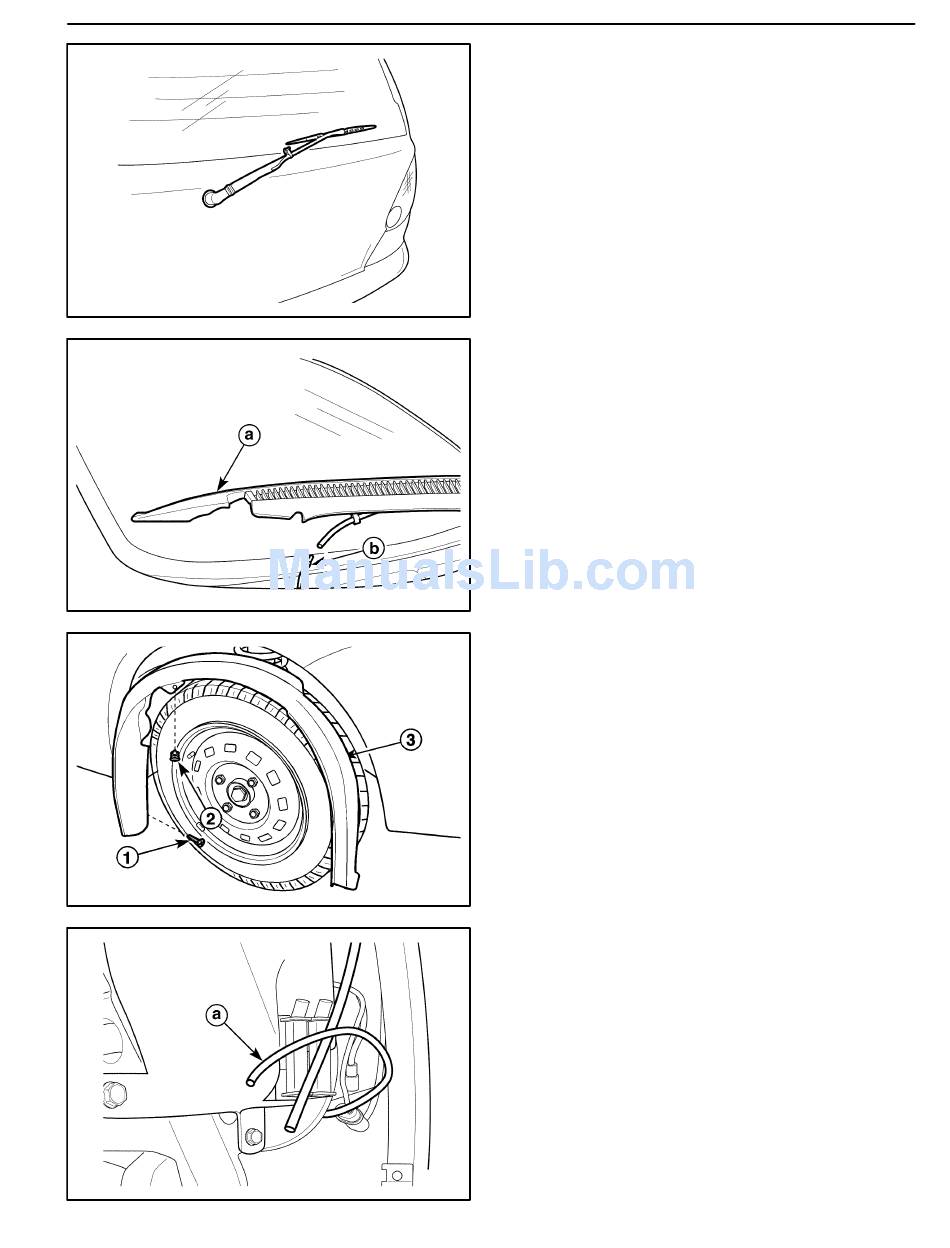

Installation Procedure
1. Install the washer nozzle to the wiper arm assembly.
D Install the washer nozzle hose in the wiper arm re-
turn spring.
D Fix the washer nozzle into the wiper arm.
D Install the washer nozzle hose to the pivot cap con-
nector.
D109D535

WASHER HOSE

Removal Procedure
1. Remove the cowl vent grille. Refer to Section 9R,
Body Front End.
a. Cowl vent grille.
2. Disconnect the washer hose connector.
b. Washer hose connector.
D109C522
3. Raise and suitably support the vehicle.
4. Remove the front RH wheel.
5. Remove the front RH wheel house splash shield.
D Remove the screws (1).
D Remove the clips (2).
D Remove the wheel house splash shield (3).
D19D537A
6. Disconnect the washer hose from the washer pump.
a. Washer hose.
D109D544
