9F – 6 AUDIO SYSTEMS
REPAIR INSTRUCTIONS
ON–VEHICLE SERVICE
D109D547
D109D548
D19D549A

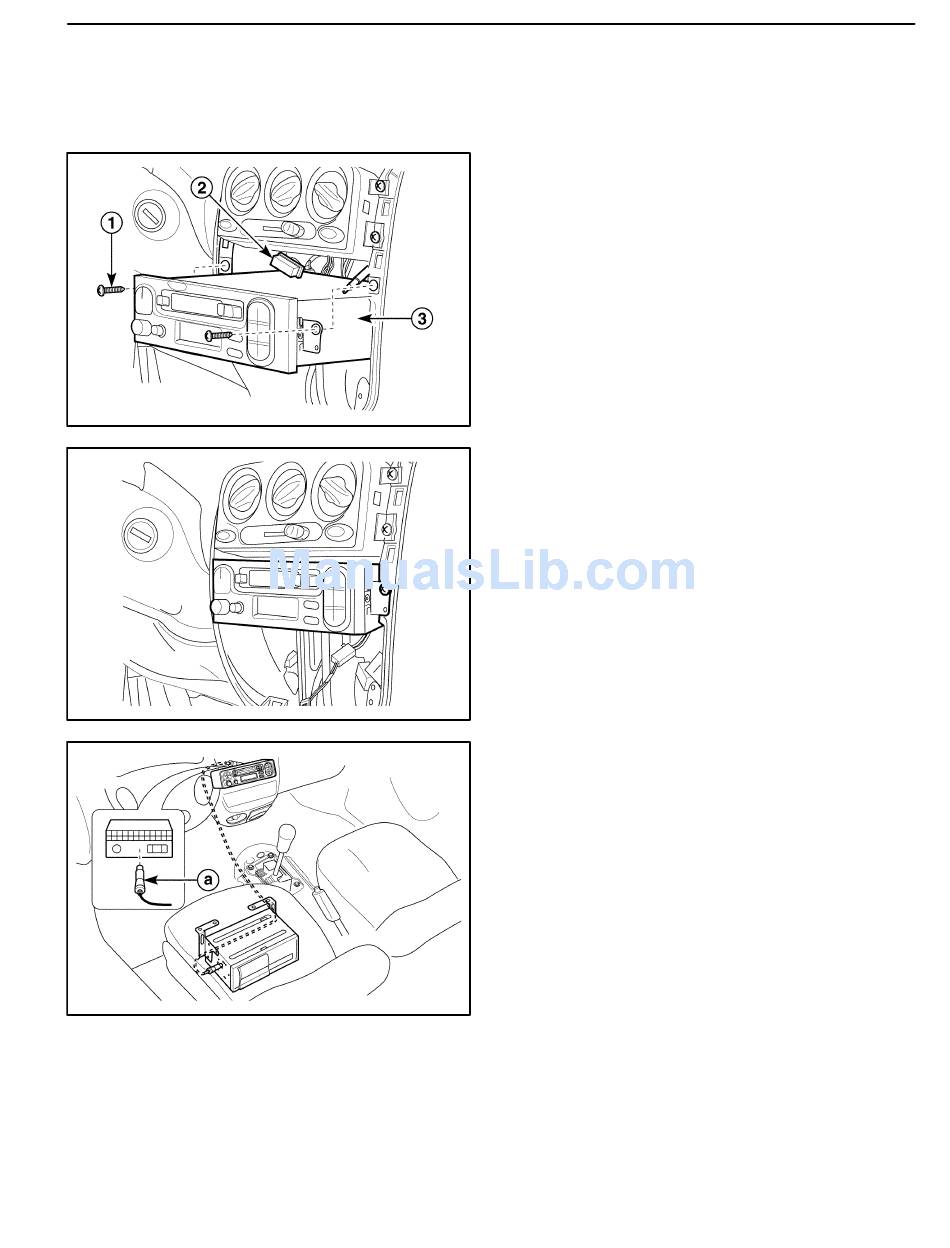

AUDIO SYSTEM
Removal Procedure
1. Disconnect the negative battery cable.
2. Remove the instrument cluster trim panel from the in-
strument panel. Refer to Section 9E, Instrument/Driv-
er Information.
3. Remove the audio system from the instrument panel.
D Remove the screws (1).
D Disconnect the electrical connector and the anten-
na cable (2).
D Remove the audio system (3).
Installation Procedure
1. Connect the electrical connector and the antenna
cable.
2. Install the audio system with the screws.
3. Install the instrument cluster trim panel. Refer to Sec-
tion 9E, Instrument/Driver Information.
4. Connect the negative battery cable.
CD CHANGER
Removal Procedure
1. Disconnect the negative battery cable.
2. Remove the audio system from the instrument panel.
Refer to "Audio System" in this section.
3. Remove the floor console. Refer to Section 9G, Inte-
rior Trim.
4. Disconnect the CD changer electrical connector from
the audio system.
a. CD changer electrical connector.
DAEWOO M-150 BL2
