DAEWOO M-150 BL2
WIPERS/WASHER SYSTEMS 9D – 7

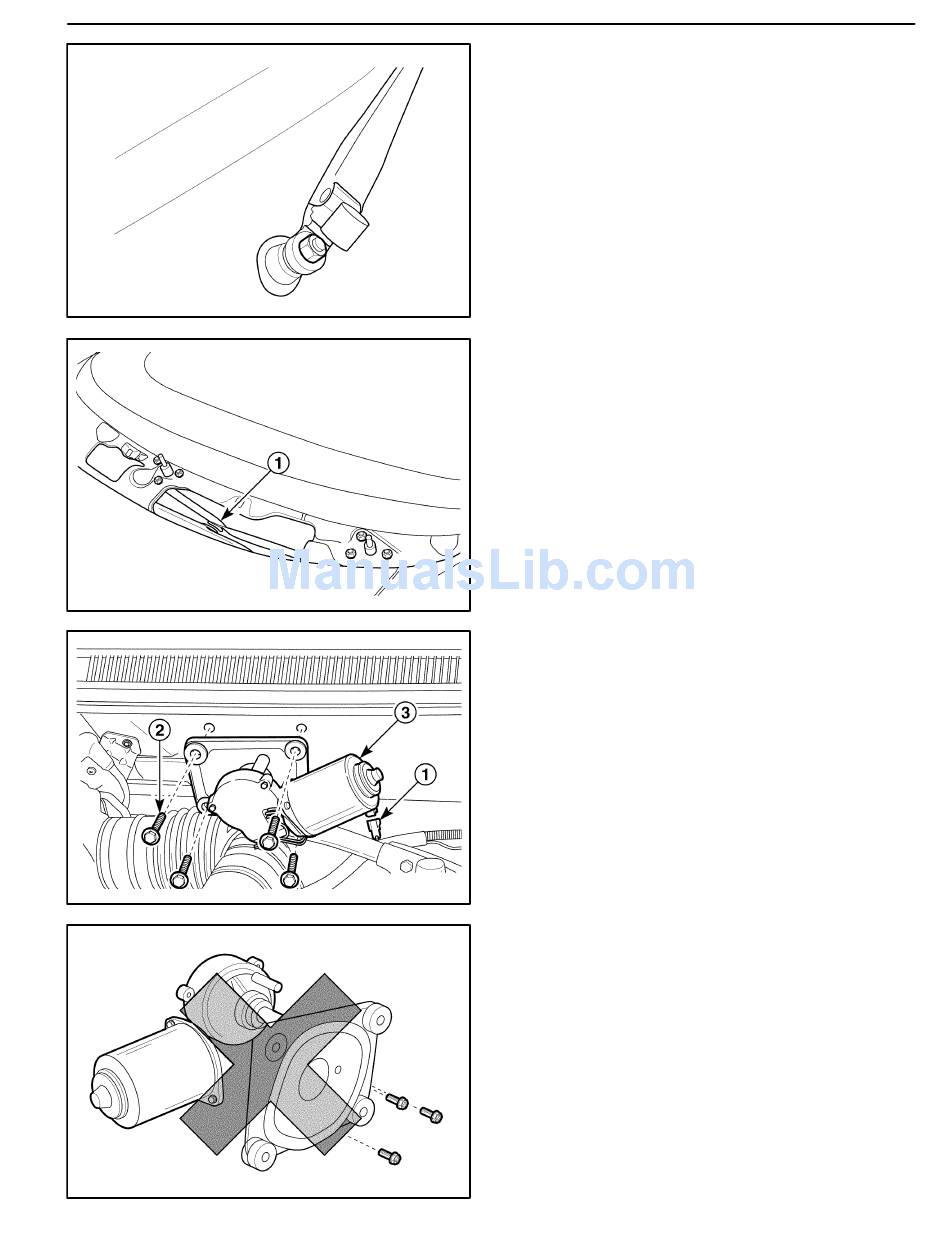

Installation Procedure
1. Install the rear wiper arm with the nut.
2. Install the cap.
3. Install the wiper blade. Refer to "Windshield Wiper
Blade" in this section.
4. Install the washer nozzle to the wiper arm. Refer to
"Rear Washer Nozzle" in this section.
D109D522

WINDSHIELD WIPER MOTOR

(Left–Hand Drive Shown, Right–Hand
Drive Similar)
Removal Procedure
1. Disconnect the negative battery cable.
2. Remove the windshield wiper arm. Refer to "Wind-
shield Wiper Arm" in this section.
3. Remove the cowl vent grille. Refer to Section 9R,
Body Front End.
4. Separate the wiper motor from the wiper linkage.
D Remove the wiper linkage ball from the wiper linka-
ge (1).
D109D523
5. Remove the wiper motor from the engine room.
D Disconnect the electrical connector (1).
D Remove the bolts (2).
D Remove the wiper motor assembly (3).
D109D524
Caution: Because the wiper motor link plate is
fixed, do not separate the wiper motor from the
bracket.
D109D525
