Daewoo MATIZ Service Manual page 867

8B – 40 SUPPLEMENTAL INFLATABLE RESTRAINTS (SIR)
PASSENGER PRETENSIONER CIRCUIT, RESISTANCE TOO LOW
Circuit Description
When the ignition switch is turned ON, the sensing and
diagnostic module (SDM) will perform tests to diagnose
any malfunctions within itself.
After passing these tests, the SDM will check the
passenger pretensioner circuit. The SDM allows a very
small amount of current to flow through the circuit. The
SDM monitors the circuit resistance during this check.
DTC 14 Will Set When
D The combined resistance of the passenger preten-
sioner module, the harness wiring, and the connector
contacts is below a specified value, as in a short cir-
cuit between the wires to the passenger airbag mod-
ule.
DIAGNOSTIC TROUBLE CODE (DTC) 14
Short Circuit
Test Description
Caution: Before testing, disconnect the negative
battery cable. Wait 1 minute for the SDM capacitor
to discharge. The capacitor supplies reserve power
to deploy the airbags, even if the battery is discon-
nected. Unintentional deployment of the airbags
can cause injury.
Caution: Never measure the resistance of an airbag
module. If the anti-deployment shorting bar on the
module side of the connector is not working prop-
erly, the meter's battery could deploy the airbag and
cause injury.

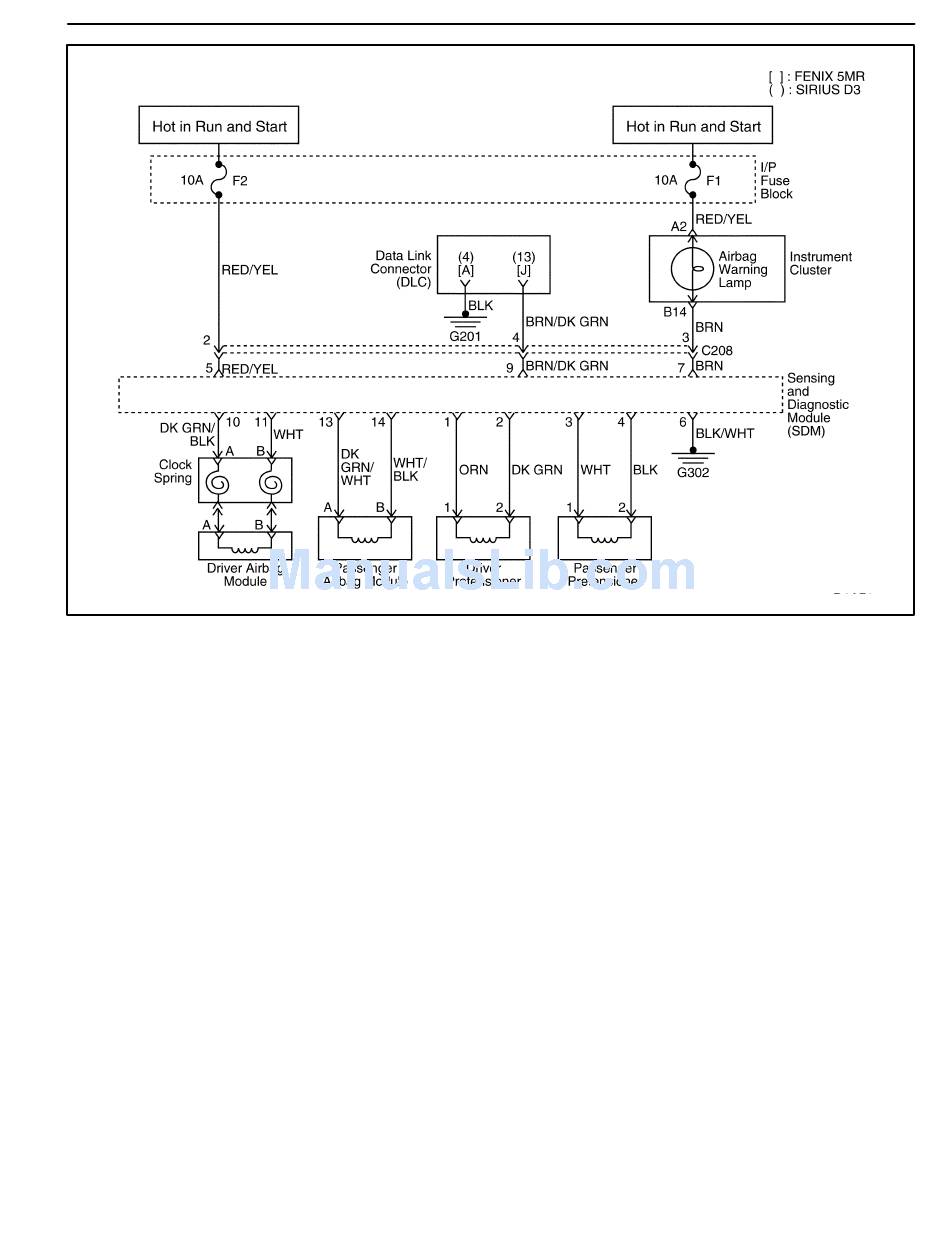

D1AB302B
DAEWOO M-150 BL2
