Assembly Procedure
1. Install in the reverse order of removal.
9-12 NSm
2. Install the bolts / nuts.
Tighten
Tighten the starter motor terminal M nut to 9–12 NSm
(80–106 lb-in) (a).
Tighten the through-bolts to 4–6 NSm (35–53 lb-in)
(b).
4-6 NSm
D12E720A

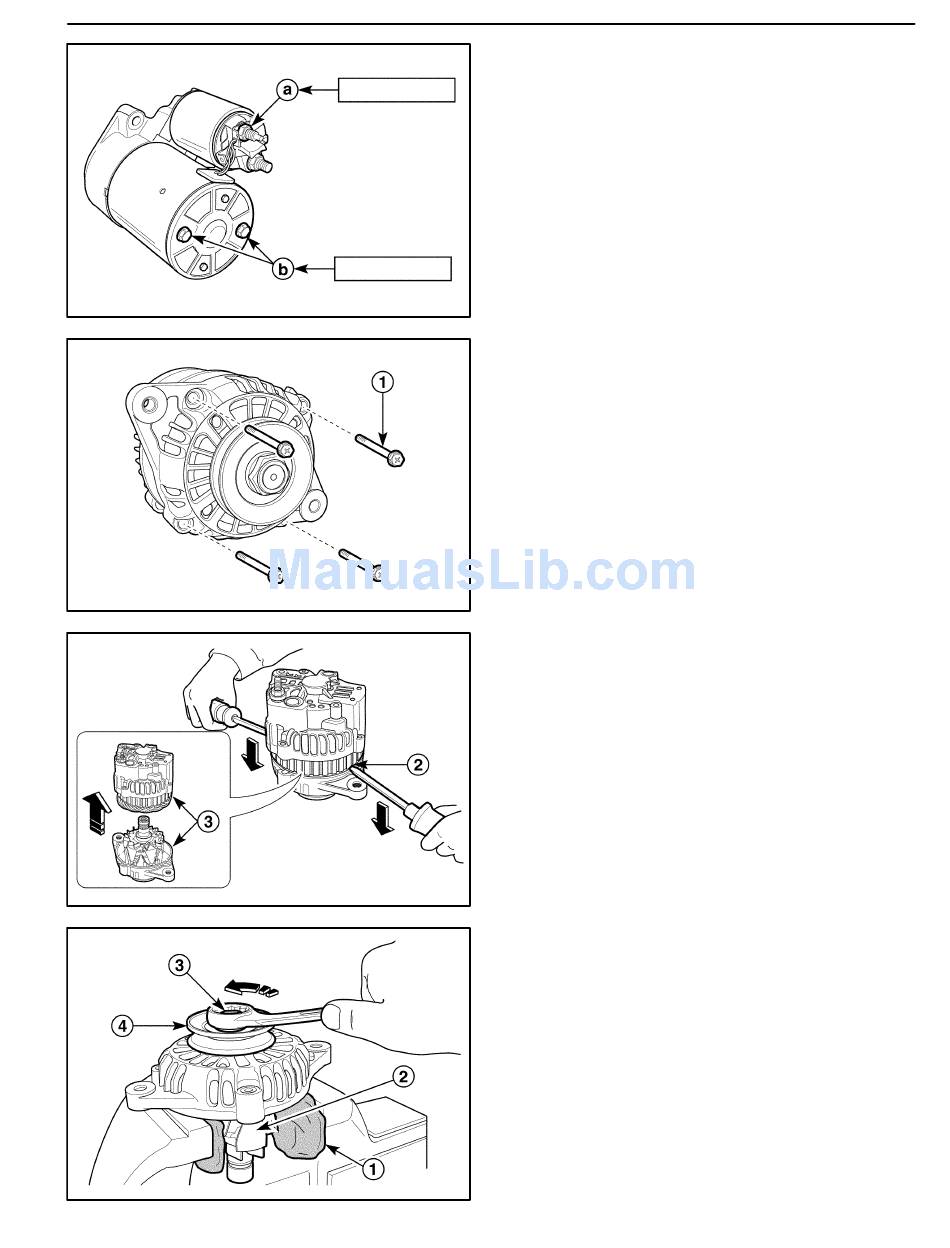

GENERATOR (A-TYPE : MANDO)
Disassembly Procedure
1. Remove the generator. Refer to "Generator" in this
section.
2. Remove the front bracket and rear bracket.
D Remove the through-bolts (1).
D102E721
D Pry front bracket downwards using a screwdriver
D Separate the front bracket and rear bracket (3).
D102E722
3. Remove the pulley and rotor assembly from the front
bracket.
D Cover the rotor with the cloth (1).
D Place the pulley upwards and vice the rotor (2).
D Remove the pulley nut (3).
D Remove the pulley (4).
D102E723
(2).
