9D – 6 WIPERS/WASHER SYSTEMS
REPAIR INSTRUCTIONS
ON–VEHICLE SERVICE
D109D519
D109D520
D109D521

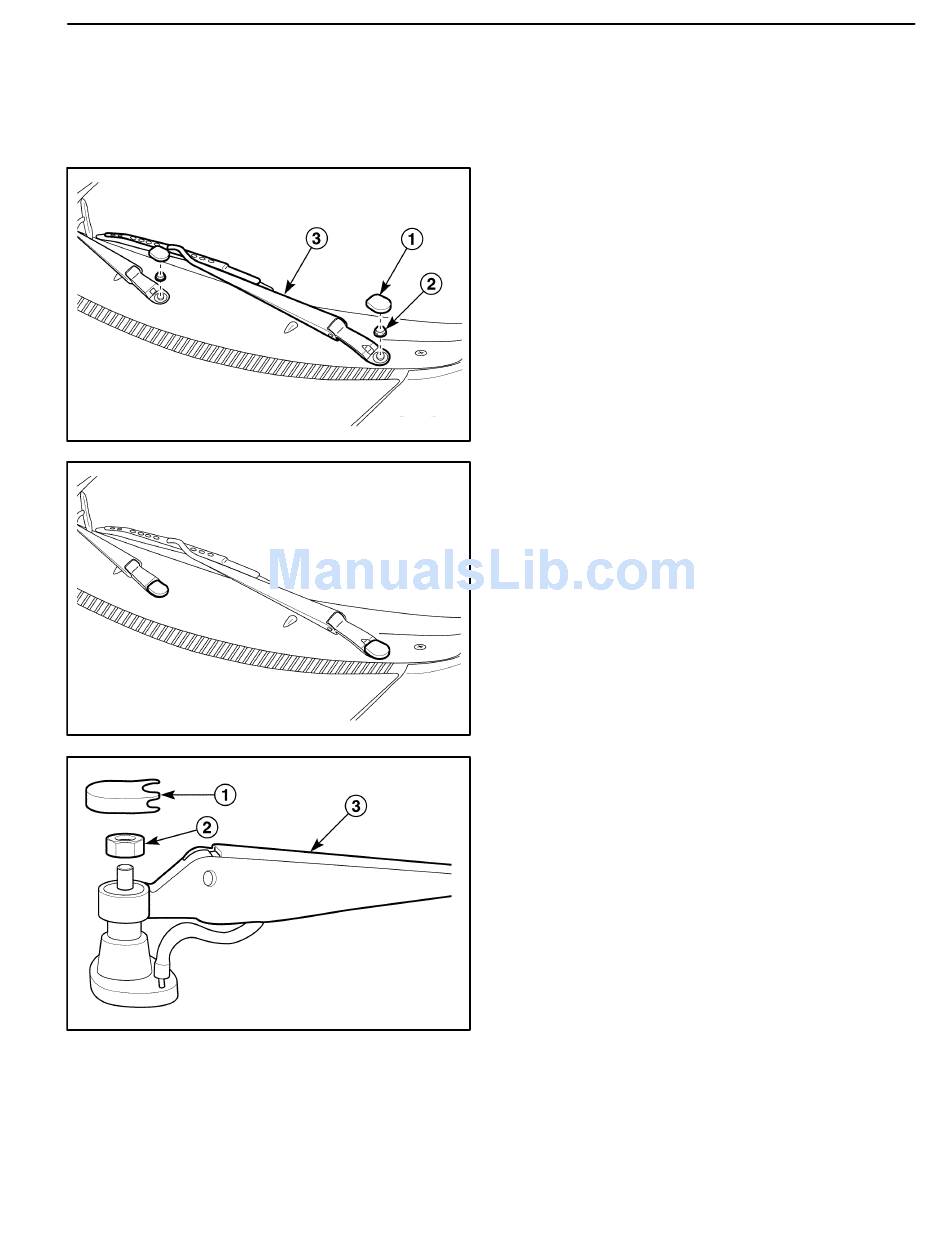

WINDSHIELD WIPER ARM
(Left–Hand Drive Shown, Right–Hand
Drive Similar)
Removal Procedure
1. Remove the wiper arm.
D Remove the cap (1).
D Remove the nut (2).
D Remove the wiper arm (3).
Installation Procedure
1. Install the wiper arm with the nut.
2. Install the cap.
REAR WINDOW WIPER ARM
Removal Procedure
1. Remove the washer nozzle from the wiper arm. Refer
to "Rear Washer Nozzle" in this section.
2. Remove the wiper blade. Refer to "Windshield Wiper
Blade" in this section.
3. Remove the wiper arm.
D Remove the cap (1).
D Remove the nut (2).
D Remove the wiper arm (3).
DAEWOO M-150 BL2
