9E – 12 INSTRUMENTATION/DRIVER INFORMATION
Installation Procedure
1. Connect the electrical connector and the speedom-
eter cable.

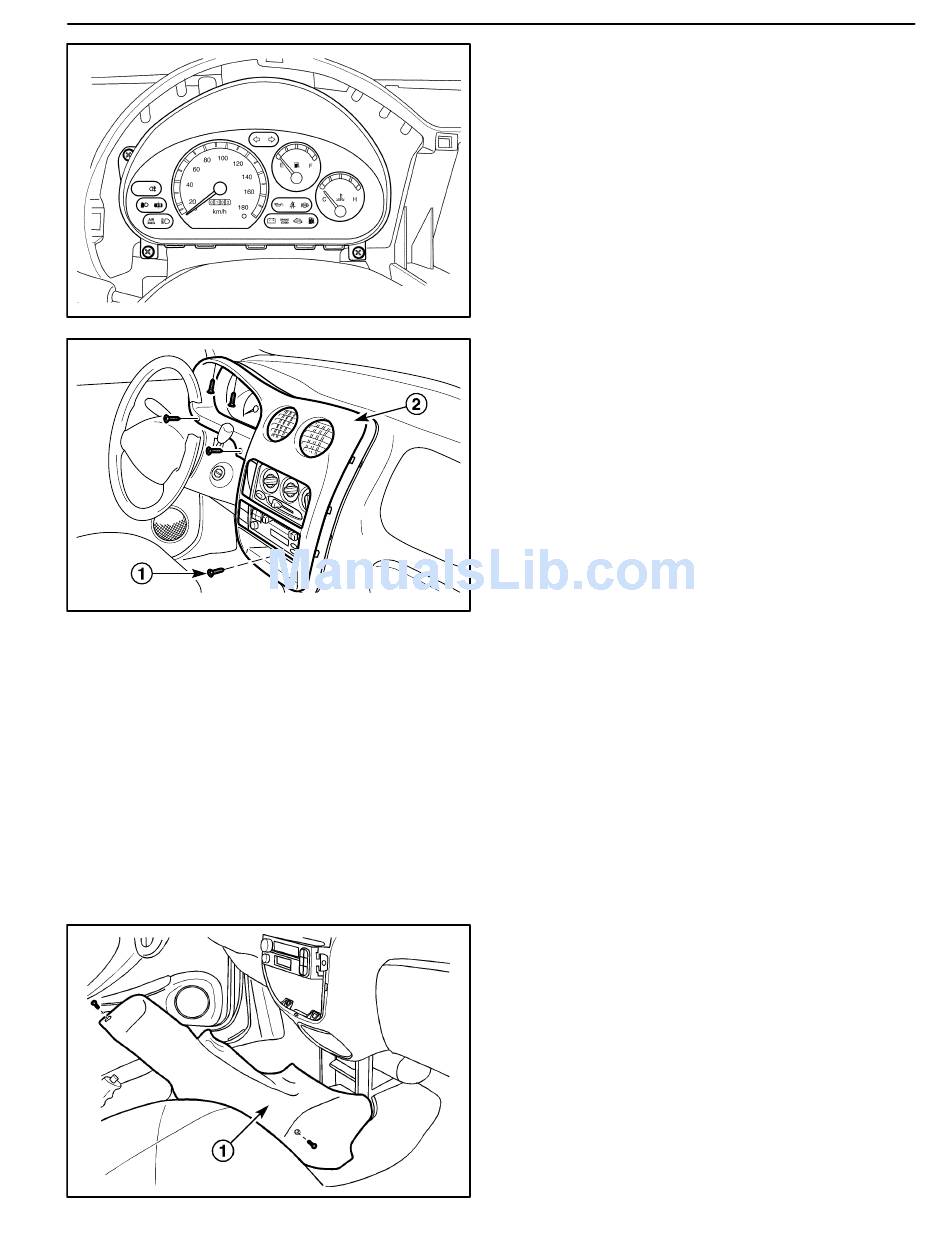

2. Install the instrument cluster assembly to instrument
panel with screws.
3. Install the instrument cluster trim panel to the instru-
ment panel. Refer to "Instrument Cluster Trim Pan-
el" in this section.
4. Connect the negative battery cable.
D19B515A

INSTRUMENT PANEL

(Left–Hand Drive Shown, Right–Hand
Drive Similar)
Removal Procedure
1. Disconnect the negative battery cable.
2. Remove the driver's airbag module from the steer-
ing wheel. Refer to Section 8B, Supplemental Inflat-
able Restraints (SIR) (For the vehicle equipped with
the airbag).
3. Remove the steering wheel from the steering col-
umn. Refer to Section 6E, Steering Wheel and Col-
umn.
D109B516
4. Remove the steering column trim cover. Refer to
Section 6E, Steering Wheel and Column.
5. Remove the signal lamp switch and the wiper
switch. Refer to Section 6E, Steering Wheel and
Column.
6. Pry off the A–pillar trim panels. Refer to Section 9G,
Interior Trim.
7. Remove the instrument cluster trim panel from the
instrument panel.
D Remove the screws (1)
D Using a flathead screwdriver, remove the instru-
ment cluster trim panel (2).
Notice: To prevent the instrument panel damage, cover
the flathead screwdriver with a soft cloth.
8. Remove the hood latch release lever from the in-
strument panel. Refer to Section 9R, Body Front
End.
9. Remove the glove box assembly from the instru-
ment panel. Refer to "Glove Box" in this section.
10. Remove the passenger's airbag module from the in-
strument panel. Refer to Section 8B, Supplemental
Inflatable Restraints (SIR) (For vehicle equipped
with the airbag).
11. Put aside the floor console after removing the
screws (1).
D109B517
DAEWOO M-150 BL2
