Daewoo MATIZ Service Manual page 801

MANUAL CONTROL HEATING, VENTILATION, AND AIR CONDITIONING SYSTEM 7B – 19
DAEWOO M-150 BL2

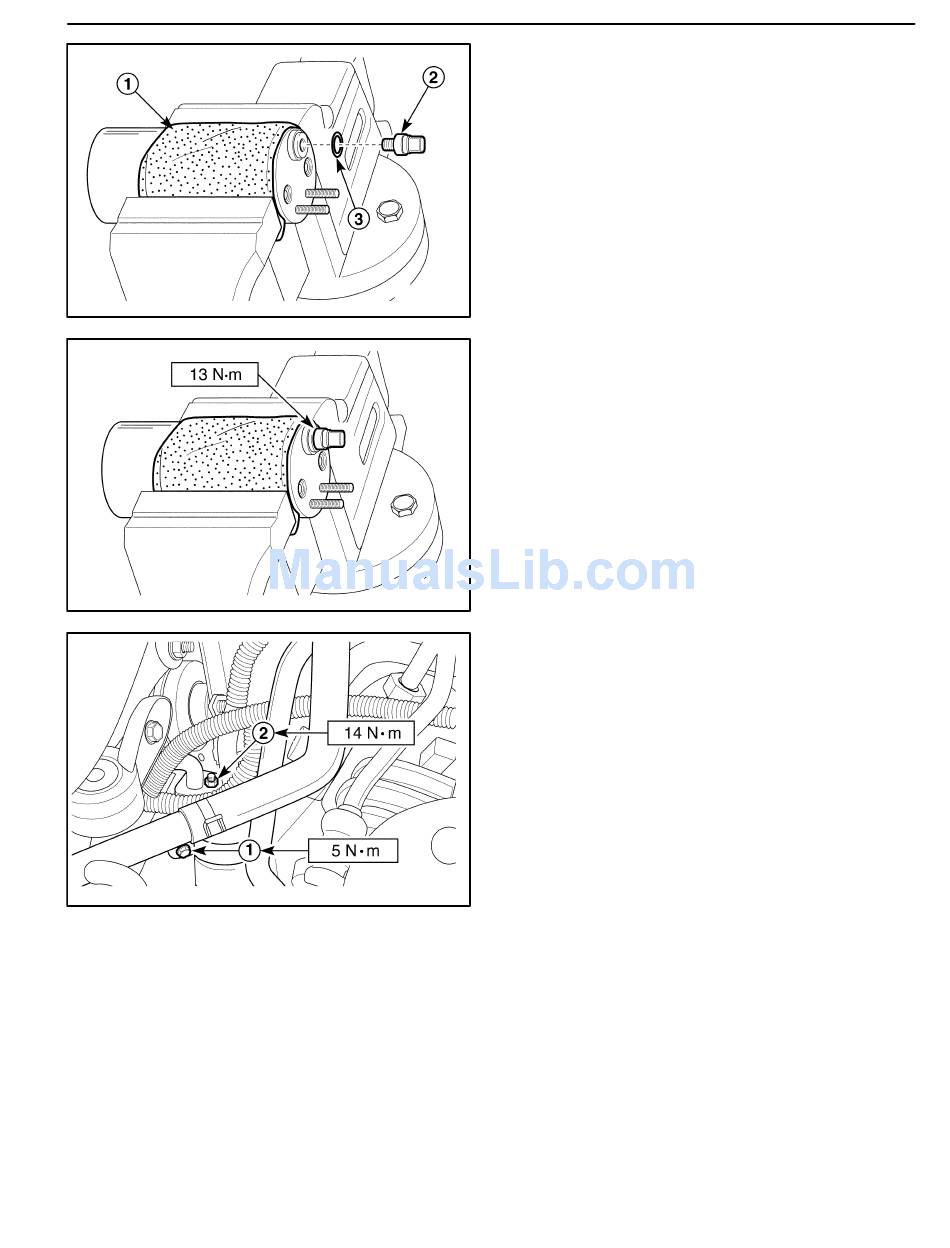

4. Remove the dual cut switch.
D With the receiver dryer clothed, vise the receiver
dryer (1).
D Remove the dual cut switch (2).
D Discard the O–ring (3).
D18B504A
Installation Procedure
1. Install the new O–ring.
2. Install the dual cut switch.
Tighten the dual cut switch to 13 NSm (115 lb-in).
D18B505B
3. Install the receiver dryer.
D Install the new O–rings.
D Install the bracket bolt (1).
Tighten
Tighten the bracket bolt to 5 NSm (44 lb-in).
D Install the receiver dryer flange nuts (2).
Tighten
Tighten the receiver dryer flange nut to 14 NSm (10.5
lb-ft).
D Connect the dual cut switch connector.
4. Install the front bumper fascia. Refer to Section 9O,
D18B506B
Bumpers and Fascias.
5. Evacuate and recharge the system. Refer to "Dis-
charging, Adding Oil, Evacuating, and Charging Pro-
cedures for A/C System" in this section.
