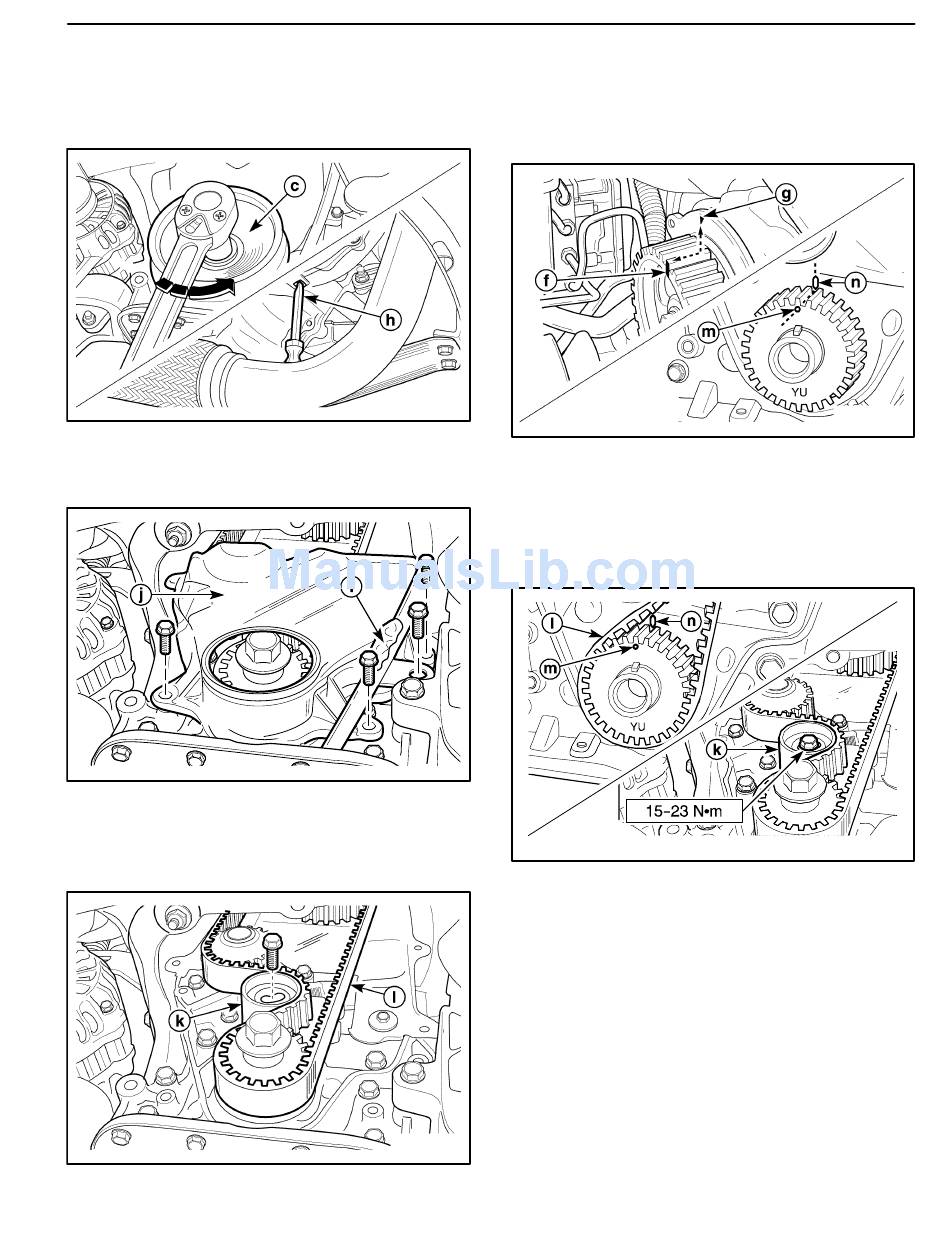

Adjust the valve timing in the following procedures:
1. Loosen the bolt and remove the timing belt pulley (c).
In loosening the bolt, use the driver (h) in the picture
shown.
2. Remove the oil level gauge guide tube (i) and the tim-
ing belt front lower cover (j).
3. Remove the timing belt tensioner (k) and the timing
belt (l).
DAEWOO M-150 BL2
SOHC ENGINE MECANICAL 1B – 13
4. Using the bolt, turn the crankshaft clockwise to align
the mark (m) on the crankshaft sprocket with the
pointer (n) on the oil pump housing. Then, turn the
camshaft to align the notch (f) with the pointer (g).
D102B315
5. Install the timing belt (l) and the tensioner (k). (Do not
tighten the tensioner bolt completely.)
Turning the crankshaft clockwise twice, align the
mark (m) with the pointer (n) and tighten the tensioner
bolt to 15–23 NSm (11–17 lb-ft).
D102B316
6. Install all removed parts.
D102B317
D102B318
D12B319A
