DAEWOO M-150 BL2
INSTRUMENTATION/DRIVER INFORMATION 9E – 9

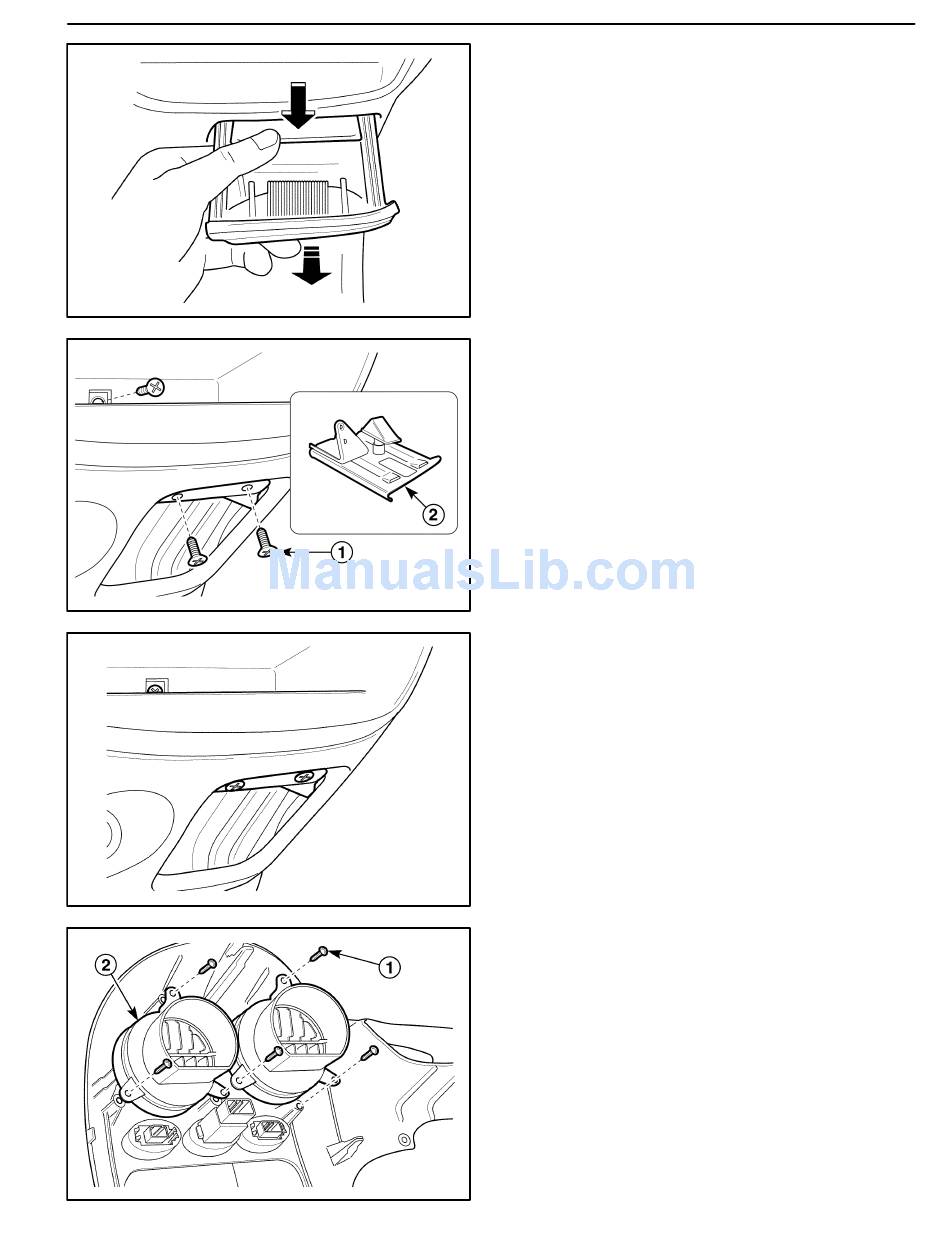

ASHTRAY

(Left–Hand Drive Shown, Right–Hand
Drive Similar)
Removal Procedure
1. Remove the ashtray from the ashtray bracket.
D Pull off the ashtray by pressing the upper button.
D109B504
2. Remove the ashtray bracket from the instrument pan-
el.
D Remove the screws (1).
D Remove the ashtray bracket (3).
D19B505A
Installation Procedure
1. Install the ashtray bracket with the screws.
2. Install the ashtray.
D109B506

INSTRUMENT CLUSTER TRIM PANEL

VENTS
(Left–Hand Drive Shown, Right–Hand
Drive Similar)
Removal Procedure
1. Remove the instrument cluster trim panel from the in-
strument panel. Refer to "Instrument Cluster Trim
Panel" in this section.
2. Remove the vent from the instrument cluster trim
panel.
D Remove the screws (1).
D Remove the vents (2).
D109B507
