Rear Drum Brakes - Daewoo MATIZ Service Manual

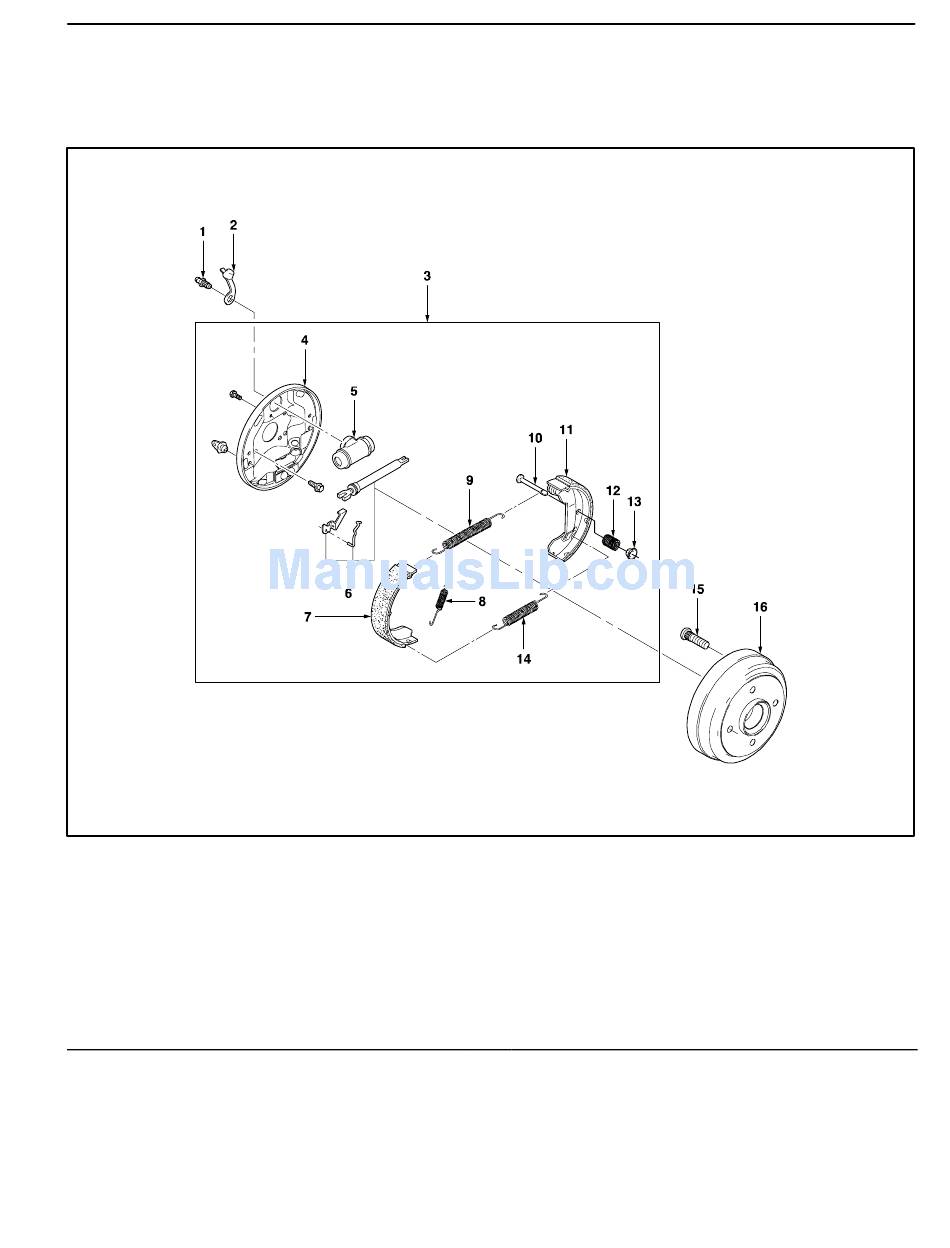

1. Bleeder Screw
2. Bleeder Screw
3. Rear Brake Assembly
4. Rear Brake Plate
5. Wheel Cylinder
6. Strut Assembly
7. Brake Leading Shoe
8. Middle Return Spring
DAEWOO M-150 BL2
COMPONENT LOCATOR

REAR DRUM BRAKES

REAR DRUM BRAKES 4E – 3
9. Upper Return Spring
10. Brake Shoe Retain Spring Pin
11. Trailing Shoe
12. Brake Shoe Retain Spring
13. Brake Shoe Retain Spring Cap
14. Lower Return Spring
15. Hub Bolt
16. Rear Brake Drum
D107C401
