Circuit Description
When the ignition switch is turned ON, the sensing and
diagnostic module (SDM) will perform tests to diagnose
malfunctions within itself.
DTC 31 Will Set When
D The SDM does not pass the internal tests.
Step
1. Disconnect the negative battery cable.
1
2. Replace the SDM.
Is the repair complete?
Circuit Description
When the ignition switch is turned ON, the sensing and
diagnostic module (SDM) will perform tests to diagnose
any malfunctions within itself.
DTC 32 Will Set When
D The SDM has previously detected a crash.
Step
1. Disconnect the negative battery cable.
1
2. Replace the SDM.
Is the repair complete?
DAEWOO M-150 BL2
SUPPLEMENTAL INFLATABLE RESTRAINTS (SIR) 8B – 63
DIAGNOSTIC TROUBLE CODE (DTC) 31
SDM INTERNAL FAULT
DTC 31 – SDM Internal Fault
Action
DIAGNOSTIC TROUBLE CODE (DTC) 32
SDM CRASH RECORDED
DTC 32 – SDM Crash Recorded
Action
D110B303
Test Description
Caution: Before testing, disconnect the negative
battery cable. Wait 1 minute for the SDM capacitor
to discharge. The capacitor supplies reserve power
to deploy the airbags, even if the battery is discon-
nected. Unintentional deployment of the airbags
can cause injury.
Value(s)
Diagnostic
System Check
Test Description
Caution: Before testing, disconnect the negative
battery cable. Wait 1 minute for the SDM capacitor
to discharge. The capacitor supplies reserve power
to deploy the airbags, even if the battery is discon-
nected. Unintentional deployment of the airbags
can cause injury.
Value(s)
Diagnostic
System Check
Caution: Do not use these illustrations to trouble-
shoot without consulting the diagnostic trouble
code (DTC) charts. The DTC charts give additional
safety precautions and detailed instructions for
each test. Failure to follow the proper precautions
can result in injury from unintended airbag deploy-
ment.

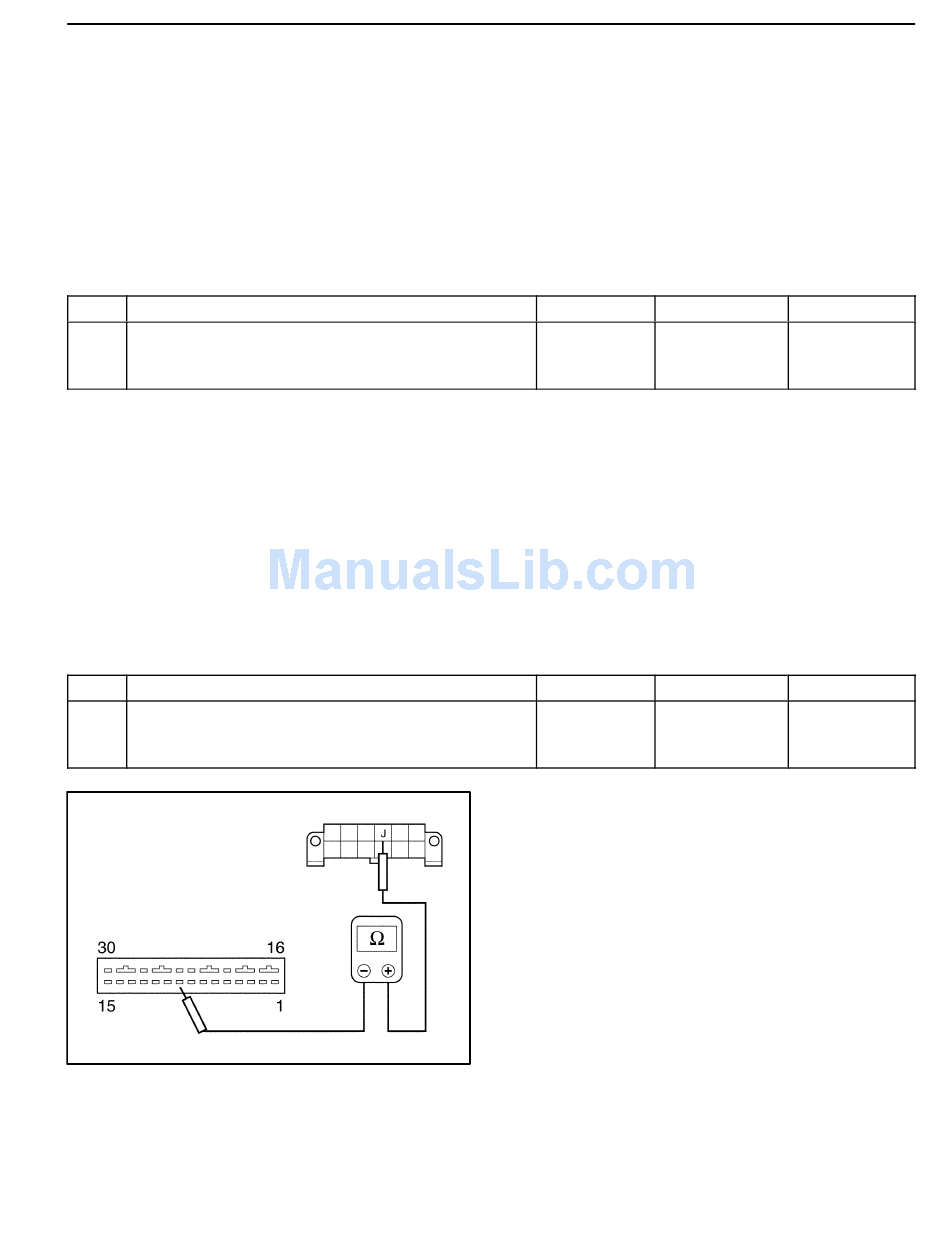

DIAGNOSTIC ILLUSTRATION 1

Checking the continuity between the terminal 9 of the
sensing and diagnostic module and the terminal J (13) of
the assembly line diagnostic link.
Yes
No
Go to
Yes
No
Go to
