50 01

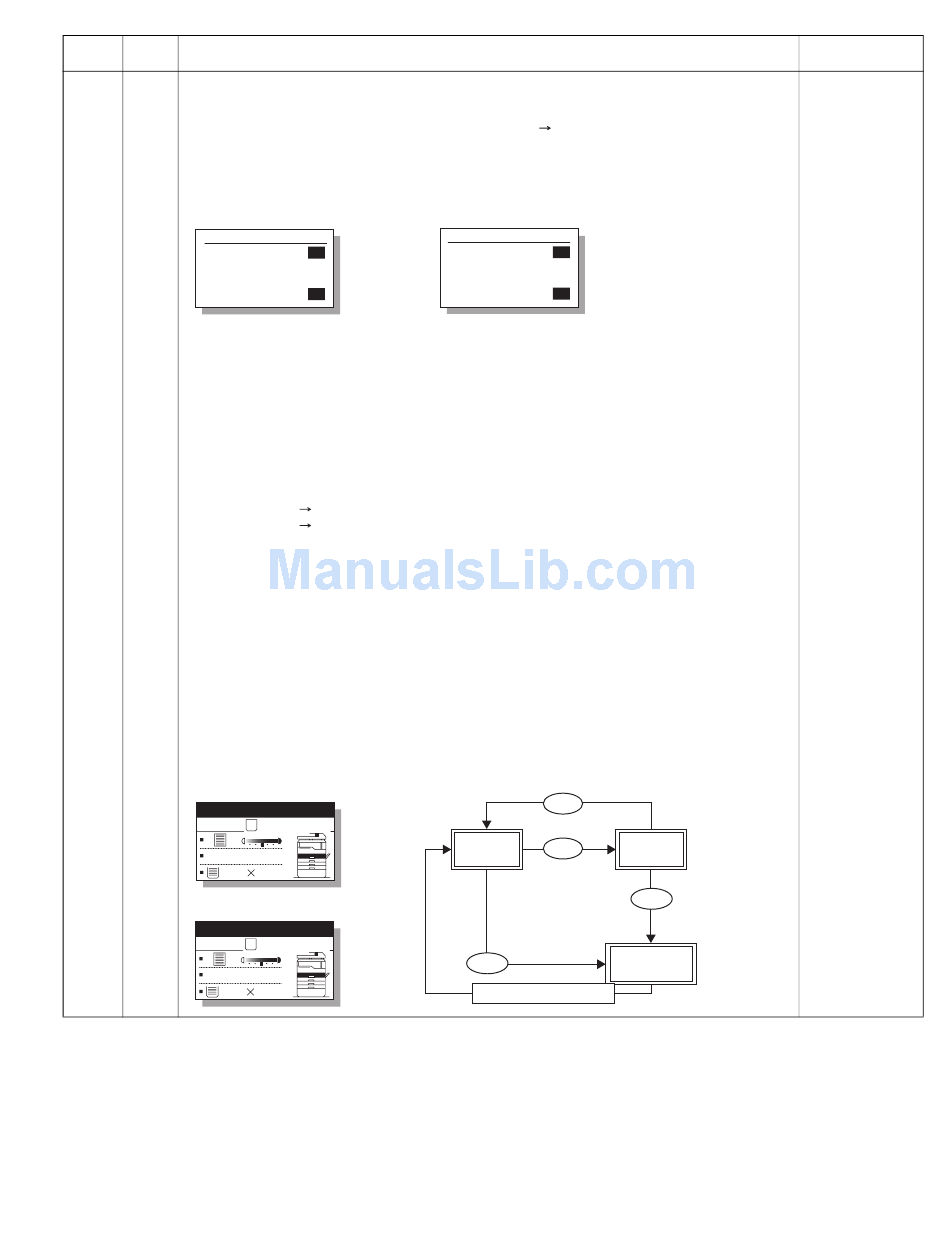

Image lead edge adjustment

Used to adjust the following items related to the lead edge adjustment.
1.Print start position (Offset between output image and paper
2.Image lead edge void (Margin on the output image lead edge)
3.Document scanning start position (Image scanning start position in the sub scanning direction)
When this simulation is executed, the selection window of the adjustment items and the set value are
displayed.
(Adjustment item selection window)
Sim50-1 LEAD EDGE
1:TRAY1
2:TRAY2
3:MFT
1/2 [
Display text
1:TRAY1
2:TRAY2 (*)
3:MFT
4:DEN-A
5:RRC-A
6:DEN-B
Note 1: Items marked with (*) are displayed when TRAY2 and following options are not installed.
Note 2: When executing an adjustment copy from the manual paper feed tray, set the following paper.
AB series
Inch series
Note 3: When the adjustment value of the print start position adjustment is increased by 1, the ON timing of
the resist roller is delayed and the print result is shifted to the lead edge by 0.1mm.
Note 4: When the adjustment value of the image scanning start position is increased by 1, the scanning
start position is shifted to the home position by about 0.1mm, increasing the image loss amount.
Note 5: When the print start position (TRAY1) is changed, the print start positions (TRAY2 - TRAY4) and the
print start position (MULTI BYPASS) are also changed accordingly.
The adjustment value is in the range of 1 - 99. (Default: 50)
Select an adjustment item (mode) with the cross key, and enter the set value with 10-key.
When [OK] key is pressed, the entered value is saved to the EEPROM and the machine shifts to the copy
execution window.
After completion of copying, the machine returns to the adjustment value input window.
When [START] key is pressed instead of [OK] key, the machine shifts to the copy execution window and
performs copying.
(Copy start window)
Ready to copy.
S
100%
8 1/2 11
(Copy execution window)
Copies in progress.
S
100%
8 1/2 11
50
50
50
1- 99] 50
:Adjustment mode
:Print start position (TRAY1)
:Print start position (TRAY2 - TRAY4)
:Print start position (MULTI BYPASS)
:Image lead edge void amount
:Document scanning start position
:Image rear edge void amount
A3 paper
Double Letter paper
AR-M207 M165 M162 SIMULATIONS 7-40
Contents
Adjusted for each tray.)
Sim50-1 LEAD EDGE
4:DEN-A 50
5:RRC-A 50
6:DEN-B 50
2/2 [ 1- 99] 50
BACK
Adjustment
Copy start
OK
item selection
window
Copy execution
START
End of copy execution
window
START
window
Remark
