5.8.7

Definition of MIG/MAG welding tasks

This range of machines feature simple operation with a very wide range of functions.
• 128 of 256 JOBs (welding tasks, consisting of welding process, material type, wire diameter and
shielding gas type) are already pre-defined.
• Simple JOB selection from a list of pre-defined JOBs (sticker on the machine).
• The required process parameters are calculated by the system depending on the operating point
specified (single-dial operation via wire speed rotary dial).
• Additional parameters can be modified as required in the configuration menu on the control or using
the PC300.NET welding parameter software.

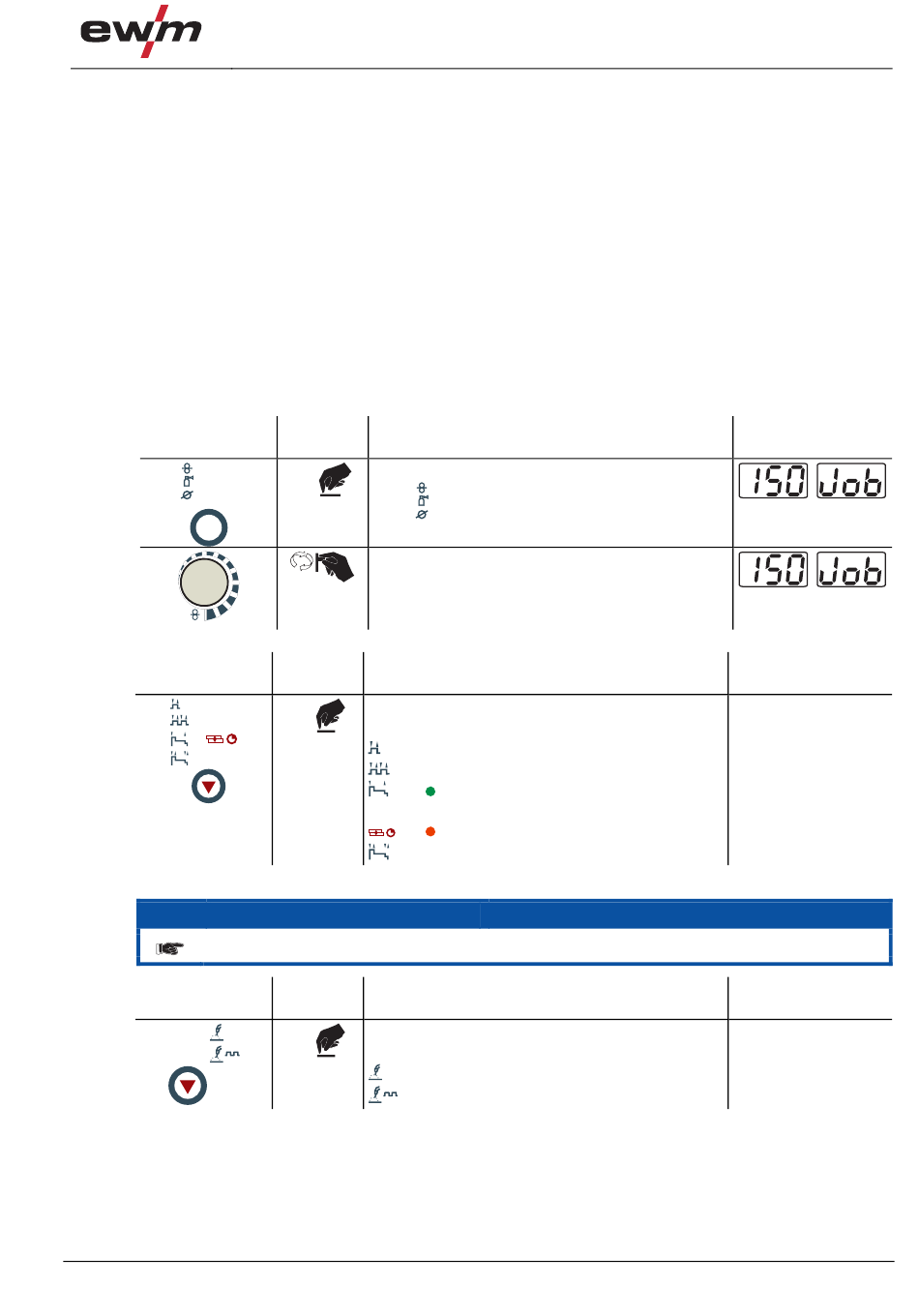

5.8.8

welding task selection

5.8.8.1

Basic welding parameters

• Select JOB (welding task) using the JOB list.
On decompact welding systems, the "JOB list" sticker is located on the inside on the wire feed unit
cover; with compact machines it is on the right-hand power source cover.
It is only possible to change the JOB number when no welding current is flowing.
Operating
element
Material
Gas
Wire
JOB-
LIST
m/min
5.8.8.2

Operating mode

Operating
element
5.8.8.3

Welding type

Pulse arc welding machines only.
Operating
element
099-005033-EW501
15.01.2010
Action Result
Select JOB list
Material
1 x
(LED
Gas
Wire
Set JOB number.
Wait 3s until the setting has been adopted.
Action Result
Select operating mode
n x The LED displays the selected operating mode.
Non-latched operation
Latched operation
Green
mode
Red Spot operating mode
Special latched mode
Action Result
Select welding type
n x The signal light indicates the selection.
Standard MIG/MAG welding
Pulse arc MIG/MAG welding
Design and function
is on)
Special non-latched
NOTE
MIG/MAG welding
Display
Display
No change
Display
No change
37
