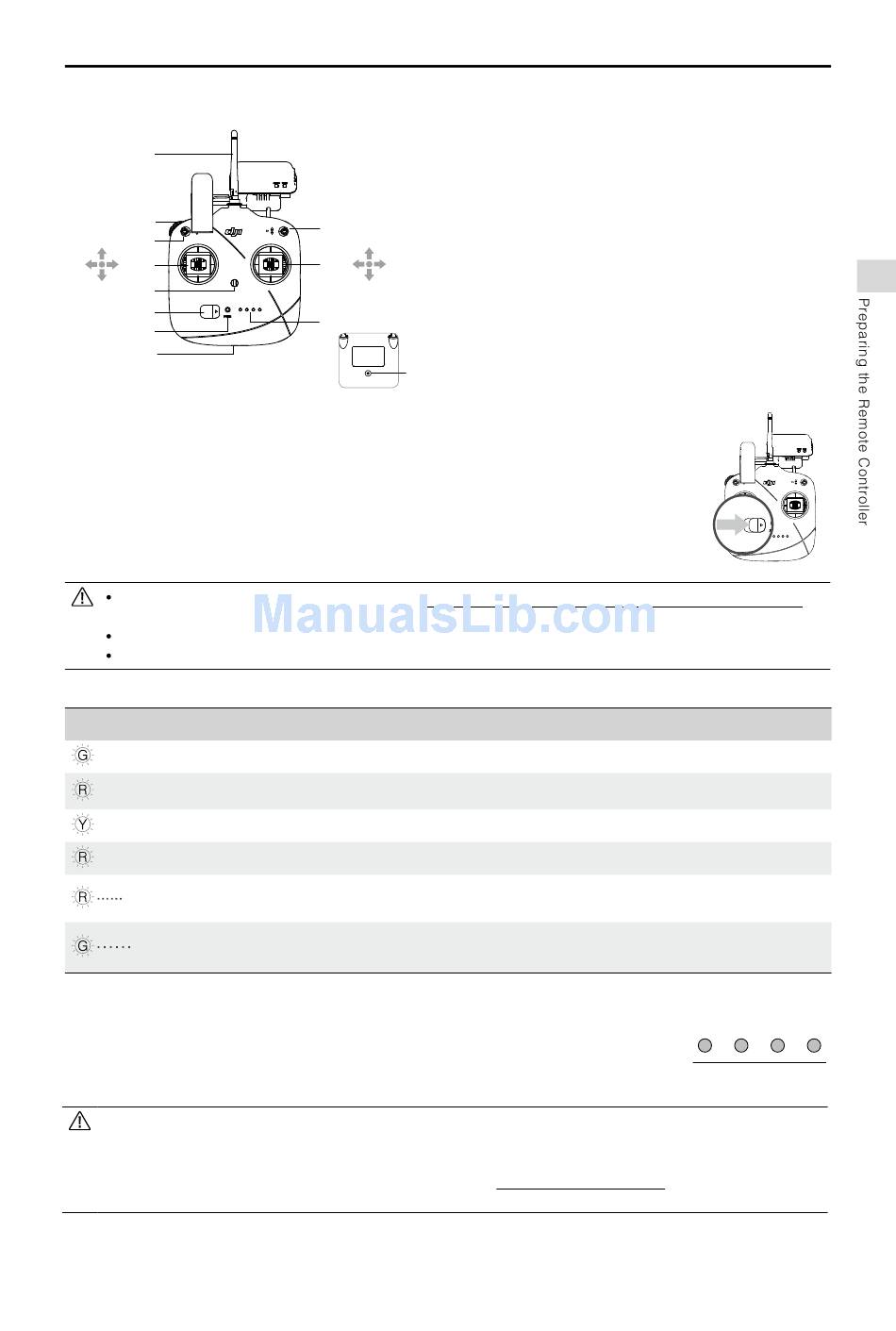

5.1 The Remote Controller

[ 1 ]
[ 2 ]
[ 4 ]
J3
[ 6 ]
J4
[ 7 ]
[ 8 ]
[ 9 ]
[ 11 ]
Figure 24

5.2 Power on the Remote Controller

(1) Set S1 and S2 switches to the upper most position and place all sticks in the mid-point.
(2) Toggle power switch to the right to switch on.
(3) There will be a power on indicator beep. If the remote controller is set to be CE compliant, then
there will be one beep, while the FCC compliant version will emit two beeps. The battery level
indicator displays the current battery level. The indicator will blink green quickly, indicating the
remote controller and receiver are linking. Once fully linked, the power indicator will change to
a solid green.
If the low voltage warning alert sounds (refer to Remote Controller Power LED Status Information (Page 17) for
details), please recharge the battery as soon as possible.
Using the incorrect type of charging cable may cause damage.
Following long term storage, recharge the battery before use.
5.3 Remote Controller Power LED Status Information
Power LED Indicator
— Solid Green
— Solid Red
— Solid Yellow
— Solid Red
Quick Red lashing
Slow Green lashing

5.4 Battery Level Indicator

Built-in LiPo Battery: The remote controller includes a rechargeable LiPo battery with
a capacity of 2000mAh. You can monitor the current battery level using the LED
indicators on the front panel of the remote controller as the igure shown:
The remote controller will show a blinking LED and sound an alert when the voltage drops below 3.45V, then
automatically power off after 3 seconds. This process will repeat even if you power cycle the remote controller. If
this low voltage warning occurs during light, the remote controller will automatically power off, causing the aircraft
to enter Failsafe mode, which cannot be interrupted (refer to Failsafe Function (Page27) for details). It is strongly
recommended that you recharge the battery immediately when the 3.45V-3.5V low voltage warning occurs.

5.5 Antenna Orientation

Keep the antennas pointing skyward, perpendicular to the ground for maximum remote controller range during light.
[ 3 ]
J2
[ 5 ]
J1
[ 10 ]
[ 10 ]
[ 11 ]
[ 12 ]
[ 12 ]
Sound Remote Controller Status
None
Functioning normally.
None Charging( remote controller is powered off)
None Remote controller joysticks calibration error, need to be re-calibrate.
BB---BB---BB Low voltage (from 3.5V-3.53V), recharge the remote controller.
Critical low voltage (from 3.45V-3.5V). Recharge the remote
B-B-B......
controller immediately.
Alert will sound after 15 minutes of inactivity. It will stop once you
B--B--B......
start using the remote controller.
[ 1 ]
Antenna
[ 2 ]
Left Dial
[ 3 ]
Switch S1
[ 4 ]
Switch S2 (Reserved)
Right Stick: J1, Roll [left & right],
[ 5 ]
J2, Pitch [front & back]
Left Stick: J3, Throttle [up & down],
[ 6 ]
J4, Yaw [rotation]
Neck Strap Attachment
[ 7 ]
[ 8 ]
Power Switch
[ 9 ]
Power Indicator
Battery Level Indicator
Battery Charge & RC Assistant Port (use the supplied micro-
USB cable to charge or upgrade the remote controller)
Training Port (on back)
©
Assembly and Use
Battery Level Indicator
25％ 50％ 75％ 100％
