Choose between Phantom and Naza-M working modes using Phantom 2 Vision+ Assistant. If using Naza-M
mode, please refer to the NAZA-M V2 Quick Start Manual for related instructions.
Phantom: Flight settings will be selected automatically depending on whether 6 or more satellites have been
found. This mode allows users to conigure the Remote Controller and gain values, and use Failsafe and battery
level warnings.
Naza-M: Flight settings will be identical to the Naza-M V2. Users can choose between GPS, Attitude, or Manual
mode. They can also access advanced settings including Intelligent Orientation Control (IOC). Rear LED Flight
Indicators will display the light status according to the Naza-M indicator.
Ready to Fly: When 6 or more GPS satellites have been found, the Flight Control System will lock its home point
and Rear LED Flight Indicators will blink a slow green (
Ready to Fly (non-GPS): When less than 6 GPS satellites have been found, the Flight Control System will
stabilize itself less than in full Ready to Fly mode and will require more skilled lying. Rear LED Flight Indicators
will blink a slow yellow (

Assembly and Use

Follow the below instructions to prepare for light.

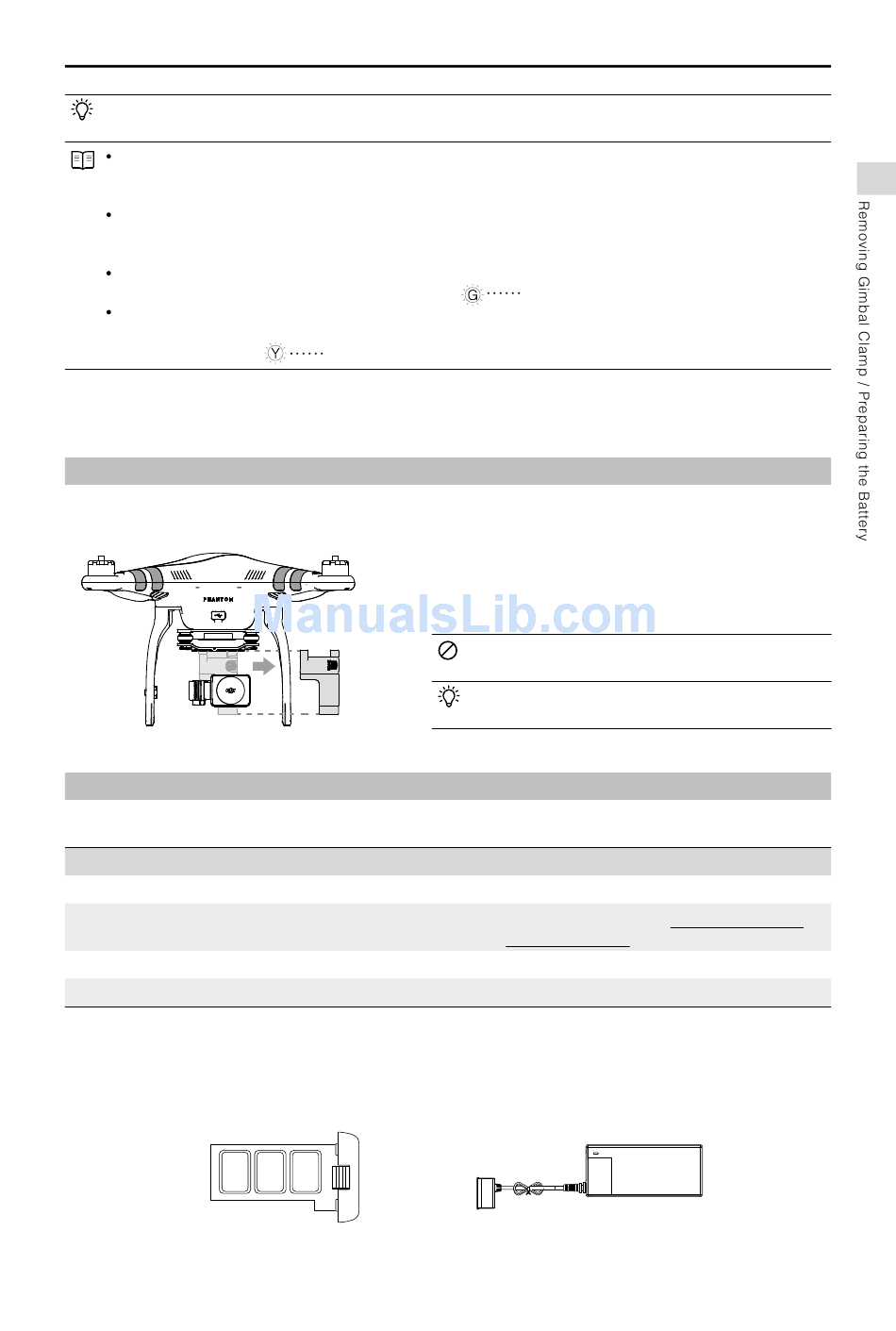

1 Removing Gimbal Clamp

Pull gimbal clamp in the direction indicated to remove.
Figure 2

2 Preparing the Battery

Ensure all related devices are fully charged before lying the Phantom 2 Vision+.
Device
Remote Controller
Range Extender
Aircraft (including gimbal and camera)
Mobile Device

2.1 DJI Smart Flight Battery

This battery has been specially designed for the Phantom 2 series. It has a battery capacity of 5200mAh, voltage of
11.1V and charge-discharge management functionality. It can only be charged with a DJI charger or Phantom 2 Car
Charger.
Smart Flight Battery
).
Charge fully through Micro-USB slot. See Charging the Range
Figure 3
). This mode is ideal for beginners.
To avoid damage to the gimbal, remove Gimbal Clamp
before powering up the Phantom.
Attach the Gimbal Clamp during transportation or long
term storage to avoid damage.
Power supply
2000mAh rechargeable LiPo battery
Extender (Page 20) for details.
DJI Smart Flight Battery.
Fully charge before using the DJI VISION App.
DJI Charger
Figure 4
Assembly and Use
©
2015 DJI. All Rights Reserved.
7
