dji MAVIC 2 ENTERPRISE Manual

Aircraft

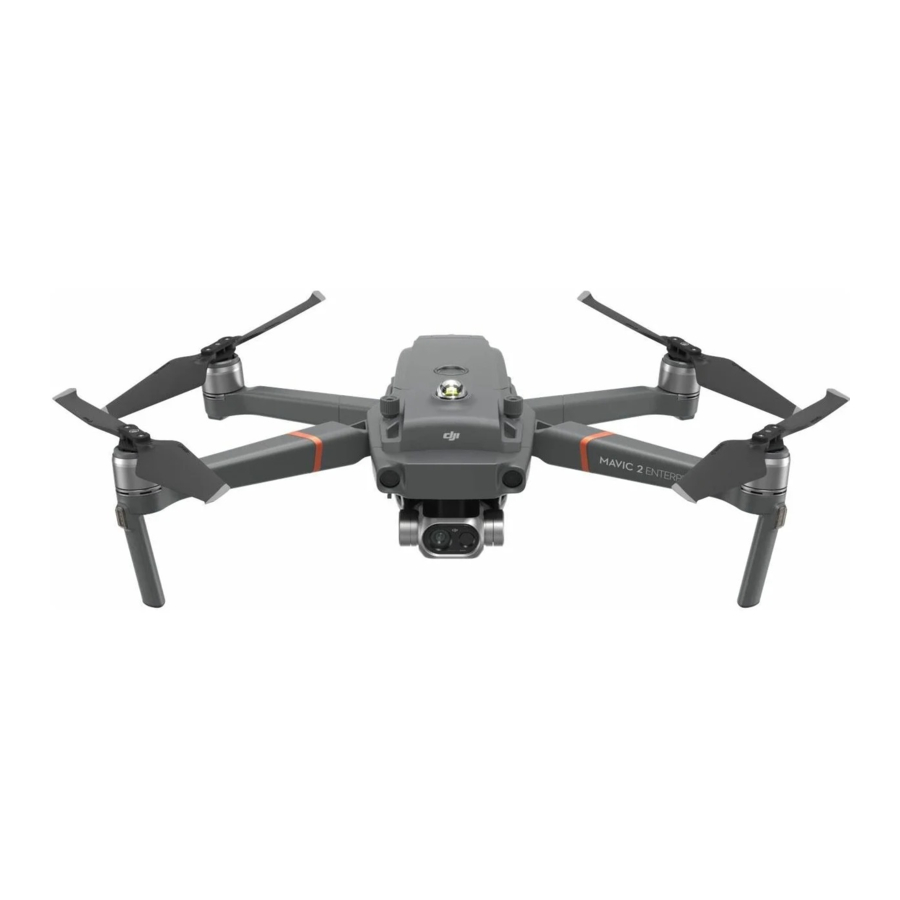

The DJI TM MAVIC TM 2 Enterprise Dual features omnidirectional Vision Systems and Infrared Sensing Systems*, and comes with a fully stabilized 3-axis gimbal camera with a FLIR longwave infrared thermal camera and a visual camera, providing both infrared and visual images simultaneously. DJI signature technologies such as Obstacle Sensing help you fly and capture complex shots effortlessly. Additional features like the built-in AirSense makes you aware of your surrounding airspace, and password protection helps you maintain secure access to your aircraft and protect your data. The Mavic 2 Enterprise also has attachable modular accessories like the M2E Spotlight, M2E Beacon and M2E speaker that are purpose built for various applications. The Mavic 2 Enterprise boasts a maximum flight speed of 44.7 mph (72 kph) and a maximum flight time** of 31 minutes.

1. Gimbal and Camera
   1. Visual Camera
   2. Thermal Camera
2. Forward Vision System
3. Downward Vision System
4. Lateral Vision System
5. Downward Infrared Sensing System
6. Auxiliary Bottom Light
7. MicroSD Card Slot
8. Front LEDs

9. Motors
10. Propellers
11. Antennas
12. Aircraft Status Indicator
13. Upward Infrared Sensing System
14. Backward Vision System
15. Intelligent Flight Battery
16. Battery Level LEDs
17. Power Button

* The Vision Systems and Infrared Sensing Systems are affected by surrounding conditions. Read the Disclaimer and Safety Guidelines, User Manual, and watch the tutorial videos on the official DJI website to learn more. http://www.dji.com/mavic-2-enterprise
** Maximum flight time was tested in an environment with no wind while flying at a consistent 15.5 mph (25 kph). This value is for reference only.

DJI Smart Controller

The DJI Smart Controller is a remote controller built with DJI's long-range transmission technology OCUSYNC^TM 2.0, offering a maximum transmission range of 6.2 mi (10 km) and provides a live HD view from the aircraft's camera. The Smart Controller comes with a number of aircraft and gimbal controls as well as customizable buttons and has a builtin 5.5-inch high-brightness screen with multiple functions such as Bluetooth and GNSS. Connection to the Internet via Wi-Fi is also supported. The Smart Controller has a maximum working time of 2.5 hours*.

1. Antennas
2. Back Button / Function Button
3. Sticks
4. RTH Button
5. Flight Pause Button
6. Flight Mode Switch
7. Status LED
8. Battery Level LEDs
9. 5D Button
10. Power Button
11. Confirm Button / Customizable Button C3
12. Touch Screen
13. USB-C Port
14. Microphone
15. Gimbal Dial

16. Record Button
17. HDMI Port
18. MicroSD Card Slot
19. USB-A Port
20. Focus / Shutter Button
21. Aperture/Shutter Adjustment Dial

22. Air Vent
23. Sticks Storage Slot
24. Customizable Button C2
25. Speaker
26. Customizable Button C1
27. Air Intake

* The Smart Controller is able to reach its maximum transmission distance (FCC) in a wide-open area with no electromagnetic Interference at an altitude of about 400 ft (120 m).
The maximum runtime is tested in a laboratory environment. This value is for reference only.

Watch the Tutorial Videos

Watch the tutorial videos at www.dji.com/mavic-2-enterprise/info#video.

Tutorial videos

Preparing the Aircraft

Remove the gimbal cover from the camera.

Unfold the front arms.

Unfold the rear arms.

Match the propellers to motors.

Press the propellers down firmly and rotate in the lock direction.

Unfolded

Unfold the front arms and the propellers before the rear ones. All arms and propellers must be unfolded before takeoff.

Charging the Batteries

Use the provided charger to fully charge the Intelligent Flight Battery before first use.

Remove the Intelligent Flight Battery

Please use the official 24W USB charger to charge the Smart Controller. When a standard 24W USB charger is not available, it is recommended to use an FCC/ CE certified USB charger rated 12V/2A.

Checking the Battery Levels and Powering On/Off

Press once to check the battery level. Press, then press and hold to turn on/off.

Press once to check the battery level on the LCD screen. Press once, then press and hold to turn on/ off the remote controller.
Install the battery to the aircraft and power it on. Once the battery temperature is lower than 6°C, it will auto heat to maintain a temperature between 8-10°C. Refer to the User Manual for more details.

Preparing the Remote Controller

Lift the antennas

Remove the sticks

Rotate to attach the sticks

The optimal transmission range is shown above. Ensure the antennas are facing towards the aircraft. When the angle between the antennas and the back of the Smart Controller is 80° or 180°, the connection between the Smart Controller and the aircraft can reach its optimal performance. The illustrations above show situations where the operator and aircraft are far away.

• Ensure the control sticks are firmly mounted.
• In real operation, the DJI Pilot app will prompt to warn that the transmission signal is weak, and please adjust the antennas to ensure that the aircraft is back to the optimal transmission range.

Preparing for Takeoff

Power on the remote controller

Power on the aircraft

Launch DJI Pilot

Use a DJI account to activate the aircraft and the Smart Controller. Activation requires an internet connection. Before activating the aircraft in DJI Pilot, power on Internet the Smart Controller and follow the prompts to activate.
Set a password for the aircraft in the DJI Pilot app to ensure secure access and protect your onboard data.

Flight

Before taking off, make sure the Aircraft Status Bar in DJI Pilot displays "Ready to Go".
Ready to Go (GPS)

• Manual Takeoff / Landing
  Combination stick command to start/stop the motors

  Left stick up (slowly) to take off

  Left stick down (slowly) until you touch the ground
  Hold a few seconds to stop the motors

  Only stop motors mid-flight in emergency situations when doing so can reduce the risk of damage or injury. The method to stop the motor can be set in DJI Pilot.
• Remote Controller Operation
  The default flight control is known as Mode 2. The left stick controls the aircraft's altitude and heading, while the right stick controls its forward, backward, left and right movements. The gimbal dial controls the camera's tilt.


• Always set an appropriate RTH altitude before takeoff. When the aircraft is returning to the Home Point, you should guide it with the control sticks.
• Press the Flight Pause button for emergency braking during flight.

Modular Accessories

Fly Safe

Avoid flying over or near obstacles, crowds, high voltage power lines, trees or bodies of water.
DO NOT fly near strong electromagnetic sources such as power lines and base stations as it may affect the onboard compass.

DO NOT use the aircraft in adverse weather conditions such as rain, snow, fog and wind speeds exceeding 10 m/s or 22 mph.

Stay away from the rotating propellers and motors.

Learn more at: http://flysafe.dji.com/no-fly
It's important to understand basic flight guidelines, for the safety of both you and those around you. Don't forget to read the Disclaimer and Safety Guidelines.

Specifications

Aircraft

Gimbal

Thermal Camera

Visual Camera

Smart Controller

Ocusync 2.0

Wi-Fi

Bluetooth

Battery Charger

Intelligent Flight Battery

24W USB Charger

Input	100-240 V~50/60 Hz, Max. 0.8 A
Output	3.6-8 V 3.0 A / 12 V 2.0 A

※ Local regulations in some countries prohibit the use of the 5.8 GHz and 5.2 GHz frequencies and in some regions the 5.2 GHz frequency band is only allowed for indoor use.
※ This content is subject to change without prior notice.
