11 ] Shutter Button; 12 ] Video Recording Button; 13 ] Camera Settings; 2015 Dji. All Rights Reserved - dji PHANTOM 2 VISION+ User Manual

(3) Micro-SD card is damaged.
(4) Connection between the DJI VISION App and camera is broken.

[ 11 ] Shutter Button

Tap to take photos.
Single capture: press once for a single capture.
Continuous capture: press once for 3 or 5 captures.
Timed capture: press once to begin a timed capture, press again to stop.
Shutter button is disabled during video recording.
Capture modes can be reconigured in camera settings; refer to the Camera Settings (Page35).

[ 12 ] Video Recording Button

Start and stop video recording. Tap once to start recording. A red dot will
blink to indicate recording is in progress and a time code will appear in
the top right corner of the preview screen. Press again to stop recording.

[ 13 ] Camera Settings

Tap to open the camera settings menu, refer to Camera Settings (Page 35).

[ 14 ] Hide or Show Flight Parameters

Tap to hide light parameters. Tap again to show.

[15] Rear LED Flight Indicator Status

Displays the aircraft's current light status. Tap for details.

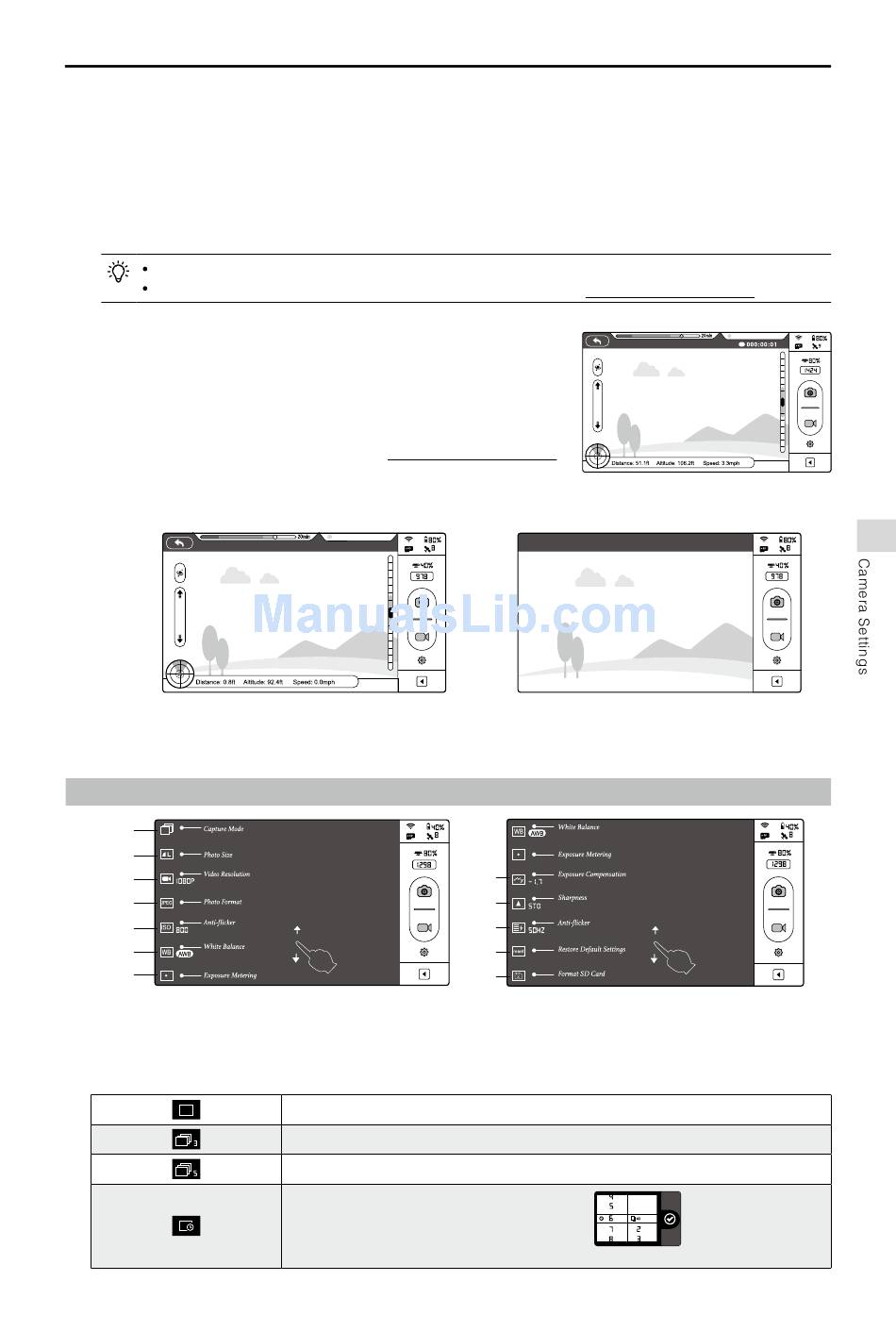

3 Camera Settings
[ 1 ]
[ 2 ]
[ 3 ]
[ 4 ]
[ 5 ]
[ 6 ]
[ 7 ]
[ 1 ] Capture Mode [ 2 ] Photo Size [ 3 ] Video Resolution [ 4 ] Photo Format [ 5 ] ISO [ 6 ] White Balance [ 7 ] Exposure Metering [ 8 ]
Exposure Compensation [ 9 ] Sharpness [ 10 ] Anti-licker [ 11 ] Restore Defaults [ 12 ] Format Micro-SD Card

[ 1 ] Capture Mode

Ready to Fly
Figure 72
Figure 74
Single capture.
3 captures.
5 captures.
Conigurable timed capture:
a) Interval between shots (3~60 s)
b) Number of shots
(2~254, or number of picture is subject to the capacity of the memory card.)
Figure 73
[ 8 ]
[ 9 ]
[ 10 ]
[ 11 ]
[ 12 ]
Figure 75
©

2015 DJI. All Rights Reserved.

DJI VISION App Usage
Ready to Fly
Figure 71
35
