Led Flight Indicator Descriptions; 3-Axial Stabilized Gimbal - dji PHANTOM 2 VISION+ User Manual

Assembly and Use

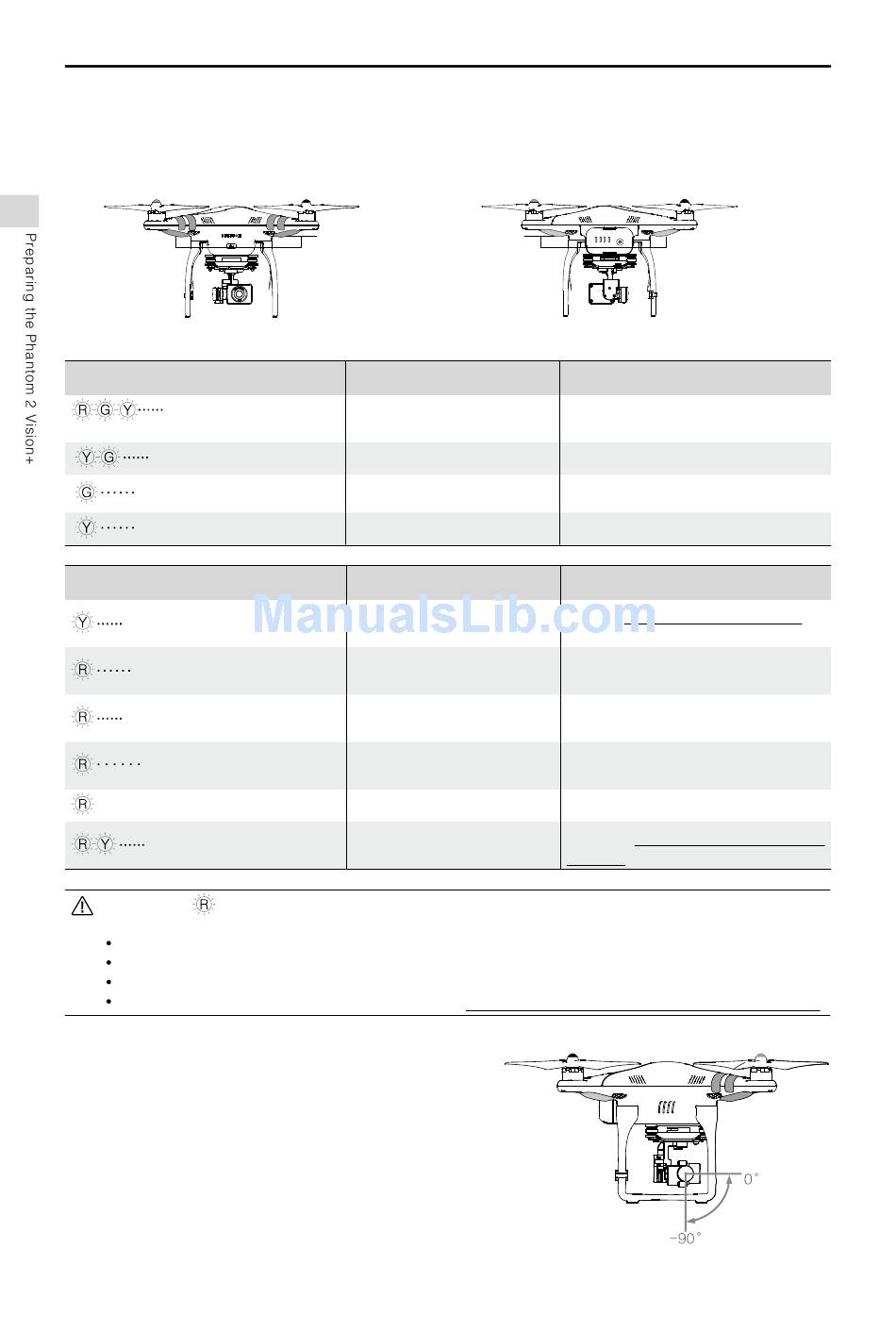

3.3 LED Flight Indicator Descriptions

LED light indicators are found at the front and the rear of the Phantom. Front LEDs are for indicating where the nose of
the aircraft is. They light up solid red after motors have started spinning. Rear LED Flight Indicators light up to show the
aircraft's current light status once the light battery is powered on. For details, please see the below table.
Figure 11
Rear LED Flight Indicators
Red, Green, Yellow
lashing in turn
Yellow,Green lashing in turn
Slow Green lashing
Slow Yellow lashing
Rear LED Flight Indicators
Quick Yellow lashing
Slow Red lashing
Quick Red lashing
Three Red lashing off and on
— Solid red
Red, Yellow lashing in turn
LED indicator appears, connect to the Phantom 2 Vision+ Assistant for details and resolution.
If a solid red
This may be caused by:
IMU calibration required: Recalibrate IMU using Assistant.
IMU is abnormal: Repair required.
Compass is abnormal: Repair required.
Remote Controller mid-point is set abnormally: Refer to How to solve large margin(s) mid-point error? (Page 49)

3.4 3-axial Stabilized Gimbal

The 3-axial stabilized gimbal of the Phantom 2 Vision+
will power on and self-check each time the light battery
is installed and powered on. Its pitch can be controlled
using the DJI VISION App. This gimbal has two working
modes, Non-FPV mode and FPV mode, with the Non-FPV
mode set as default. This can be conigured in Phantom 2
Vision+ Assistant or the DJI VISION App.
12
©
2015 DJI. All Rights Reserved.
Rear LED
Front LEDs
Flight Indicators
Normal
Power On Self-Test
Warming Up
Ready to Fly
Ready to Fly (non-GPS)
Abnormal
Remote Controller Signal Lost
Low Battery Level Warning
Critical Low Battery Level
Warning
Not Stationary or Sensor Bias is
too big
Error
Compass Needs Calibration
Figure 12
Notes
Aircraft cannot take off.
More than 6 GPS satellites are found.
Less than 6 GPS satellites are found.
Notes
Refer to Failsafe Function (Page27) for
details.
DJI VISION App will also show warning
message.
DJI VISION App will show warning
message.
Keep aircraft stationary or perform IMU
calibration.
Cannot ly.
Refer to Calibrating the Compass
(Page25) to get details.
Figure 13
