Manual DJI Phantom 2 Vision Dronexpert Gimbal
All manuals and user guides at all-guides.com

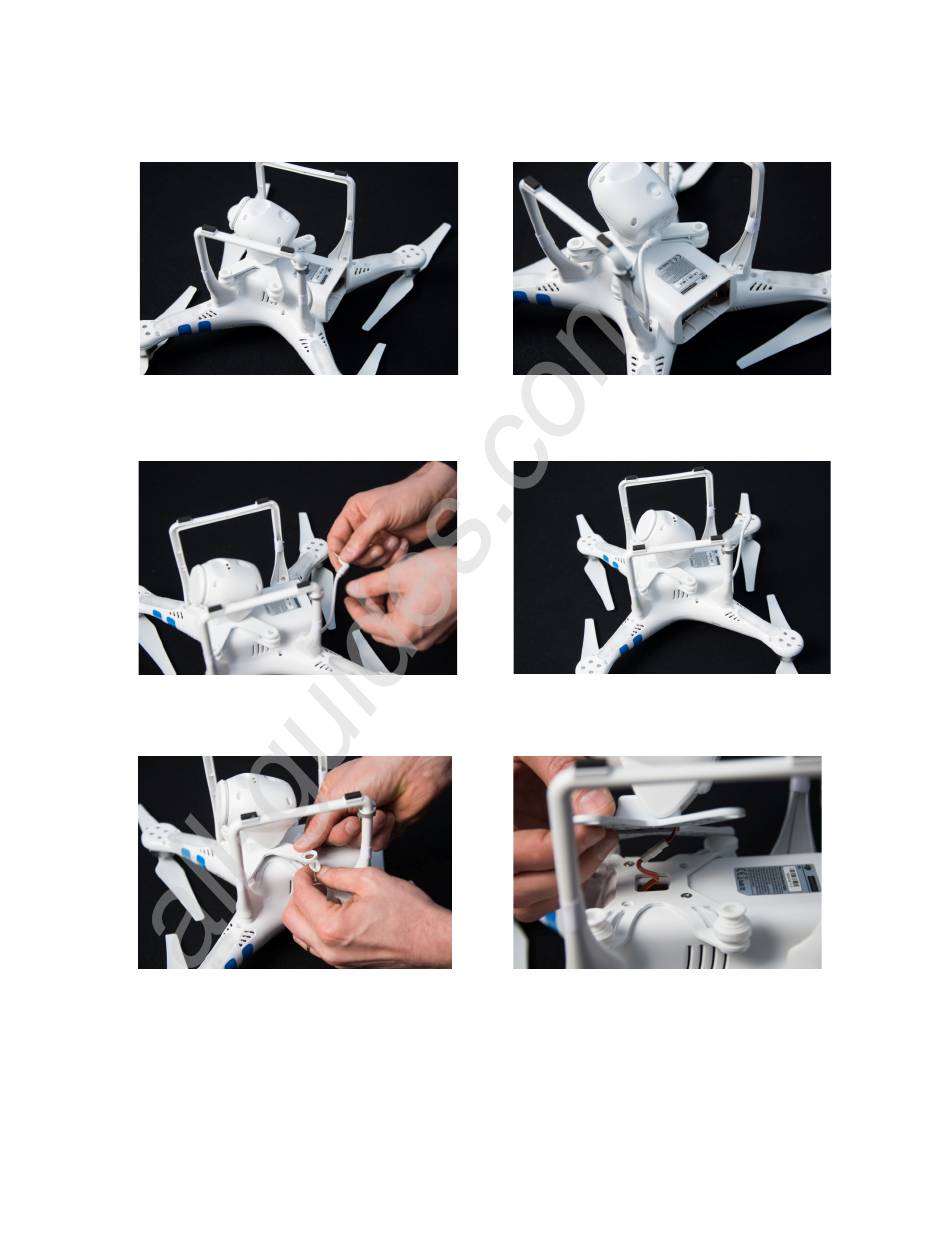

Place the Phantom on its head
(make sure battery is removed)
Remove jack plug out of the camera
Pull the frame careful out of the rubber holders
(Careful: there is a wire connected to the camera)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for dji Phantom 2 Vision
Summary of Contents for dji Phantom 2 Vision
- Page 1 Manual DJI Phantom 2 Vision Dronexpert Gimbal All manuals and user guides at all-guides.com Place the Phantom on its head (make sure battery is removed) Remove jack plug out of the camera Pull the frame careful out of the rubber holders...
- Page 2 All manuals and user guides at all-guides.com Disconnect the camera connector Remove the frame for the Phantom body You will have now removed camera and frame:...
- Page 3 All manuals and user guides at all-guides.com Remove white rubber cover and loosen (remove) the screw Remove the vision camera from the frame Remove the plastic inlay...
- Page 4 All manuals and user guides at all-guides.com Place screw back screw with the inlay in the frame so you do not lose it. Place the outside rubber cover back on the Vision camera. Overview photo...
- Page 5 All manuals and user guides at all-guides.com Now take the gimbal and included parts out of the case Put rubber tubes in the camera (where screws are located). Press the tubes all the way down to the end. Place the camera (jack) connector as show on the images...
- Page 6 All manuals and user guides at all-guides.com Place the screws in the rubber tubes as shown on the image...
- Page 7 All manuals and user guides at all-guides.com...
- Page 8 All manuals and user guides at all-guides.com Now put the jack connector into the vision camera. IMPORTANT: Make sure the sensor plate is mounted horizontal...
- Page 9 All manuals and user guides at all-guides.com Paste the cable extender on the belly of the Phantom as shown on the image and connect it. Make sure you keep enough space for you Phantom battery. Move your compass to a lower position...
- Page 10 All manuals and user guides at all-guides.com Paste dampers in the corners of the landing gear as shown below Now place the gimbal mount between the landing gear, first one side then the other side. The landing gear of the Phantom is quite flexible. The right landing gear and pull it with fixed-close strength aside and place the mount on its place as shown on the image below...
- Page 11 All manuals and user guides at all-guides.com One side first Then the other side...
- Page 12 All manuals and user guides at all-guides.com Make sure the mount i layed down on the dampers Connect the 3 pinned cable connector to the cable extender...
- Page 13 All manuals and user guides at all-guides.com Connect the jack plug from the Phantom to the Vision mount...
- Page 14 All manuals and user guides at all-guides.com Place battery and connect it to computer and open the 'Phantom 2 Assistant' Adjust settings as following: Gimbal Switch 'on' Output frequency 200hz Servo Travel Limit Pitch F2 Max=600 center=0 min=-50 Roll F1 Max=0 center=0 min=0...
