3 Preparing the Phantom 2 Vision+

The Phantom 2 Vision+ is a quadrotor with a built-in Flight Control System with integrated gimbal and camera. It features
an FC Assistant Port, Camera Data Port and a specialized battery compartment for its light battery. All these features
make the Phantom 2 Vision+ easy to assemble and conigure.

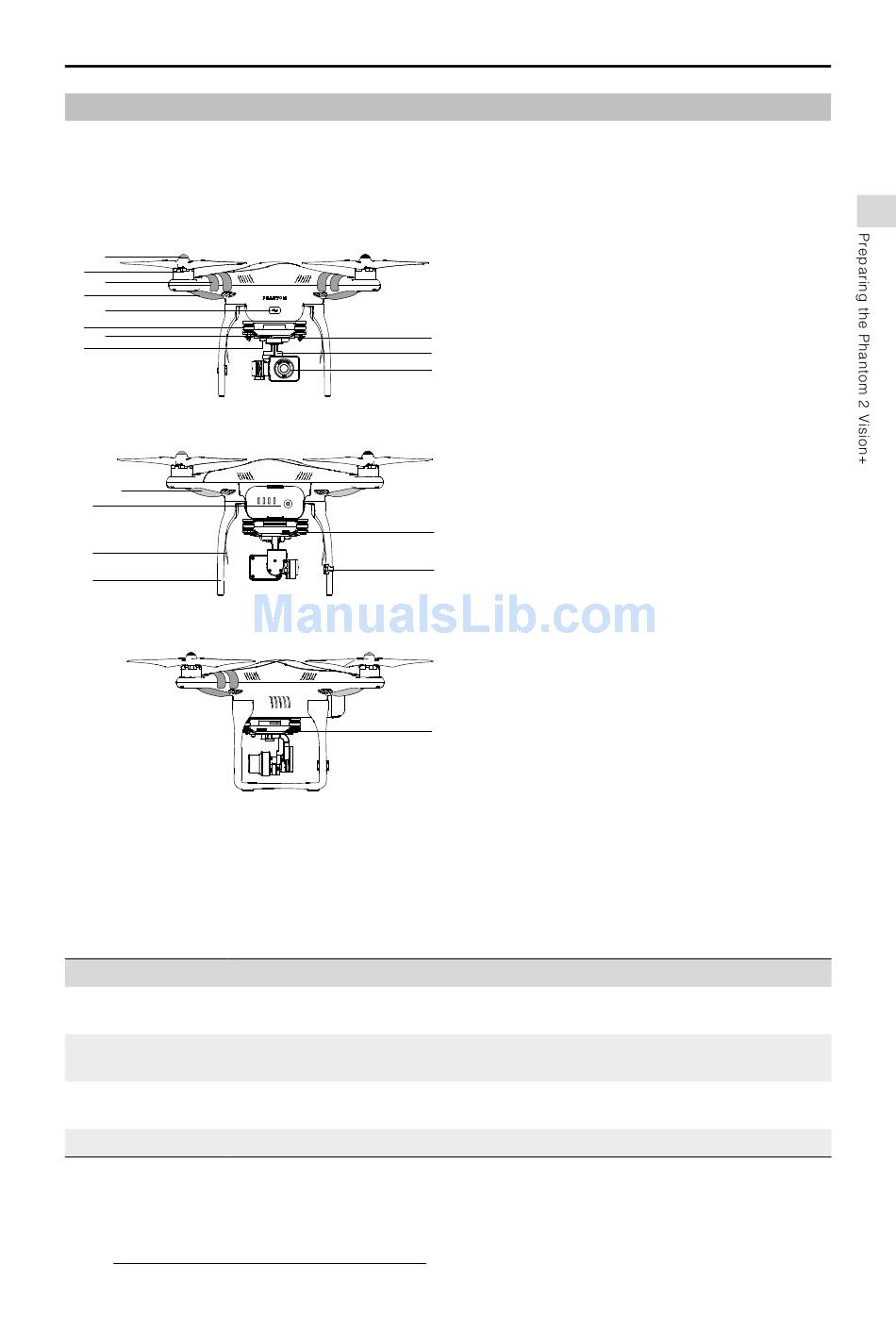

3.1 Introduction

[ 1 ]
[ 2 ]
[ 3 ]
[ 4 ]
[ 5 ]
[ 6 ]
[ 7 ]
[ 8 ]
[ 12 ]
[ 13 ]
[ 14 ]
[ 15 ]

3.2 Built-in Flight Control System

The Phantom 2 Vision+ is equipped with a DJI Naza-M V2 Flight Control System. This provides incredible ease of use
and stability. Pilots can control the Phantom's movements in many directions, including pitch (forwards and backwards),
roll (left and right), elevator (up and down) and yaw (turn left or right). The light control system also can provide IOC,
Failsafe and battery level warnings.
Modules
Flight Controller
IMU
GPS & Compass
LED Flight Indicators

FC Assistant Port

The light control system communicates with the PC Assistant through a Micro-USB cable between the Phantom FC
Assistant Port and the PC. Users can use Assistant to conigure the aircraft and upgrade the Phantom irmware. Please
refer to Using the Phantom 2 Vision+ Assistant (Page 46) for details.
Figure 8
Figure 9
Figure 10
Acts as the brains of the complete flight control system, responsible for connecting and
controlling all the modules together.
Has a built-in inertial sensor and a barometric altimeter that measures both attitude and
altitude.
The compass reads geomagnetic information and assists the GPS (Global Position System)
to accurately calculate the position and height of the aircraft.
Indicates the status of light control system.
[1]
Propeller (P15)
Motor
[ 2 ]
[ 3 ]
Front Sticker
[ 9 ]
[ 4 ]
Front LED (P12)
[ 10 ]
FC Assistant Port (Micro-USB slot) (P46)
[ 11 ]
[ 5 ]
[ 6 ]
Vibration Absorber
Camera LED Indicator (P15)
[ 7 ]
Camera Function Button (P14)
[ 8 ]
[ 9 ] Anti-drop Kit (P13)
[ 16 ]
3-axial Stabilized Gimbal (P12)
[ 10 ]
Camera Lens (P14)
[ 17 ]
[ 11 ]
[ 12 ]
Rear LED Flight Indicator (P12)
[ 13 ]
DJI Smart Flight Battery (P7)
[ 14 ]
Receiver Antenna (P17)
[ 15 ]
Landing Gear
[ 18 ]
Camera Data Port (Micro-USB slot) (P14)
[ 16 ]
Compass (P25)
[ 17 ]
Micro-SD Slot (P13)
[ 18 ]
Functions
Assembly and Use
©
2015 DJI. All Rights Reserved.
11
