5.7 Linking the Remote Controller and Receiver

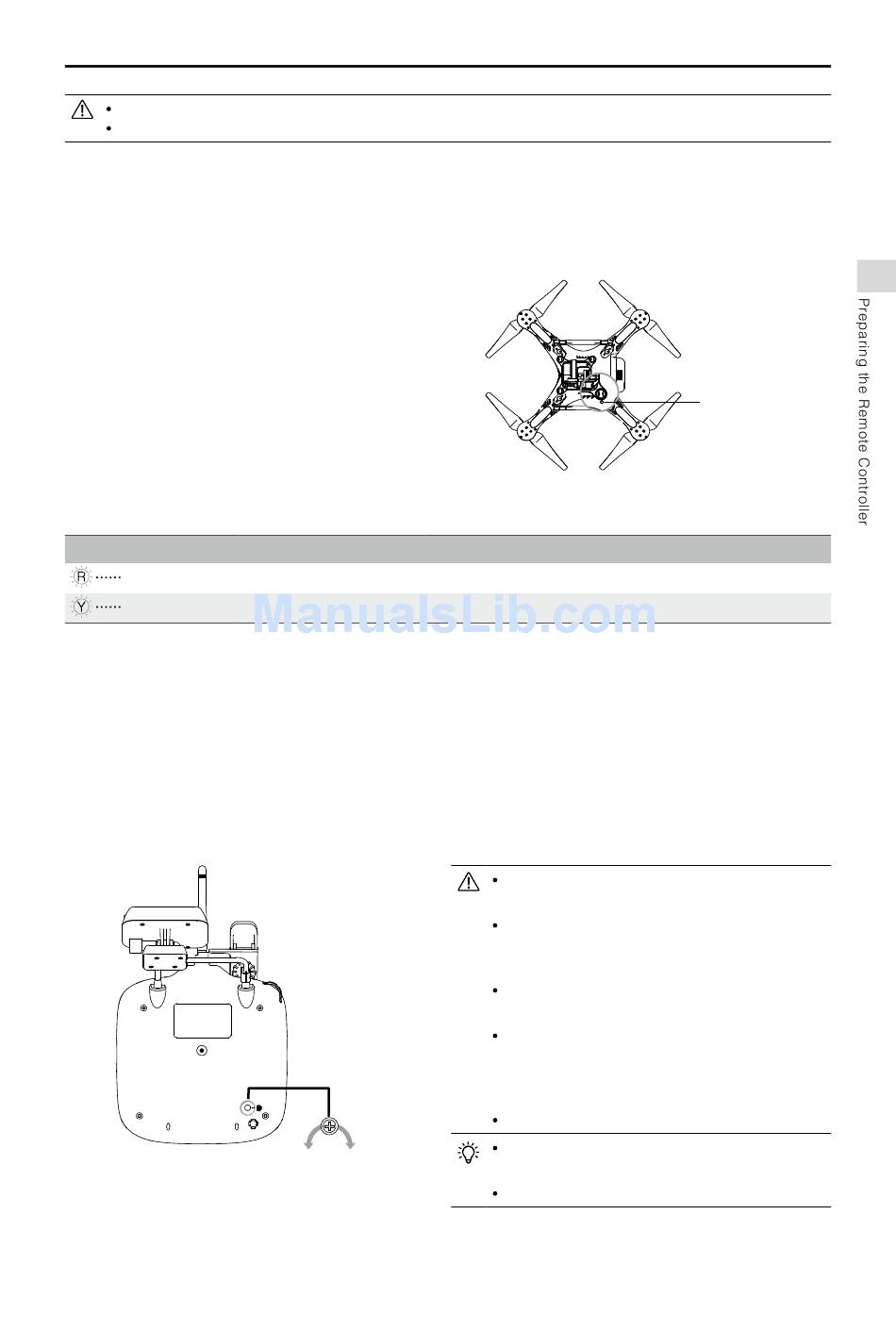

A 5.8G receiver is built in to the Phantom 2 Vision+. Its link button and indicator are located on the underside of the
phantom, as shown in Figure 26.
The Remote Controller and the receiver are paired before delivery. Only use this button if you have replaced your
Remote Controller or receiver.

Linking Procedures

(1) Power off the Remote Controller, power on the aircraft.
You will see the link indicator blinking red.
(2) Press the link button with a thin object and hold
until the link indicator blinks yellow. Release the link
button.
(3) Power on the Remote Controller. Link indicator will
switch off, showing that a link has been successfully
established.

Link Indicator

Link Indicator
Red lashing
Yellow lashing

5.8 Compliance Version Coniguration

As power levels vary between regulators, the Phantom Remote Controller's power output can be adjusted by twisting the
CE/FCC Control Knob (Figure 27) on the back of the Remote Controller using a lathead screwdriver. For CE compliance,
set the Remote Controller to CE with a full counterclockwise turn. For FCC compliance, set the Remote Controller to FCC
with a full clockwise turn. Be sure to follow relevant local regulations.
Compliance can be conigured using the PHANTOM RC Assistant. Select CE compliance version in Assistant to set it, or
do the same with FCC compliance version.
Figure 27
Description
No signal received.
Ready to link.
CE FCC
Figure 26
Next Operation
Switch on the Remote Controller or perform a link procedure.
Switch on the Remote Controller.
Turn the CE/FCC Control Knob gently to avoid
damage.
CE compliant devices have an effective remote
controller range of 400 meters in open spaces due
to power limitations.
FCC compliant devices have an effective range of
800 meters in open spaces.
Watch your flight distance as the Phantom 2
Vision+ will enter Failsafe mode (auto-landing or
go home and land) if it lies beyond the relevant
range limits.
Always follow local laws and regulations.
It is recommended to use a Φ2.4mm flathead
screwdriver for adjustments.
There is another potentiometer for reserved use.
