DJI Air 2S Quick Start Guide
Aircraft
The DJI
TM

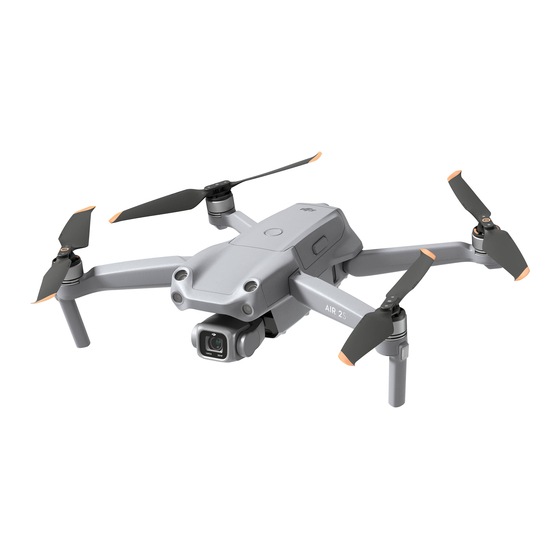

Air 2S features a new folding design and a fully stabilized 3-axis gimbal camera capable
of shooting 4K video and 20 MP photos. DJI signature technologies such as Obstacle Sensing and
Intelligent Flight Modes like ActiveTrack 3.0, Point of Interest (POI) 3.0, QuickShots, and
Advanced Pilot Assistance Systems 4.0, make capturing complex shots effortless and easy. The DJI
Air 2S boasts a maximum flight speed of 42.5 mph (68.4 kph) and a maximum flight time* of 31
minutes.
1. Forward Vision System
2. Propellers
3. Motors
4. Landing Gears (Built-in antennas)
5. Gimbal and Camera
6. Downward Vision System
7. Auxiliary Bottom Light
8. Infrared Sensing System
9. USB-C Port
10. Battery Buckles
11. Front LEDs
12. Aircraft Status Indicators
13. Backward Vision System
14. Intelligent Flight Battery
15. Power Button
16. Battery Level LEDs
17. microSD Card Slot
18. Upward Vision System
Remote Controller
Built into the DJI RC-N1 remote controller is DJI's long-range transmission technology O-Sync 3.0,

Advertisement

loading
Need help?

Need help?

Do you have a question about the 2S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for dji 2S

  • Page 1 Intelligent Flight Modes like ActiveTrack 3.0, Point of Interest (POI) 3.0, QuickShots, and Advanced Pilot Assistance Systems 4.0, make capturing complex shots effortless and easy. The DJI Air 2S boasts a maximum flight speed of 42.5 mph (68.4 kph) and a maximum flight time* of 31 minutes.
  • Page 2 12. Control Sticks Storage Slot 13. Gimbal Dial 14. Shoot/Record Button 15. Mobile Device Slot Downloading the DJI Fly App Search for ‘DJI Fly’ in the App Store or Google Play, or scan the QR code to download the app on your mobile device.
  • Page 3 Charging the Batteries Use the provided charger to fully charge the Intelligent Flight Battery before first time use. Charge the remote controller via the USB-C port using the provided charger. Preparing the Remote Controller 1. Attach the control sticks. 2. Pull out the mobile device holder, and then unplug the end with mobile phone mark of the RC cable.
  • Page 4 Preparing the Aircraft...
  • Page 5 3. Launch DJI Fly. When connect an Android mobile device to the remote controller for the first time, select the default connection settings when there is a prompt. **Use your DJI account to activate the aircraft. Activation requires an internet connection. Flight...
  • Page 6 Remote Controller Operation Specifications Aircraft(Model: DA2SUE1) Operating Temperature 0° to 40°C Operating Frequency 2.4-2.4835 GHz, 5.725-5.850 GHz* Transmitter Power(EIRP) 2.4 GHz: ≤30 dBm (FCC), ≤20 dBm (CE), ≤20 dBm (SRRC) , ≤20 dBm (MIC) 5.8 GHz: ≤30 dBm (FCC), ≤14 dBm (CE), ≤29 dBm (SRRC) Remote Controller(Model: RC231)...
  • Page 7 Operating Temperature 0° to 40°C Transmitter Power(EIRP) 2.4G: ≤26 dBm (FCC), ≤20 dBm (CE), ≤20 dBm (SRRC) , ≤20 dBm (MIC) 5.8G: ≤26 dBm (FCC), ≤14 dBm (CE), ≤26 dBm (SRRC) Intelligent Flight Battery Capacity 3500mAh Voltage 11.55 V Battery Type LiPo 3S Energy 40.42 Wh...
  • Page 8 compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The portable device is designed to meet the requirements for exposure to radio waves established by the Federal Communications Commission (USA). These requirements set a SAR limit of 1.6 W/kg averaged over one gram of tissue.The highest SAR value reported under this standard during product certifcation for use when properly worn on the body.
  • Page 9 EU contact address: DJI GmbH, Industriestrasse 12, 97618, Niederlauer, Germany Dé claration de conformité UE : Par la pré sente, SZ DJI TECHNOLOGY CO., LTD dé clare que cet appareil est conforme aux principales exigences et autres clauses pertinentes de la directive europé...
