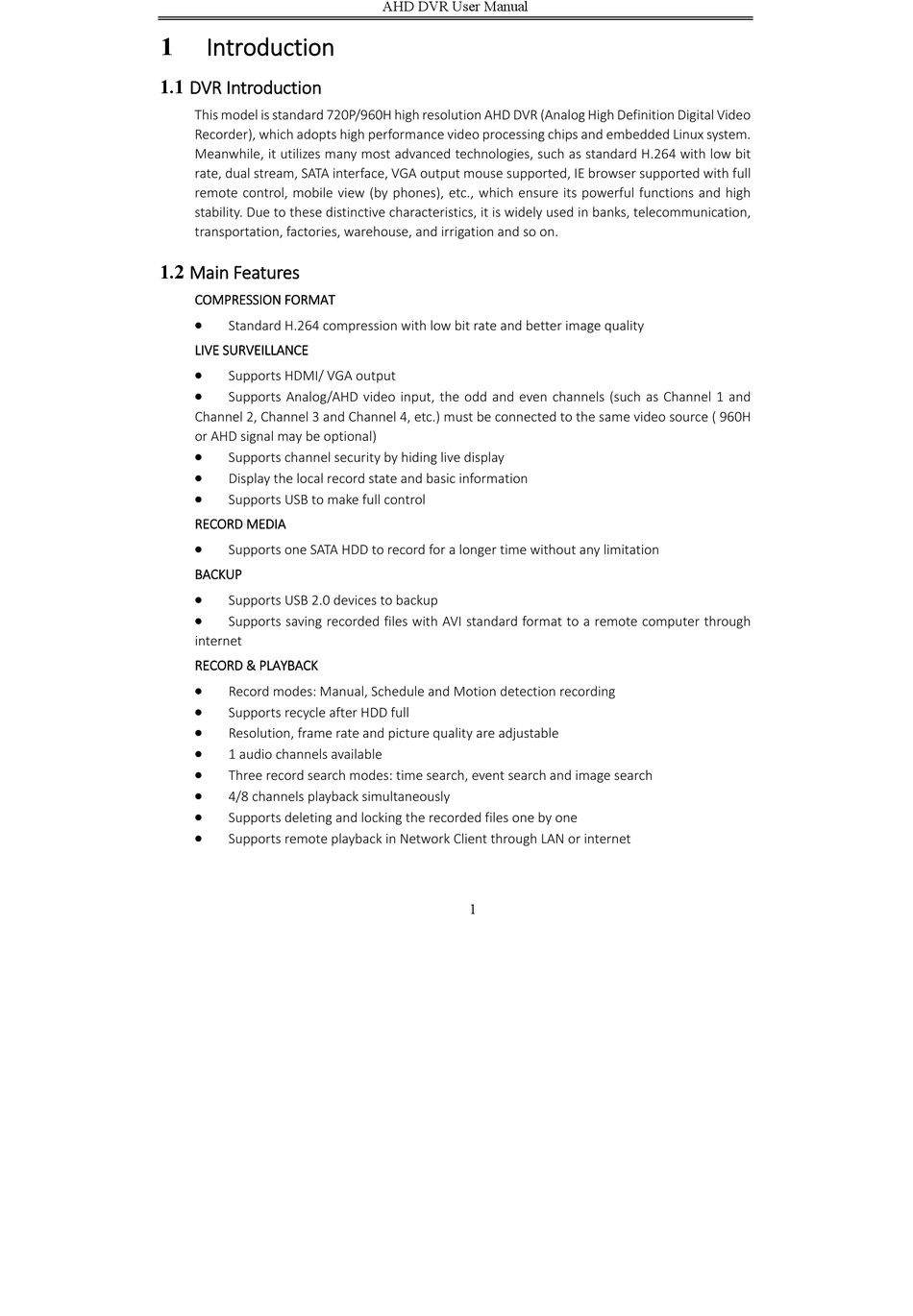

Introduction
1.1 DVR Introduction
This model is standard 720P/960H high resolution AHD DVR (Analog High Definition Digital Video
Recorder), which adopts high performance video processing chips and embedded Linux system.
Meanwhile, it utilizes many most advanced technologies, such as standard H.264 with low bit
rate, dual stream, SATA interface, VGA output mouse supported, IE browser supported with full
remote control, mobile view (by phones), etc., which ensure its powerful functions and high
stability. Due to these distinctive characteristics, it is widely used in banks, telecommunication,
transportation, factories, warehouse, and irrigation and so on.
1.2 Main Features
COMPRESSION FORMAT

Standard H.264 compression with low bit rate and better image quality
LIVE SURVEILLANCE

Supports HDMI/ VGA output

Supports Analog/AHD video input, the odd and even channels (such as Channel 1 and
Channel 2, Channel 3 and Channel 4, etc.) must be connected to the same video source ( 960H
or AHD signal may be optional)

Supports channel security by hiding live display

Display the local record state and basic information

Supports USB to make full control
RECORD MEDIA

Supports one SATA HDD to record for a longer time without any limitation
BACKUP

Supports USB 2.0 devices to backup

Supports saving recorded files with AVI standard format to a remote computer through
internet
RECORD & PLAYBACK

Record modes: Manual, Schedule and Motion detection recording

Supports recycle after HDD full

Resolution, frame rate and picture quality are adjustable

1 audio channels available

Three record search modes: time search, event search and image search

4/8 channels playback simultaneously

Supports deleting and locking the recorded files one by one

Supports remote playback in Network Client through LAN or internet
