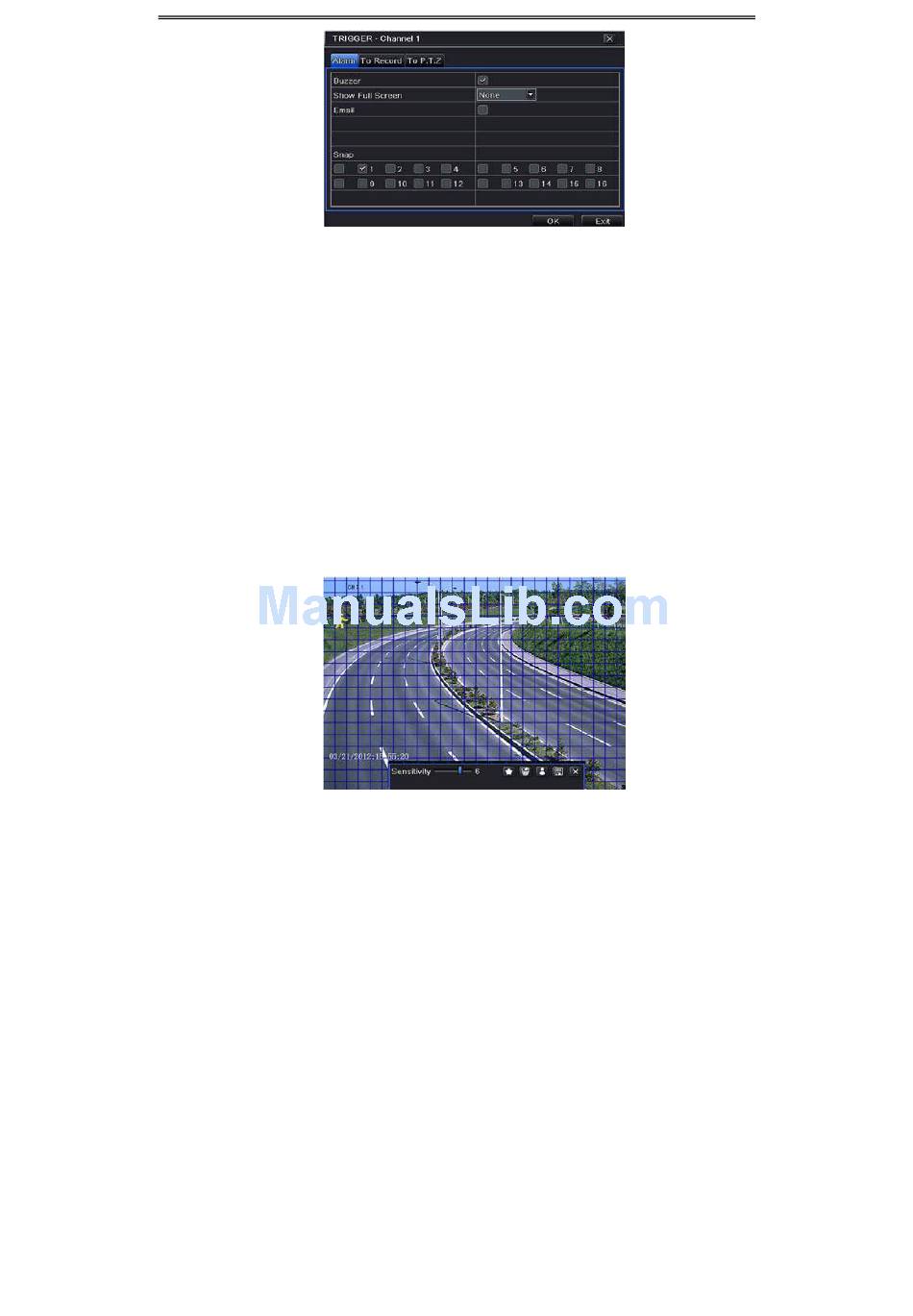

Fig 4‐18 Alarm Configuration‐Motion Trigger
Buzzer: If selected, the local buzzer would be activated on an alarm.
Show Full Screen: If selected, there will pop up the chosen channel on the monitor on an alarm
trigger.
Email: If selected, the DVR will send an email alert to the preconfigured email address in case
of a motion based alarm from the particular input.
Snap: If selected, the system will snap images of the checked channels on an alarm and save
them in the HDD automatically.
④
Go to To Record tab. Select recording channels. It would be recorded in case of an alarm.
Click OK button to save the setting.
⑤
Go to "To PTZ" tab. Set preset, cruise and track options for a PTZ in case of a sensor based
alarm. Single or multiple PTZ units could be programmed to perform this function on the
same alarm.
⑥
After clicking Area button, a dialog box will pop up as Fig 4‐19.
⑦
In the Area interface, you can drag slide bar to set the sensitivity value (1‐8). The higher
the value is the more sensitive it is to motion. Since the sensitivity is influenced by color
AHD DVR User Manual
Fig 4‐19 Motion‐Area
