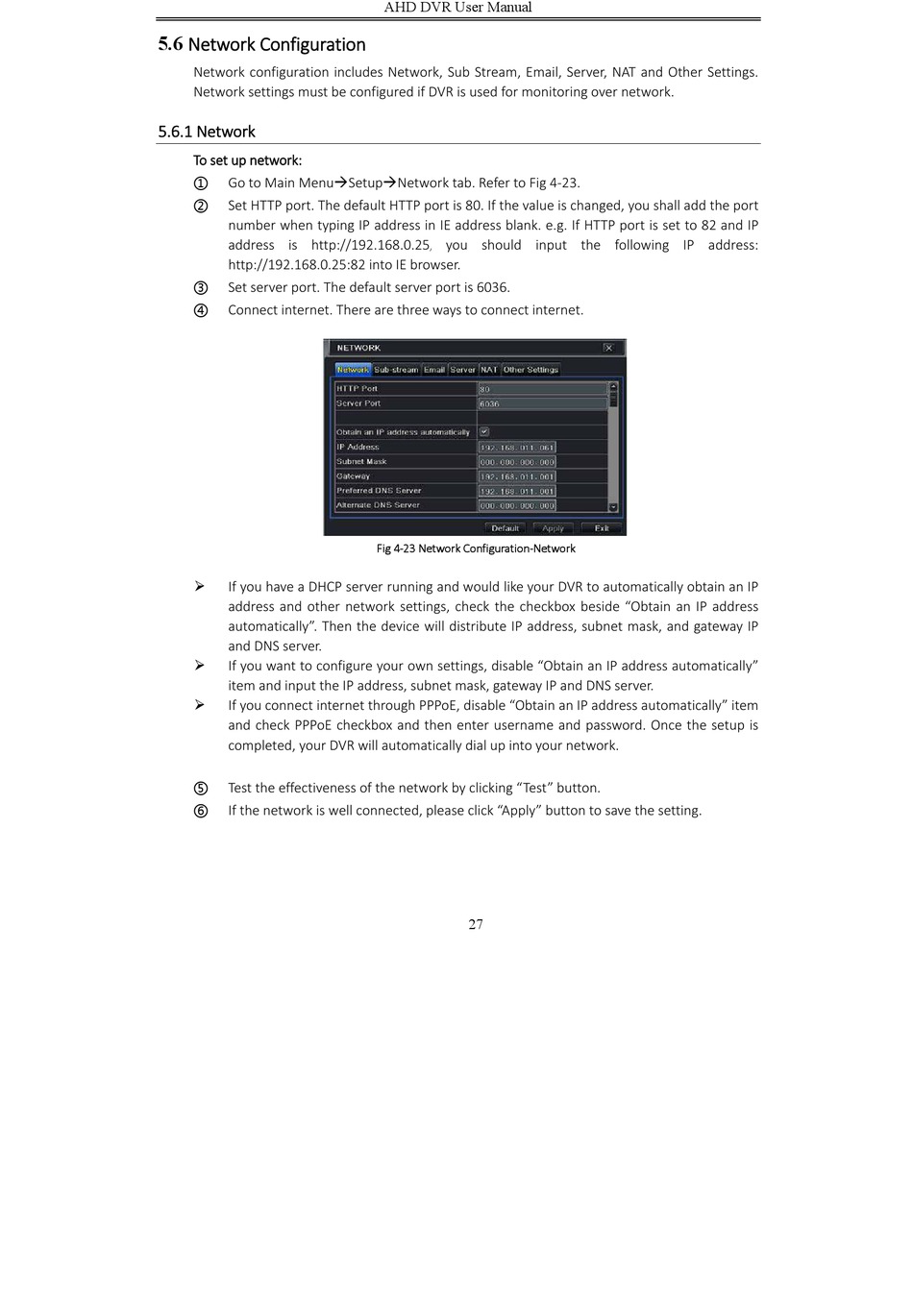

5.6 Network Configuration
Network configuration includes Network, Sub Stream, Email, Server, NAT and Other Settings.
Network settings must be configured if DVR is used for monitoring over network.

5.6.1 Network
To set up network:
Go to Main MenuSetupNetwork tab. Refer to Fig 4‐23.
Set HTTP port. The default HTTP port is 80. If the value is changed, you shall add the port
number when typing IP address in IE address blank. e.g. If HTTP port is set to 82 and IP
address  is  http://192.168.0.25
http://192.168.0.25:82 into IE browser.
Set server port. The default server port is 6036.
Connect internet. There are three ways to connect internet.


If you have a DHCP server running and would like your DVR to automatically obtain an IP
address  and  other  network  settings,  check  the  checkbox  beside  "Obtain  an  IP  address
automatically". Then the device will distribute IP address, subnet mask, and gateway IP
and DNS server.
If you want to configure your own settings, disable "Obtain an IP address automatically"
item and input the IP address, subnet mask, gateway IP and DNS server.
If you connect internet through PPPoE, disable "Obtain an IP address automatically" item
and check PPPoE checkbox and then enter username and password. Once the setup is
completed, your DVR will automatically dial up into your network.

Test the effectiveness of the network by clicking "Test" button.
If the network is well connected, please click "Apply" button to save the setting.

AHD DVR User Manual
you  should  input  the  following  IP  address:
Fig 4‐23 Network Configuration‐Network
27
