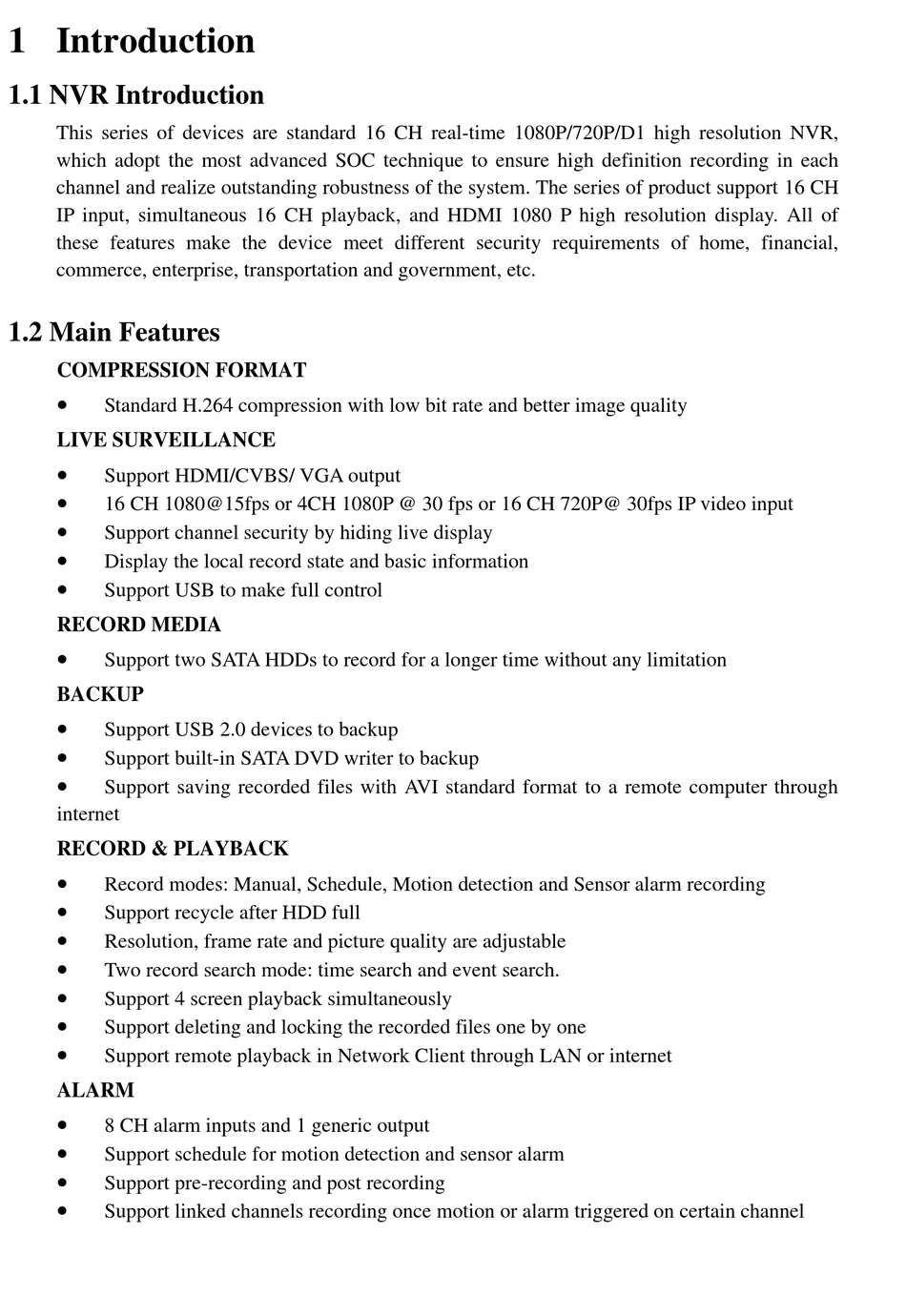

1 Introduction

1.1 NVR Introduction

This series of devices are standard 16 CH real-time 1080P/720P/D1 high resolution NVR,
which adopt the most advanced SOC technique to ensure high definition recording in each
channel and realize outstanding robustness of the system. The series of product support 16 CH
IP input, simultaneous 16 CH playback, and HDMI 1080 P high resolution display. All of
these features make the device meet different security requirements of home, financial,
commerce, enterprise, transportation and government, etc.

1.2 Main Features

COMPRESSION FORMAT

Standard H.264 compression with low bit rate and better image quality
LIVE SURVEILLANCE

Support HDMI/CVBS/ VGA output

16 CH 1080@15fps or 4CH 1080P @ 30 fps or 16 CH 720P@ 30fps IP video input

Support channel security by hiding live display

Display the local record state and basic information

Support USB to make full control
RECORD MEDIA

Support two SATA HDDs to record for a longer time without any limitation
BACKUP

Support USB 2.0 devices to backup

Support built-in SATA DVD writer to backup

Support saving recorded files with AVI standard format to a remote computer through
internet
RECORD & PLAYBACK

Record modes: Manual, Schedule, Motion detection and Sensor alarm recording

Support recycle after HDD full

Resolution, frame rate and picture quality are adjustable

Two record search mode: time search and event search.

Support 4 screen playback simultaneously

Support deleting and locking the recorded files one by one

Support remote playback in Network Client through LAN or internet
ALARM

8 CH alarm inputs and 1 generic output

Support schedule for motion detection and sensor alarm

Support pre-recording and post recording

Support linked channels recording once motion or alarm triggered on certain channel
