2.2 Front Panel Descriptions
The front panel descriptions are only for reference; please make the object as the standard.
Notice: The front panel descriptions are only for reference; please make the object as the standard.
Type
Item
Work state
1
indicator
Compound
2
button
3 IR receiver
4 USB

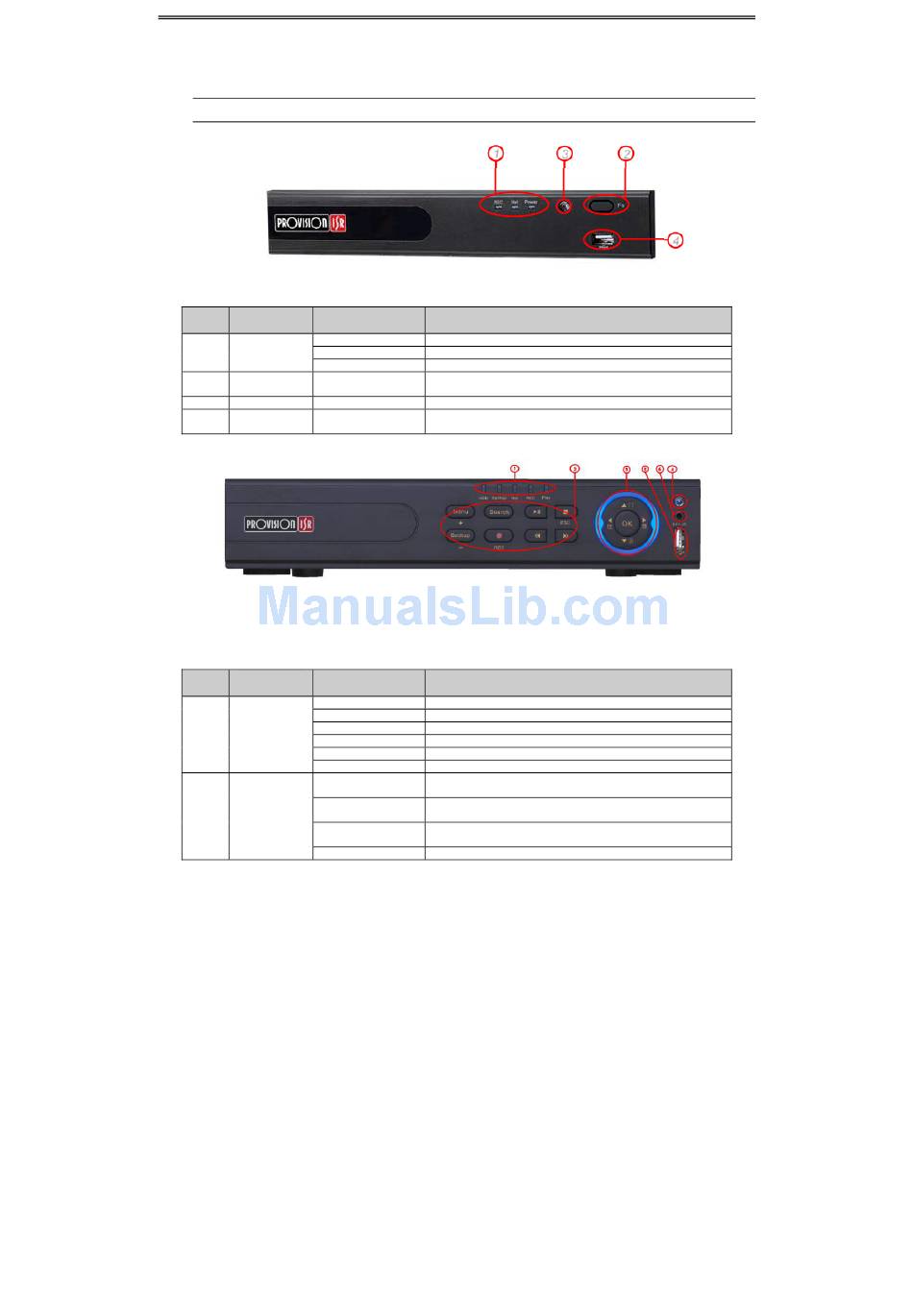

Front panel description:
Type
Item
Work state
indicator
1
Compound
button
2
AHD DVR User Manual
1
Mini Metal Case (MM)
Name
Power Power indicator, when connection , the light is blue
Net When access to network , the light is blue
REC When recording, the light is blue
Fn Change the display output type (Long Press)
IR For remote controller
external USB devices (USB flash, USB HDD for backup, update firmware,
USB port
USB mouse)
Small 1U Case
Name
Power Power indicator, when connection , the light is blue
HDD When HDD is writing and reading , the light is blue
Net When access to network , the light is blue
Backup When backup files and data, the light is blue
Play When playing video, the light is blue
REC When recording, the light is blue
1. Enter menu in live
MENU/+
2. Increase the value in setup
1. Decrease the value in setup
BACKUP/‐
2. Enter backup mode in live
1. Record manually
RECORD/FOCUS
2. FOCUS function enables at PTZ mode.
REW/SPEED 1. Rewind key 2. SPEED function enables at PTZ mode
4
3 2
4
Description
Description
