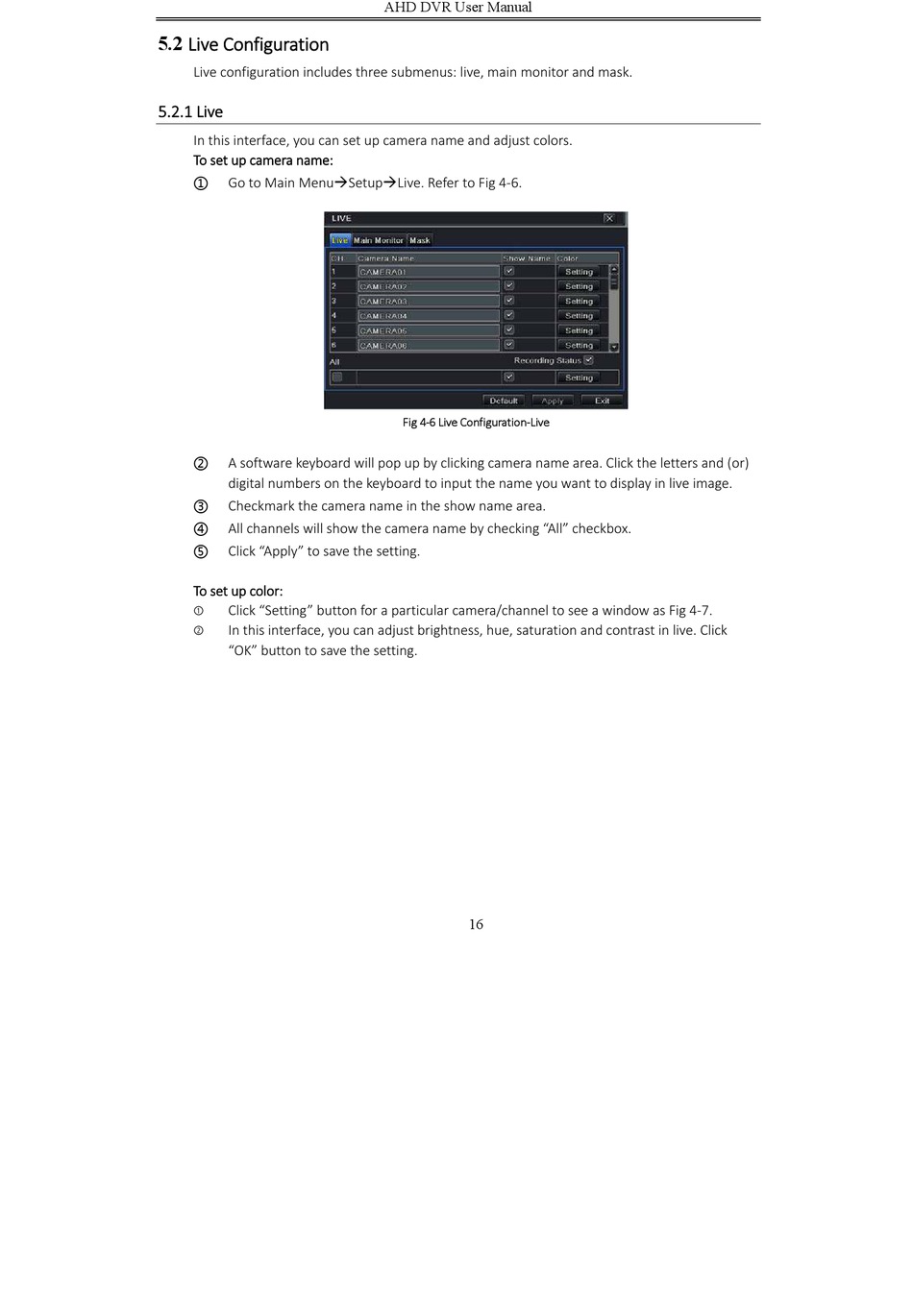

5.2 Live Configuration
Live configuration includes three submenus: live, main monitor and mask.
5.2.1 Live
In this interface, you can set up camera name and adjust colors.
To set up camera name:
①
Go to Main MenuSetupLive. Refer to Fig 4‐6.
②
A software keyboard will pop up by clicking camera name area. Click the letters and (or)
digital numbers on the keyboard to input the name you want to display in live image.
③
Checkmark the camera name in the show name area.
④
All channels will show the camera name by checking "All" checkbox.
⑤
Click "Apply" to save the setting.
To set up color:
①
Click "Setting" button for a particular camera/channel to see a window as Fig 4‐7.
②
In this interface, you can adjust brightness, hue, saturation and contrast in live. Click
"OK" button to save the setting.
AHD DVR User Manual
Fig 4‐6 Live Configuration‐Live
