Checkmark camera name and time stamp. Click Setting button to set up the position of
the stamp. You can drag the camera name and time stamp at random positions. Refer to
below Figures.
Select "All" to set up all channels with the same parameters.
Before drag                                                          After drag

5.3.5 Recycle Record
This  option  is  used  to  recycle  the  HDD  space  once  it  is  full.  If  enabled,  the  system  will
automatically delete the old records and recycle the space if it is completely utilized. The setting
steps are as follows:
Go to Main MenuSetupRecordRecycle Record interface.
Checkmark recycle record to activate auto recycling. If the option is disabled or not
selected, the DVR would stop recording once HDD is full.
Click "Apply" button to save the setting.

5.3.6 Snap
In this interface, user can set up resolution, quality, snap interval, snap number.

5.4 Schedule Configuration
Schedule configuration includes two sub menus: schedule and motion.

AHD DVR User Manual

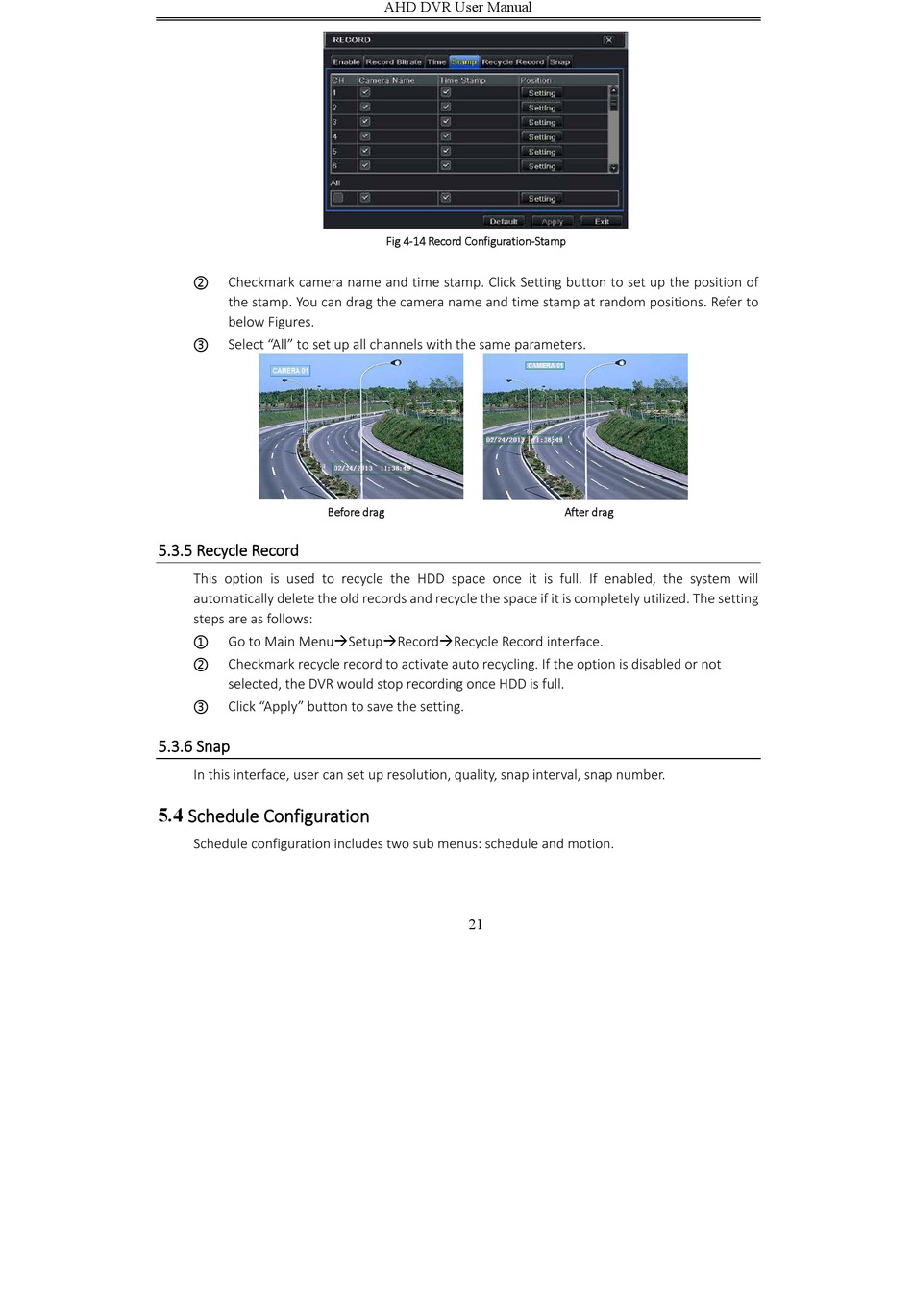

Fig 4‐14 Record Configuration‐Stamp


21
