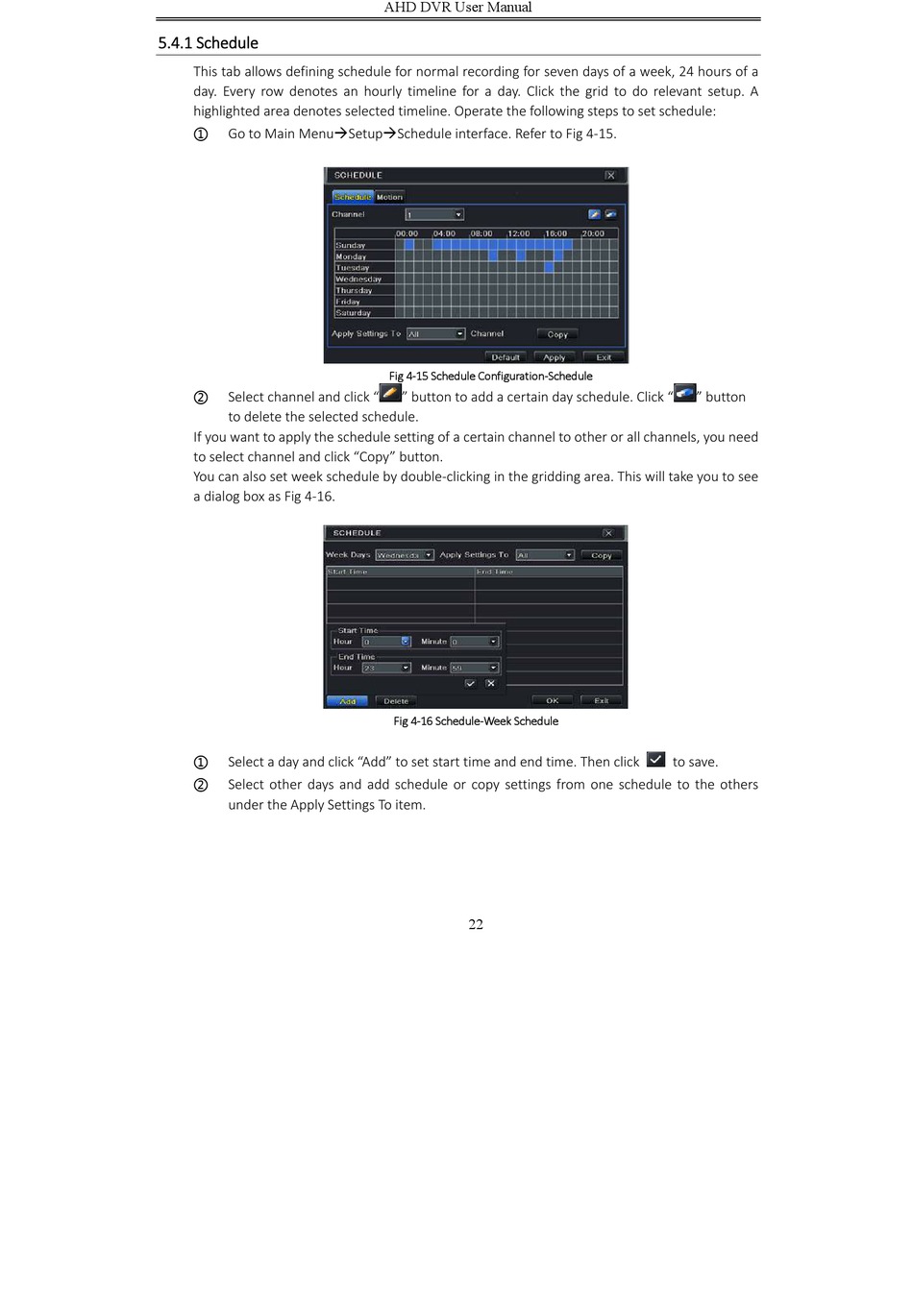

5.4.1 Schedule
This tab allows defining schedule for normal recording for seven days of a week, 24 hours of a
day. Every row denotes an hourly timeline for a day. Click the grid to do relevant setup. A
highlighted area denotes selected timeline. Operate the following steps to set schedule:
①
Go to Main MenuSetupSchedule interface. Refer to Fig 4‐15.
②
Select channel and click "
to delete the selected schedule.
If you want to apply the schedule setting of a certain channel to other or all channels, you need
to select channel and click "Copy" button.
You can also set week schedule by double‐clicking in the gridding area. This will take you to see
a dialog box as Fig 4‐16.
①
Select a day and click "Add" to set start time and end time. Then click
②
Select other days and add schedule or copy settings from one schedule to the others
under the Apply Settings To item.
AHD DVR User Manual
Fig 4‐15 Schedule Configuration‐Schedule
" button to add a certain day schedule. Click "
Fig 4‐16 Schedule‐Week Schedule
22
" button
to save.
