To set up mask area:

①

Go to Main MenuSetupLiveMask interface.

②

Click "Setting" button to go to live image.

③

Press and drag the left mouse button to set mask area as shown below.

④

Right click to exit the mask setting interface.

⑤

Click "Apply" button to save the setting.

To delete mask area:

①

Click "Setting" button in the mask interface.

②

Select a certain masked area and double click to delete that masked area.

③

Then click "Apply" button to save the setting.

5.3 Record Configuration

Record configuration includes six sub menus: enable, record bit rate, time, recycle record, stamp

and snap.

Before Configuration, please make sure your DVR has been installed with HDD and has

completed its initialization.

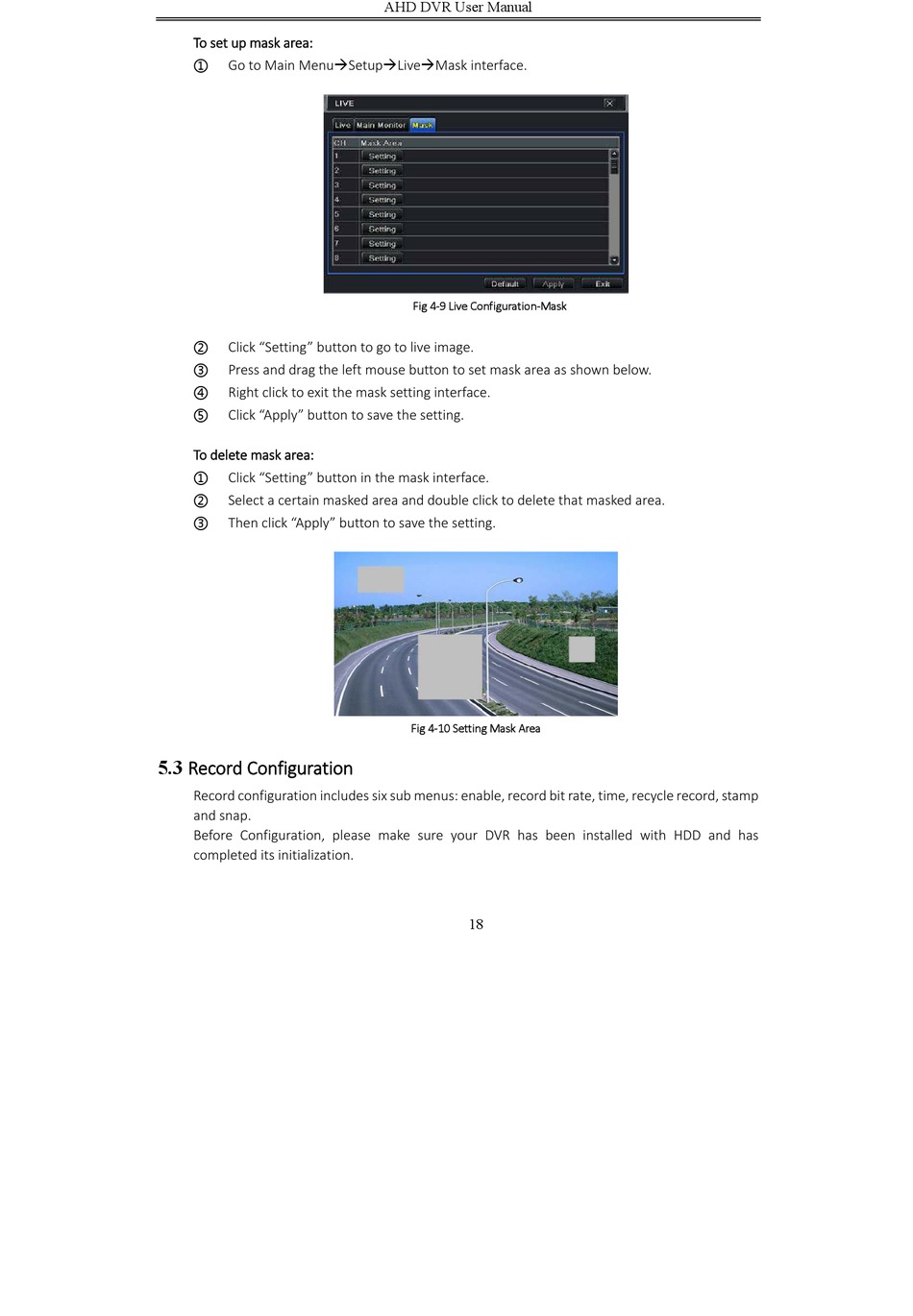

AHD DVR User Manual

Fig 4‐9 Live Configuration‐Mask

Fig 4‐10 Setting Mask Area
