5.6.2 Sub Stream
To set up sub stream:
①
Go to Main MenuSetupNetwork Sub Stream interface. Refer to Fig 4‐24.
②
Select fps, resolution, quality, encode and max bit rate.
③
Select "All" to set the same settings for all channels.
Parameter
FPS 1‐12/15. Can be higher in some models
Resolution Support CIF.
The quality of the clients' image. The higher the value is, the clearer the
Quality
record image. Six options: lowest, lower, low, medium, higher and highest.
Encode VBR and CBR.
Max bit rate Range from: 256~1792kbps.
AHD DVR User Manual

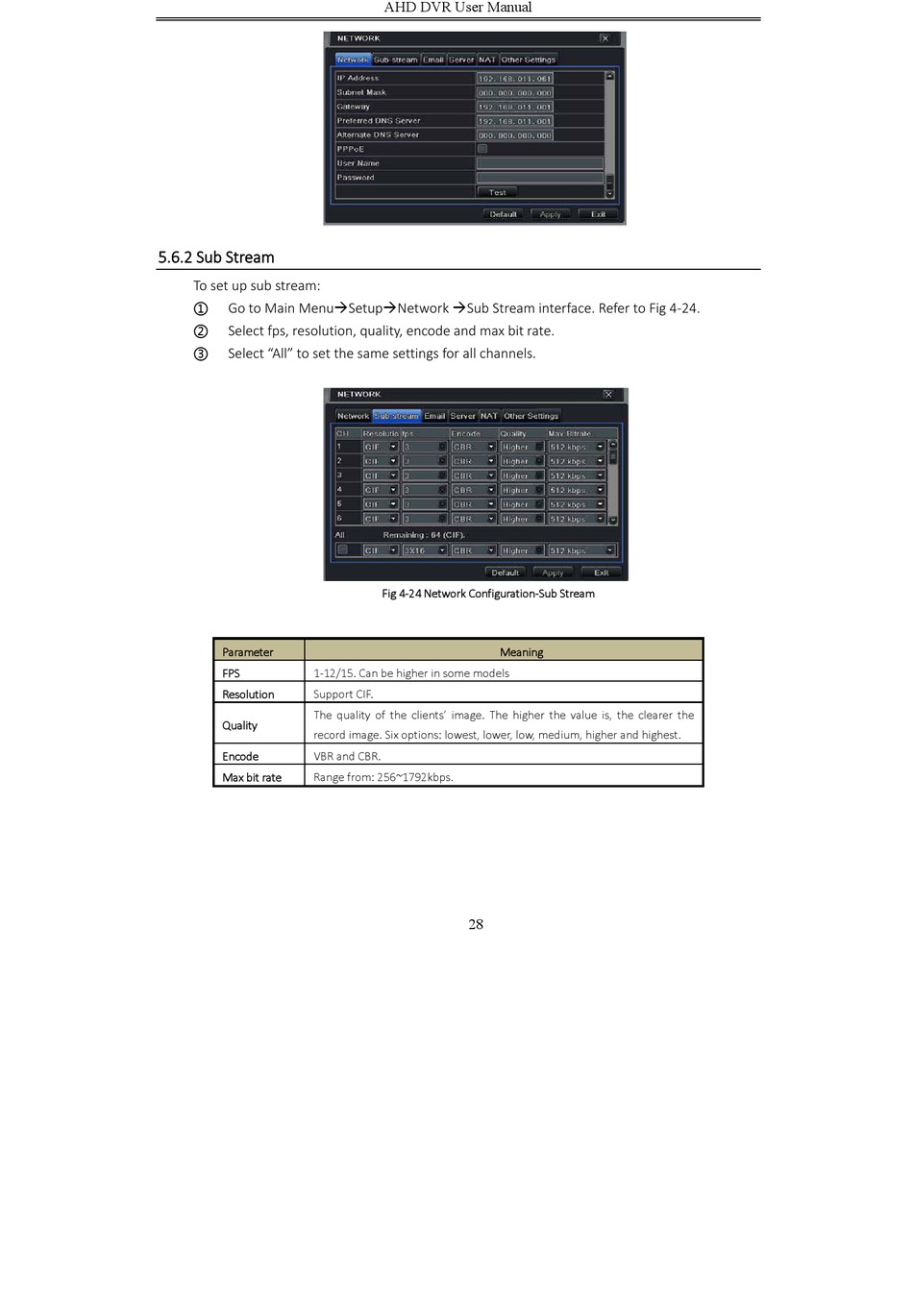

Fig 4‐24 Network Configuration‐Sub Stream
Meaning
28
