5.2.2 Main Monitor

The main monitor settings allow you to set camera sequence in live display mode.

Operate the following steps to set main monitor:

①

Go to Main MenuSetupLiveMain Monitor interface. Refer to Fig 4‐8.

②

Select display mode and channel.

③

Select dwell time. Click

Click

button to set the latter channel groups of dwell picture.

④

Click "Apply" to save the setting.

5.2.3 Mask

If there is something you don't want to display in the live image. You can set mask. For a given

channel a maximum of three areas can be masked.

AHD DVR User Manual

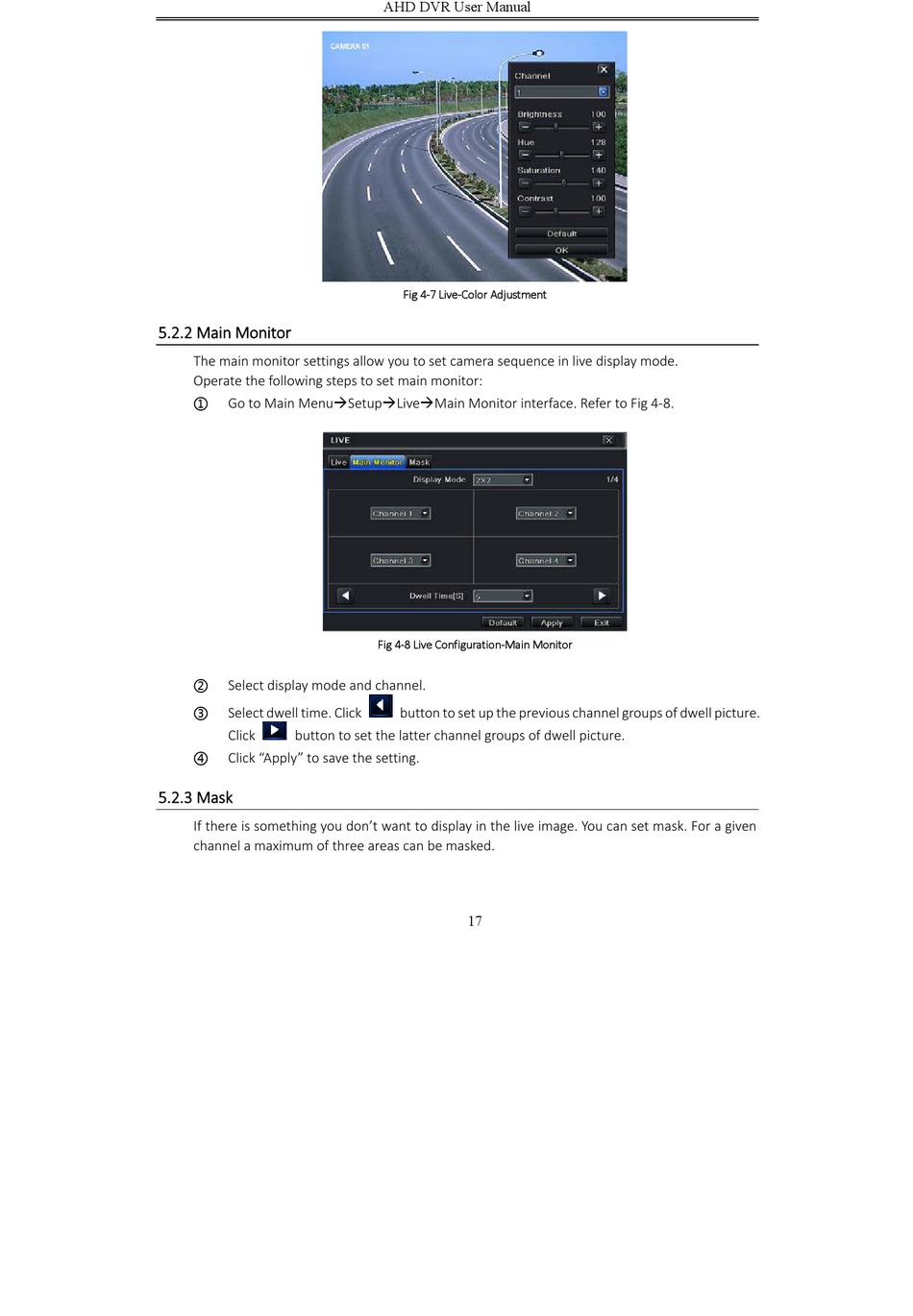

Fig 4‐7 Live‐Color Adjustment

Fig 4‐8 Live Configuration‐Main Monitor

button to set up the previous channel groups of dwell picture.
