Related Manuals for Provision ISR H.264 4/8/16/32-channel digital video recorder
Summary of Contents for Provision ISR H.264 4/8/16/32-channel digital video recorder

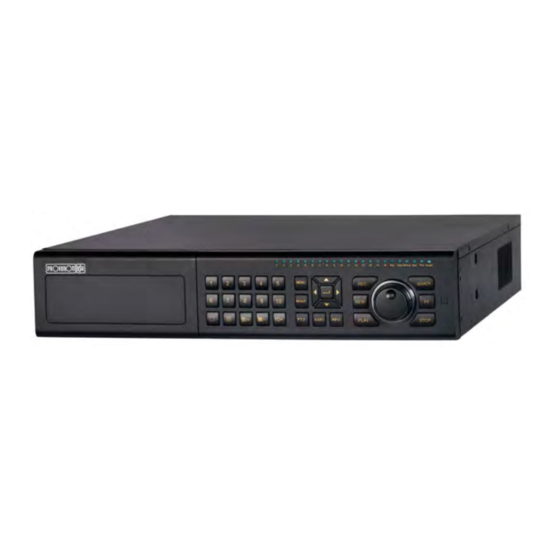

- Page 1 DVR User Manual For H.264 4/8/16/32-channel digital video recorder All rights reserved...
- Page 2 Digital Video Recorder User Manual CAUTION Please read this user manual carefully to ensure that you can use the device correctly and safely We do not warrant all the content is correct. The contents of this manual may be out-dated. This device should be operated only from the type of power source indicated on the marking label.
-
Page 3: Table Of Contents
Digital Video Recorder User Manual Table of Contents 1 Introduction ..............................1 1.1 DVR Introduction ................................1 1.2 Main Features ..................................1 2 Hardware Installation ..........................4 2.1 Install Hard Drive &DVD Writer ............................4 2.1.1 Install Hard Drive SA-4100N/SA-8200N/SA-16400NE/SA-4100HD(1U)/SA-8200HD(1U)................... 4 2.1.2 Install DVD Writer (SA-16400NE) ................................... - Page 4 Digital Video Recorder User Manual 2.5.1 Connect Mouse ........................................23 2.5.2 Use Mouse ..........................................23 3 Basic Function Instruction......................... 24 3.1 Power On/Off ..................................24 3.1.1 Power on ..........................................24 3.1.2 Power off ..........................................24 3.2 Login ....................................25 3.3 Live preview ..................................25 3.3.1 Live playback ..........................................
- Page 5 Digital Video Recorder User Manual 4.4.1 Schedule ..........................................36 4.4.2 Motion ............................................. 38 4.4.3 Sensor ............................................. 38 4.5 Alarm configuration ................................39 4.5.1 Sensor ............................................. 39 4.5.2 Motion ............................................. 41 4.5.3 Video loss ..........................................43 4.5.4 Other alarm ..........................................44 4.5.5 Alarm out ..........................................
- Page 6 Digital Video Recorder User Manual 6.1 Check system information ..............................63 6.1.1 System information ......................................... 63 6.1.2 Event information........................................63 6.1.3 Log information ........................................63 6.1.4 Network information ....................................... 63 6.1.5 Online information ........................................63 6.2 Manual alarm ..................................63 6.3 Disk management ................................
- Page 7 Digital Video Recorder User Manual 8.4 By Phones with Windows mobile ............................90 8.5 By Phones with Symbian ..............................91 8.6 Installation and operation Methods for BlackBerry Mobile phone Client ..............93 8.6.1 Installation instruction for BlackBerry Mobile phone Client ........................... 93 8.6.2 Operation method for Blackberry mobile phone client ............................
-
Page 8: Introduction
Digital Video Recorder User Manual Introduction 1.1 DVR Introduction These model DVRs (Digital Video Recorder) are designed specially for CCTV system. The device contains high performance video processing chips and an embedded Linux system, it utilizes advanced standard technologies, such as H.264 with low bit rate, Dual stream, SATA interface, VGA output mouse supported, IE browser supported with full remote control, mobile view (by phones) and more. - Page 9 Digital Video Recorder User Manual • Supports zoomX4 option during playback BACKUP • Supports USB 2.0 devices for backup. • SA-16400NE/SA-16400HD(2U)/SA-32800 Supports installation of a built-in SATA DVD writer for backup. • Supports saving recorded files with AVI standard format for a remote computer through internet. •...
- Page 10 Digital Video Recorder User Manual PTZ CONTROL • Supports multiple PTZ protocols. • Supports 128 PTZ presets and 8 auto cruise tracks. • Supports remote PTZ control through internet. SECURITY • User management: log search, system setup, two way audio, file management, disk management, remote login, live view, manual record, playback, PTZ control and remote live view.
-
Page 11: Hardware Installation
Digital Video Recorder User Manual Hardware Installation Notice: Check the unit and the accessories after getting the DVR. shut down the device and unplug the power line before any new connections to other devices. Don't hot plug in/out 2.1 Install Hard Drive &DVD Writer 2.1.1 Install Hard Drive SA-4100N/SA-8200N/SA-16400NE/SA-4100HD(1U)/SA-8200HD(1U) Notice: 1. -
Page 12: Install Dvd Writer (Sa-16400Ne)
Digital Video Recorder User Manual 2.1.2 Install DVD Writer (SA-16400NE) Notice: 1. The DVD writers must be on the compatible devices list. Please refer to “Appendix C Compatible Devices” 2. This device is only for backup Step1: unplug from the power line, then unscrew and carefully open the top cover Step2: Connect the power and data cables, and then place the DVD writer on the bottom case as Fig2.3. - Page 13 Digital Video Recorder User Manual install eight SATA hard drives or four SATA hard drives plus one DVD writer. Here take eight SATA hard drives installation for example). Use the hard drive on the compatible devices list. Please refer to “Appendix C Compatible devices”. 2.
- Page 14 Digital Video Recorder User Manual Step 4: Install other three HDD under the upper iron bar as shown below:...
-
Page 15: Install Dvd Writer (Sa-16400Hd(2U)/Sa-32800)
Digital Video Recorder User Manual 2.1.5 Install DVD Writer (SA-16400HD(2U)/SA-32800) Step 1: Unscrew and open the case. Then unscrew the screws on both sides to remove the upper bar as shown below: Step 2: Install the DVD holder that came with the device. Please let the screw holes of the DVD aim and the bolts. Try to place the holder farther away from the front and then screw firmly. -
Page 16: Front Panel Descriptions
Digital Video Recorder User Manual Front Panel Descriptions: 2.2.1 Front Panel Descriptions (SA-16400NE): Item Name Description Type Work state Power Power indicator, when connection , the light is blue indicator When HDD is writing and reading , the light is blue When access to network , the light is blue Backup When backup files and data, the light is blue... -
Page 17: Front Panel Descriptions (Sa-4100N/Sa-8200N/Sa-16400N)
Digital Video Recorder User Manual Front Panel Descriptions (SA-4100N/SA-8200N/SA-16400N): 2.2.2 Type Item Name Description Work state Power Power indicator, when connection , the light is blue indicator When HDD is writing and reading , the light is blue When access to network , the light is blue Backup When backup files and data, the light is blue Play... -
Page 18: Front Panel Descriptions Sa-4100Hd(1U)/Sa-8200Hd(1U)
Digital Video Recorder User Manual Front Panel Descriptions SA-4100HD(1U)/SA-8200HD(1U) 2.2.3 Item Name Description Type Work state Power Power indicator, when connection , the light is blue indicator When HDD is writing and reading , the light is blue When access to network , the light is blue Backup When backup files and data, the light is blue Play... - Page 19 Digital Video Recorder User Manual Front Panel Description (SA-16400HD(2U)/SA-32800) 2.2.4 Name Item Function Power Button Soft switch off to stop firmware running. Do it before power off. DVD button Press this button, user can place the DVD to do backup. Keys 0-9 Input number 1-9 or choose camera (0/——)
- Page 20 Digital Video Recorder User Manual Name Item Function Function button MENU Enter menu in live INFO Check data, same as: Main menu=>Information BACKUP Enter backup mode in live SEARCH Enter search mode Rewind Fast forward Record manually PLAY Play/Pause STOP Stop/Esc Jog dial Control rewind/fast forward/frame when playing the image.
-
Page 21: Rear Panel Descriptions
Digital Video Recorder User Manual 2.3 Rear Panel Descriptions Rear Panel Description (SA-4100N) 2.3.1 Fig 2.3 Rear Panel Descriptions (SA-4100N): Item Name Description Video out Connect to monitor Connect to monitor as an AUX output channel by channel. Only Spot out video display, no menu show Audio out Audio output, connect to the sound box... -
Page 22: Rear Panel Description (Sa-8200N)
Digital Video Recorder User Manual Rear Panel Description (SA-8200N) 2.3.2 Fig 2.4 Rear Panel Descriptions SA-8200N): Item Name Description Video out Connect to monitor Connect to monitor as an AUX output channel by channel. Only Spot out video display, no menu show Audio out Audio output, connect to the sound box Video in... -
Page 23: Rear Panel Description (Sa-16400N)
Digital Video Recorder User Manual Rear Panel Description (SA-16400N) 2.3.3 Fig 2.3 Rear Panel for 16-ch Item Name Description Audio out Audio output, connect to the sound box Audio in 4 CH Audio input VGA port VGA output, connect to monitor Video out Connect to monitor Connect to speed dome... -
Page 24: Rear Panel Description (Sa-16400Ne)
Digital Video Recorder User Manual Rear Panel Description (SA-16400NE) 2.3.4 Fig 2.7 Rear Panel Description (SA-16400NE) Item Name Description Connect to speed dome (RS485 PTZ cameras and keyboard) Connect to keyboard ALARM IN Connect to external sensor1-16 HDMI port Connect to high-definition display device (optional) Network port VGA port VGA output, connect to monitor... -
Page 25: Rear Panel Description (Sa-4100Hd(1U))
Digital Video Recorder User Manual 2.3.5 Rear Panel Description (SA-4100HD(1U)) The rear Panel interface for 4-ch is shown as Fig 2.5: Fig 2.5 Rear Panel Description (SA-4100HD(1U)) Item Name Description Connect to speed dome (RS485 PTZ cameras and keyboard) Connect to keyboard ALARM IN Connect to external sensor1-4 HDMI port... -
Page 26: Rear Panel Description (Sa-8200Hd(1U))
Digital Video Recorder User Manual 2.3.6 Rear Panel Description (SA-8200HD(1U)) Fig 2.6 Rear Panel Description (SA-8200HD(1U)) Item Name Description Connect to speed dome (RS485 PTZ cameras and keyboard) Connect to keyboard ALARM IN Connect to external sensor1-8 HDMI port Connect to high-definition display device (optional) Network port VGA port VGA output, connect to monitor... -
Page 27: Rear Panel Description (Sa-16400Hd(2U)/Sa-32800)
Digital Video Recorder User Manual 2.3.7 Rear Panel Description (SA-16400HD(2U)/SA-32800) Fig2.1 Rear Panel Description (SA-16400HD(2U)/SA-32800) Item Name Description Video out Connect to monitor Video in Video input channels(from 1-24 for 24-ch DVR/ 1-32 for 32-ch DVR) POWER INPUT AC 110Vor 110V Spot An AUX output channel by channel (no multiscreen). -
Page 28: Remote Controller
Digital Video Recorder User Manual 2.4 Remote Controller The remote requires two AAA size batteries. For installing the batteries open the battery cover on the Remote Controller, place two batteries according to the correct polarity marked on the remote (+ and -), then fasten the battery cover to back its place. Notice: if the remote is not working follow those steps: 1. - Page 29 Digital Video Recorder User Manual Item Name Function Power Button Soft switch off to stop firmware running. Do it before power off. INFOR Button Get information about the DVR like firmware version, HDD information REC Button To record manually Digital Button Input digital or choose camera Multi Screen Button To choose multi screen display mode...
-
Page 30: Control With Mouse
Digital Video Recorder User Manual 2.5 Control with Mouse 2.5.1 Connect Mouse The DVR supports USB mouse through the ports on the rear panel, please refer to Fig 2.8. Notice: If mouse is not detected or doesn't work: 1. Make sure the mouse is plugged to the correct USB mouse port not the USB port 2. Replace the mouse 2.5.2 Use Mouse In live: Double-click (left button) on one camera screen for full screen display. -
Page 31: Basic Function Instruction
Digital Video Recorder User Manual Basic Function Instruction 3.1 Power On/Off Before you power on the unit, please make sure all the cables are connected properly. 3.1.1 Power on Step1: Plug in the power; switch on the power button (16-channel DVR only) Step2: The device will start loading, and the power indicator will have blue color. -
Page 32: Login
Digital Video Recorder User Manual 3.2 Login You can login and logout from the DVR system. After logout the user cannot operate except changing the multi-screen display. Fig 3-1 Login ” Notice: The default user name is "admin" and the password is "123456 To change the password, or to add or delete a user refer to Fig 4.7 "User management configuration". -
Page 33: Live Playback
Digital Video Recorder User Manual 3.3.1 Live playback Click Play button to playback recordings. You can change settings by clicking on the buttons on screen. Fig 3-3 live playback... -
Page 34: Main Menu Setup Guide
Digital Video Recorder User Manual Main menu setup guide Click right mouse or press ESC button on the front panel: the control bar will appear on the bottom of the screen, refer to Fig 4-1: Fig 4-1 main menu toolbar Click the icon beside "screen mode"... -
Page 35: Basic Configuration
Digital Video Recorder User Manual Fig 4-2 main menu configuration menu 4.1 Basic configuration The basic configuration has three sub menus: system, date& time and DST. 4.1.1 System Step1: enter into system configuration=>basic configuration=>system; refer to Fig 4-3: Step2: in this interface you can setup the device name, device ID, video format, max network users, VGA resolution and language. -
Page 36: Time & Date
Digital Video Recorder User Manual Password check: enabling this option prompts user name and password before user can perform operations on the DVR. Show time: displays the time in live view. Show wizard: This option enables the wizard on startup. Max network uses: set the maximum simultaneous users via network connection VGA resolution: the resolution of live display interface, range from: VGA800*600, VGA1024*768, VGA1280*1024 and CVBS. -
Page 37: Dst
Digital Video Recorder User Manual 4.1.3 DST System configuration=>basic configuration=>DST; refer to Fig 4-5: In this interface you can enable daylight saving time, set the DST time offset, mode, start & end month/week/date. Reset default setting; click the “default” button and then “apply”... -
Page 38: Main Monitor
Digital Video Recorder User Manual Fig 4-6 live configuration live Fig 4-7 live-color adjustment Step3: clicking the “setting” button will pop-up a window (Fig 4-7) in this interface, you can adjust brightness, hue, saturation and contrast in live. The “default” button will restore the DVR to default live setting, click “OK” button to save the setting. Step4: you can setup all channels with same parameters by marking “all”, and then "Apply". -
Page 39: Spot
Digital Video Recorder User Manual Click button to set the next channel group. Step5: click “default” button to resort default setting; click “apply” button to save the setting; click “exit” button to exit current interface. 4.2.3 Spot Step1: enter into system configuration live configuration Spot; refer to Fig 4-9: Step2: select split mode: 1×1and channel Step3: dwell time: the time interval for a certain dwell picture display switching to next dwell picture display... -
Page 40: Record Configuration
Digital Video Recorder User Manual Setup mask area Live image mask area 4.3 Record configuration Record configuration includes six sub menus: enable, record bit rate, time, recycle record, stamp and snap for NE or HD series. 4.3.1 Enable Step1: enter into system configuration record configuration enable; refer to Fig 4-11: Parameter Meaning Record... -
Page 41: Record Stream
Digital Video Recorder User Manual 4.3.2 Record stream Step1: go to system configuration record configuration record bit rate; refer to Fig 4-12: Step2: setup rate, resolution, quality, encode and max bit stream Step3: setup every channel with the required parameters, or mark “All” and set to apply the changes to all channels. Reset default setting;... -
Page 42: Stamp
Digital Video Recorder User Manual Expire time: the maximum time a recording will be in the system. If the set date is overdue, the record files will be deleted automatically. To setup all channels with the same parameters mark “all” and then click "apply". Reset default setting;... -
Page 43: Recycle Record
Digital Video Recorder User Manual Before repositioning after repositioning 4.3.5 Recycle record System configuration => record configuration => recycle record; mark "recycle record" to enable recycle recording. When the disk is full the new files will overwrite the earliest files and keep recoding after the HDD is full; if You disable this function the DVR will stop recording when the HDD is full. - Page 44 Digital Video Recorder User Manual Fig 4-15 schedule configuration-schedule Step2: select channel and double-click to pop up a window as Fig 4-16. Now you can edit week schedule: Fig 4-16 schedule-week schedule Press the “add” button to add a certain day schedule or press the “delete” button to delete the selected schedule; •...
-
Page 45: Motion
Digital Video Recorder User Manual Click “OK” button to save the setting; click “Exit” button to exit current interface. If the user wants to apply the schedule setting of certain channel to other or all channels, he needs to select channel and •... -
Page 46: Alarm Configuration
Digital Video Recorder User Manual 4.5 Alarm configuration Alarm configuration includes five sub menus: sensor, motion, video loss, other alarm and alarm out. 4.5.1 Sensor Sensor includes three sub menus: basic, alarm handling and schedule. Basic • system configuration => alarm configuration => sensor => basic;... - Page 47 Digital Video Recorder User Manual Fig 4-20 alarm handling-trigger Fig 4-21 alarm configuration-sensor-alarm handling Full screen alarm: when alarm is triggered, there will pop up full screen alarm; Email: Select this function. When an alarm is triggered, a notification email will be sent to the designated email box including trigger events, time, snap pictures, device name, ID camera name etc.
-
Page 48: Motion
Digital Video Recorder User Manual Schedule • System configuration => alarm configuration => sensor => schedule; Refer to Fig 4-22: The setup steps of sensor schedule are similar with all schedules; Refer to 4.4.1 Schedule for details. Note: the default schedule of sensor is to be always on: the color of schedule setting interface is blue. - Page 49 Digital Video Recorder User Manual Next: click Area button, a dialog box will pop-up as Fig 4-24 a and 4-24b. To set the sensitivity value (1-8) drag the slide bar in the Area interface, the default value is 6. The higher the value the higher the sensitivity to movement.
-
Page 50: Video Loss
Digital Video Recorder User Manual setup channels with same parameters choose “all” then apply to save relevant setup to all channels Reset default setting; click the “default” button and then “apply” button to save the setting. Press the “exit” button to exit current interface. -
Page 51: Other Alarm
Digital Video Recorder User Manual 4.5.4 Other alarm First enter into system configuration other alarm; refer to Fig 4-27: Disk full: You can choose the capacity of the disk storage and select the related alarm. If the disk is full, the system will perform according to the setup. -
Page 52: Alarm Out
Digital Video Recorder User Manual 4.5.5 Alarm out Alarm out includes three sub menus: alarm out, schedule and buzzer Alarm out • System configuration => alarm out; refer to Fig 4-28: You can set relay alarm out name and select hold time (the interval time between the two adjacent alarms). -
Page 53: Network Configuration
Digital Video Recorder User Manual 4.6 Network configuration Network configuration includes four submenus: network, sub stream, Email and other settings. 4.6.1 Network Step 1: Main menu => system configuration => network configuration => network; refer to Fig4-29: The default HTTP port is 80. If the value has changed, you need to add the port number after the IP address;... -
Page 54: Sub Stream
Digital Video Recorder User Manual 4.6.2 Sub stream System configuration => network configuration => sub stream; refer to Fig 4-30: select fps, resolution, quality, encode and max bit rate To setup all channels with the same parameters choose “all” then apply to save relevant setup to all channels. Reset default setting;... -
Page 55: Email
Digital Video Recorder User Manual 4.6.3 Email system configuration => network configuration => email; refer to Fig 4-31 SMTP Server/Port: the name and port number of SMTP server. After selecting “This server requires a secure connection (SSL)”, You can setup mail servers (such as Gmail) according to the e-mails providers requirements Send address and password: sender’s account details. - Page 56 Digital Video Recorder User Manual Note: The domain name server that selected by user is a banding domain name of DVR. User should logon the website which provided by the server supplier to register a user name and password firstly, and then apply for a domain name on line.
- Page 57 Digital Video Recorder User Manual If “Show icons for networked UPnP devices” can’t display in the “Network Tasks” list box, please follow the below operation: Click “Tools”- “Folder options” Select the “Show common tasks in folders” in the “Tasks” check box to display the UPnP icon. 1．...
- Page 58 Digital Video Recorder User Manual After user fill in the blank, click “Add to cart”. Then Dynamic DNS Hosts dialog box will be displayed. Next, create user account. For example, the username is “bcd”, password is “123456”. Click” Create Account” button to create user account. 2．...
-
Page 59: User Management Configuration
Digital Video Recorder User Manual （2） Username and password According to the above registration, username is “bcd”. According to the above registration, password is “123456” 3． Application Connect DVR to the Network Client. Enter into Main menu Network other settings, mark DDNS, select “Dyndns” at the DDNS Sever pull down list box and •... - Page 60 Digital Video Recorder User Manual Fig 4-33 user management configuration Fig 4-34 add-general ① General: Input user name, password; select user type: normal and advance, input the MAC address of the PC; click OK button. Then this user will be added into the user list box; click Exit button to exit the current interface. Note: when the default value of binding PC MAC address is 0, the user is not bound to a computer;...
-
Page 61: Configuration
Digital Video Recorder User Manual 4.8 P.T.Z configuration P.T.Z configuration includes two submenus: serial ① Serial port port and advance port; Refer to Fig 4-36: mark "Enable" and then setup the value of that camera (address, baud rate and protocol according to the settings of the speed dome). To setup all channels with the same parameters choose “all”... - Page 62 Digital Video Recorder User Manual Fig 4-37 P.T.Z configuration-advance Fig 4-38 advance-preset setting a. in the preset set interface, while clicking Setting button, a dialog will pop-up as Fig 3-39: Fig 4-39 preset set-setting b. user can control the dome rotates up, up left, down, right down, left , left down, right and up right and stop rotating; adjust the rotate speed and the value of zoom, focus and iris of the dome;...
- Page 63 Digital Video Recorder User Manual Step 3: in the Advance interface, click the cruise “Setting” button, a dialog box will pop-up as in Fig 4-40: Fig 4-40; cruise set a. click the "Add" button to add cruise line in the list box (max 8 cruise line can be added); select a cruise line and click Setup button to see a dialog box as Fig 4-41: b.
-
Page 64: Advanced
Digital Video Recorder User Manual Fig 4-42 track setting Fig 4-41 cruise set-modify cruise line d. user can control the dome rotation up, up left, down, right down, left, left down, right and up right and stop rotating; adjust the rotate speed and the value of zoom, focus and iris of the dome; click Start Record button to record the move track of PTZ;... -
Page 65: Block/Allow List (Ne Or Hd Series)
Digital Video Recorder User Manual 4.9.3 Block/Allow list (NE or HD Series) Fig 4-43 Block/Allow list The authorized user can block/allow users from accessing the DVR according to their IP address. For example, if authorized user wants to block computer users with IP addresses from 196.168.000.002 to 196.168.000.004, authorized user can mark Block list, and then input such IP address segment. -
Page 66: Record Search & Playback And Backup
Digital Video Recorder User Manual Record search & playback and backup Search configuration includes four submenus: time search, event search, file management and image. 5.1 Time search Search configuration => time search; Refer to Fig 5-1: Fig 5-1 Search configuration-time search select channel/s, screen display mode, (highlighted date in the calendar means there are recording on that date) . -
Page 67: Event Search
Digital Video Recorder User Manual Note: the vertical column represents the time (hours), while the horizontal column represents the channels. Another option is to click Play button to playback record on the main screen to start play of last 30 minutes. Playback buttons Note: when the monitor resolution is VGA800*600, the time search interface will appear a hide button, click this button, the whole interface can be expanded. -
Page 68: File Management
Digital Video Recorder User Manual Click on the "Search" button to display the event information in the event list box. Here you can select the date and channel. You can choose events by motion, sensor or All accordingly. Double clicking on a certain record file will start playback. Note: when the monitor resolution is VGA800*600, the event search button will appear as a small line. -
Page 69: Image (Ne Or Hd Series)
Digital Video Recorder User Manual Delete: select an unlocked file and click Delete button to delete this file. After selecting the “All” button user can lock, unlock or delete all files in the file management column. Double clicking an unlocked item will playback the event. 5.4 Image (NE or HD series) This option is used to set start, end time and channels to search the captured images and save, lock or delete these images. -
Page 70: Manage Dvr
Digital Video Recorder User Manual Manage DVR 6.1 Check system information Displays the system information. This includes five submenus: system, event, log, network and online user. 6.1.1 System information In this interface, user can check the hardware version, MCU version, kernel version, device ID, etc. 6.1.2 Event information This option is used to check data about recorded events according to the set date. -
Page 71: Disk Management
Digital Video Recorder User Manual 6.3 Disk management 1 1 1 1 ..Format the disk Go to "disk management" Note: please format the hard disk before starting a recording. If the disk is not formatted, it will show the status of the disk-free space, and total space show OM at the bottom of screen and the DVR will not record. -
Page 72: Remote Surveillance
Digital Video Recorder User Manual Remote Surveillance 7.1 IE Remote Surveillance To view the DVR from a network it must be connected to a modem or router through the LAN/WAN. The network setup should be done accordingly. Please refer to 4.6 Network Setup. This DVR supports IE browser, on Windows XP and Vista platform. - Page 73 Digital Video Recorder User Manual Step 6: IE will download ActiveX automatically. Then a window pops up and asks for user name and password. Input user name and password correctly, and enter to view. Note: If you cannot download and install ActiveX, please refer to Q&A. 2.
-
Page 74: Remote Surveillance Through Macintosh With Safari
Digital Video Recorder User Manual 7.2 Remote Surveillance through Macintosh with Safari: Note: Because the current plug-in version of client end just only supports 32-bit mode, so the safari browser shall start 32-bit mode. If the browser is the earlier MACOS version, the default setting is 32-bit mode and the setting can be skipped. The Setting steps are as follows: First: Right click safari icon and select “Show in Finder”. -
Page 75: On Lan
Digital Video Recorder User Manual 7.2.1 On LAN Step 1: After starting Apple computer, click icon. The following window will pop up. Please select “System Preferences” ”Internet &Wireless” click “Network”... - Page 76 Digital Video Recorder User Manual Step 2: Enter into Network interface and then click “Ethernet Connected” to check the internet connection of Apple PC. Step 3: After acquiring the IP address, Subnet Mask and so on, please enter into the DVR’s Main Menu Setup Network interface to manually input IP address, Subnet Mask and Gateway according to the configuration of PC.
-
Page 77: On Wan
Digital Video Recorder User Manual Step 5: Click icon and then select the Active X control, the welcome interface will be shown. Click “Continue” ”Install” button，the following window will pop up： Input the name and password of Apple PC and then click “OK” to install this Active X control. Step 6: After finishing installing the Active X control, please quit from the Safari browser. -
Page 78: The Remote Live Preview Interface
Digital Video Recorder User Manual 7.3 The remote live preview interface Fig 7-2 Remote live preview interface Symbol and function Definitions: ① ② ③ Channel indicator Screen display mode Volume ④ ⑤ ⑥ Snapping picture Start record Two way audio ⑦... - Page 79 Digital Video Recorder User Manual Note: click button to record manual and the record file will be saved in user’s PC. Screen display mode: Click the icon beside the screen display mode, channel select dialog will appear as below: Take 8-channel DVR for example: user can mark channels form 1-ch to 16-ch at random to display the live pictures, 8 channels can be selected at most.
- Page 80 Digital Video Recorder User Manual Please connect speed dome to the device via RS485 firstly, make sure the protocol of the speed dome is supported by the device and set the relative parameters manually. User can control the dome up, down, right, left or stop rotating on Control Center, adjust rotation speed, Iris and zoom, focus on the dome, and set the presets, etc.
-
Page 81: Remote Playback & Backup
Digital Video Recorder User Manual Click the right mouse on the live interface, a pull-down menu will appear as below Fig 7-4 right key sub menu Stream: this DVR supports master stream and sub stream. Master stream has higher frame rate, max 25FPS（PAL）/30 FPS （NTSC）for every channel, but it needs higher network bandwidth simultaneously;... - Page 82 Digital Video Recorder User Manual preview the picture. Fig 7-5 Play record file interface...
- Page 83 Digital Video Recorder User Manual This DVR supports remote time search, event search and file management. By Time Search: Step1: Enter into Search time search; refer to Fig 7-6: Fig 7-6 time search interface...
- Page 84 Digital Video Recorder User Manual Step2: click “Search” button. The record data will be displayed in the data information list box; the highlight date in the area② means have record data, click those data; select the record channels in area③ Step3: User can set the data playing time and display mode in the area①...
- Page 85 Digital Video Recorder User Manual By Event Search: Step1: Enter into Search event search; refer to Fig 7-8: Fig 7-8 event search interface Step2: click the highlight date and select record channels and then mark the event type: motion and sensor. Then click “search” button Step3: the events will be display in the event list box and then double-click certain item to playback...
- Page 86 Digital Video Recorder User Manual File Management Step1: Enter into Search file management; refer to Fig 7-9: Fig 7-9 file management interface Lock: select certain file item in the file list box and then click “Lock” button to lock this file that ca not be deleted or overlaid Unlock: select a locked file and then click “unlock”...
-
Page 87: Remote Backup
Digital Video Recorder User Manual 7.4.2 Remote backup Click Backup button to enter into backup interface, refers to Fig 7-10: Fig 7-10 remote backup interface Step1: select channels, set the start and end time and then click “search’ button to display the file information in the file list box Step2: select backup files and click “browse”... -
Page 88: Remote System Configuration
Digital Video Recorder User Manual 7.5 Remote System configuration User can remote setup the parameters of the device. Functions of remote configurations include: basic configuration, live configuration, record configuration, schedule configuration, alarm configuration, network configuration, PTZ configuration and user configuration. User should firstly select an item in the menu list on the left, and then setup the relative parameters. When one user setup parameters of a certain item, others cannot setup this one. -
Page 89: Remote Management
Digital Video Recorder User Manual 7.6 Remote Management Remote Information Search The system will automatically record the working condition and operation process during the period of work. User can view information, such as username, IP address and so on. Enter into INFO→Log. User can set the start time to view the log record as follows: Fig 7-12 Remote information search Note: There may be subtle differences with respect to functions of remote surveillance between through IE and through... -
Page 90: Mobile Surveillance
Digital Video Recorder User Manual M obile Surveillance This DVR supports mobil e surveillance by Iphone, e surveillance by Iphone, Android, blackberry or smart phones with Windows mobile and or smart phones with Windows mobile and Symbian OS, though the service may depend on the cellular service provider though the service may depend on the cellular service provider and 3G network availability and function availability and function . -
Page 91: Manual For Superlivepro 1.0
Digital Video Recorder User Manual Manual for SuperLivePro 1.0 Login interface Input server’s IP address (or domain name), user name and password Click “Remember server” to save the setting; click button user can quick input saved server address, user name and password.; If failed connecting, please check below points;... - Page 92 Digital Video Recorder User Manual Main screen Enlarge picture 2-way audio Color adjustment PTZ Presets...
- Page 93 Digital Video Recorder User Manual NavBar Icon meaning: Quick Launch Bar Instruction: Gestures instruction： 1.) Tap to select the current channel, double tap the live Tap to select the current channel, double tap the live image to swtich to single channel or multi channel to single channel or multi channel displaying.
- Page 94 Digital Video Recorder User Manual Using the playback interface you can playback files on the DVR, follow the next steps just like on the web or local interface: you can playback files on the DVR, follow the next steps just like on the web or local interface: you can playback files on the DVR, follow the next steps just like on the web or local interface: Search menu Time search...
- Page 95 Digital Video Recorder User Manual Configuration and information interface to change DVR settings to change DVR settings : Settings menu Basic menu Record menu Network menu Email menu menu System menu System menu Network menu Online users...
- Page 96 Digital Video Recorder User Manual Device list interface for quick login (figure 8.1.8 for quick login (figure 8.1.8 -8.1.9): Fig. 8.1.8 Fig. 8.1.8 Fig. 8.1.9...
-
Page 97: By Phones With Windows Mobile
Digital Video Recorder User Manual 8.4 By Phones with Windows mobile Step1： Firstly activate the network access on mobile phone and then run “Internet Explorer”. Input the server’s address and the connection is built up shown as below picture in the left: Step2：Click on the software name. -
Page 98: By Phones With Symbian
Digital Video Recorder User Manual Notice: User name password here are the same with that used on the DVR. The default is admin and 123456. 8.5 By Phones with Symbian Please use the smart phones with symbian version supported by this unit. The detail information is as follows: Symbian S40 support Symbian UIQ... - Page 99 Digital Video Recorder User Manual Step3：A welcome window will pop up and requires a package. Click the software name to download. Refer picture in the right: Step4：A security windows will pop up after downloading and ask if install the package. Click YES to install. Step5：A Scam shortcut icon appears on the system menu after finished.
-
Page 100: Installation And Operation Methods For Blackberry Mobile Phone Client
Digital Video Recorder User Manual Notice: User name and password here are the same with that used on the DVR. The default is admin and 123456. Step10：In Live View, users can do snapshot, change channels and control PTZ. Refer picture in the right: 8.6 Installation and operation Methods for BlackBerry Mobile phone Client 8.6.1 Installation instruction for BlackBerry Mobile phone Client 1. - Page 101 Digital Video Recorder User Manual 4. Finished downloading, the software will be installed automatically. Note: If the software fails to download, please check in accordance with the following steps: Check whether the network of mobile phone is normal or not Check whether DVR server connect network normally or not Modify the option of Browser Configuration.
-
Page 102: Operation Method For Blackberry Mobile Phone Client
Digital Video Recorder User Manual Note： ： ： ： When user used the SuperCam software in mobile phone with touch screen, there will be compatible problem. When user used the SuperCam software in mobile phone with touch screen, there will be compatible problem. When user used the SuperCam software in mobile phone with touch screen, there will be compatible problem. - Page 103 Digital Video Recorder User Manual Main interface Playback Image playback record file image view Server List log record device list Information device information Help software help view center Logoff Settings logoff and return to software setting login interface Live live view Live view...
- Page 104 Digital Video Recorder User Manual Note: User can click Return button on the Blackberry phone to return the previous interface. button on the Blackberry phone to return the previous interface. Mark 1 Current viewing channel Current viewing channel Mark 2 Channel status Switch channels PTZ, click to switch to Fig 2 interface...
- Page 105 Digital Video Recorder User Manual Server list Software configuration Information view...
-
Page 106: Appendix A Q&A
Digital Video Recorder User Manual Appendix A Q&A Q1. Why can't the DVR start after connecting to the power? a. The adapter has been damaged or is malfunctioned, change power adapter. b. The HDD might be malfunctioning Please remove the HDD to check. Q2. - Page 107 Digital Video Recorder User Manual Q6. Cannot record a. HDD not formatted. Format it manually to FAT32 first. b. The record function is disabled or the setup is not correct. Please refer to Chapter 5 Record, search, playback and backup. c.
- Page 108 Digital Video Recorder User Manual ② select Security------Custom Level….Refer to Fig 8-1 ③ Enable all the sub options under “ActiveX controls and plug-ins” refer to Fig 8-2 ④ Then click ok to finish setup. b. Other plug-ins or anti-virus block activeX. Please uninstall or close them. Fig8-1 Fig8-2...
- Page 109 Digital Video Recorder User Manual Q9: when DVR starts, it displays “please wait…” all the time First possible reason: hard-disk cable and data cable connected properly. Solution: unplug the DVR from the power and then check the connection of the hard-disk cable and data cable and make sure they are well connected;...
- Page 110 Digital Video Recorder User Manual Q12: What are the minimum configurations of PC for clients connecting? PC Module Parameters Intel Celeron 2.4G Motherboard Intel 845 512M NVIDIA GeForce MX440/FX5200 ATIRADEON 7500/X300 Windows 2000(SP4 above) /Windows XP(SP2 above) /VISTA DirectX Q13: What are the PC configurations for 16-ch real time product with fully open channel mainstream? PC Module Parameters Intel Core(TM)2 Duo CPU E4600...
- Page 111 Digital Video Recorder User Manual a. Enter Control Panel User Account and Family Safety User Account Control(refer to below picture); click Turn User Account on or off. Cancel Use User Account Control (UAC) to help protect your computer. b. Right click IE browser (refer to Fig 14-2), select Run as administrator to run browser.
-
Page 112: Appendix B Calculate Recording Capacity
Digital Video Recorder User Manual Appendix B Calculate Recording Capacity Users can calculate the size of hard disk according to the saving time and DVR recording settings. The DVR uses fixed video bit rate. The below are the details at different settings. Frame Rate Bit Rate... -
Page 113: Appendix C Compatible Devices
Digital Video Recorder User Manual Appendix C Compatible Devices 1. Verified & compatible USB drives (Format only to FAT32) Brand Capacity 512MB, 1G, 2GB Netac Kingston 2GB, 4GB Aigo Smatter vider SanDisk 2. Verified & compatible SATA CD/DVD writers (only for backup) Brand Model TECLAST... - Page 114 Digital Video Recorder User Manual 3. Verified & compatible HDD list Brand Capacity Seagate Barracuda LP ST3200542AS Seagate Barracuda 7200.11 ST31500341AS 1.5T Seagate SV35.3 ST31000340SV Seagate Pipeline HD.2 500G Seagate Barracuda 7200.10 320G Seagate Barracuda 7200.10 ST3250310AS 250G Seagate Barracuda 7200.11 ST3160813AS 160G Seagate Barracuda 7200.10 ST380815AS Maxtor Diamondmax 21 STM3160215AS...
-
Page 115: Appendix Dsa-16400Ne/Sa-16400N Specifications
Digital Video Recorder User Manual Appendix D SA-16400NE/SA-16400N Specifications Compression format H.264 Main Profile Video output Composite：1.0V p-p/75 BNC×2, VGAX1 Video Input Composite：1.0V p-p/75 BNC×16 VGA Resolution 1280*1024 /1024*768/ 800*600 Record Resolution 352*288/704*576 (PAL), 352*240/704*480(NTSC) Display Frame Rate 400FPS (PAL), 480FPS (NTSC) Record Frame Rate 400/100FPS (PAL),... -
Page 116: Appendix Esa-8200N Specifications
Digital Video Recorder User Manual Appendix E SA-8200N Specifications Compression format Standard H.264 Baseline Composite：1.0V p-p/75 BNC×2 , VGAX1 Video output Composite：1.0V p-p/75 BNC×8 Video input VGA Resolution 1280*1024 /1024*768/ 800*600 Record Resolution 352*288/704*576 (PAL), 352*240/704*480(NTSC) Display Frame Rate 200FPS (PAL), 240FPS (NTSC) Record Frame Rate 200FPS (PAL),... - Page 117 Digital Video Recorder User Manual Appendix F SA-4100N Specifications Compression format Standard H.264 Baseline Composite：1.0V p-p/75 BNC×2 , VGAX1 Video output Composite：1.0V p-p/75 BNC×4 Video input VGA Resolution 1280*1024 /1024*768/ 800*600 Record Resolution 352*288/704*576 (PAL), 352*240/704*480(NTSC) Display Frame Rate 100FPS (PAL), 120FPS (NTSC) Record Frame Rate 100FPS (PAL),...
-
Page 118: Appendix Gsa-4100Hd(1U) Specifications
Digital Video Recorder User Manual Appendix G SA-4100HD(1U) Specifications Compression format H.264 Main Profile Composite：1.0V p-p/75 BNC×2 , VGAX1 Video output Composite：1.0V p-p/75 BNC×4 Video input VGA Resolution 1280*1024 /1024*768/ 800*600 Record Resolution 352*288/704*576 (PAL), 352*240/704*480(NTSC) Display Frame Rate 100FPS (PAL), 120FPS (NTSC) Record Frame Rate 100FPS (PAL),... - Page 119 Digital Video Recorder User Manual Appendix H SA-8200HD(1U) Specifications Compression format H.264 Main Profile Composite：1.0V p-p/75 BNC×2 , VGAX1 Video output Composite：1.0V p-p/75 BNC×8 Video input VGA Resolution 1280*1024 /1024*768/ 800*600 Record Resolution 352*288/704*576 (PAL), 352*240/704*480(NTSC) Display Frame Rate 200FPS (PAL), 240FPS (NTSC) Record Frame Rate 200FPS (PAL),...
-
Page 120: Appendix Isa-16400Hd(2U) Specifications
Digital Video Recorder User Manual Appendix I SA-16400HD(2U) Specifications Compression format H.264 Main Profile Video output Composite：1.0V p-p/75 BNC×2, VGAX1 Video Input Composite：1.0V p-p/75 BNC×16 VGA Resolution 1280*1024 /1024*768/ 800*600 Record Resolution 704*576/352*288 (PAL), 704*480/352*240 (NTSC) Display Frame Rate 400FPS (PAL), 480FPS (NTSC) Record Frame Rate 400FPS (PAL),... -
Page 121: Appendix K 32-Channel Dvr Specifications
Digital Video Recorder User Manual Appendix K SA-32800 Specifications Compression format Standard H.264 Baseline Video output Composite：1.0V p-p/75 BNC×2, VGAX1 Video Input Composite：1.0V p-p/75 BNC×32 VGA Resolution 1280*1024 /1024*768/ 800*600 Record Resolution 352*288/704*576 (PAL), 352*240/704*480(NTSC) Display Frame Rate 800FPS (PAL), 960FPS (NTSC) Record Frame Rate 800FPS (PAL),...
