Disassembly

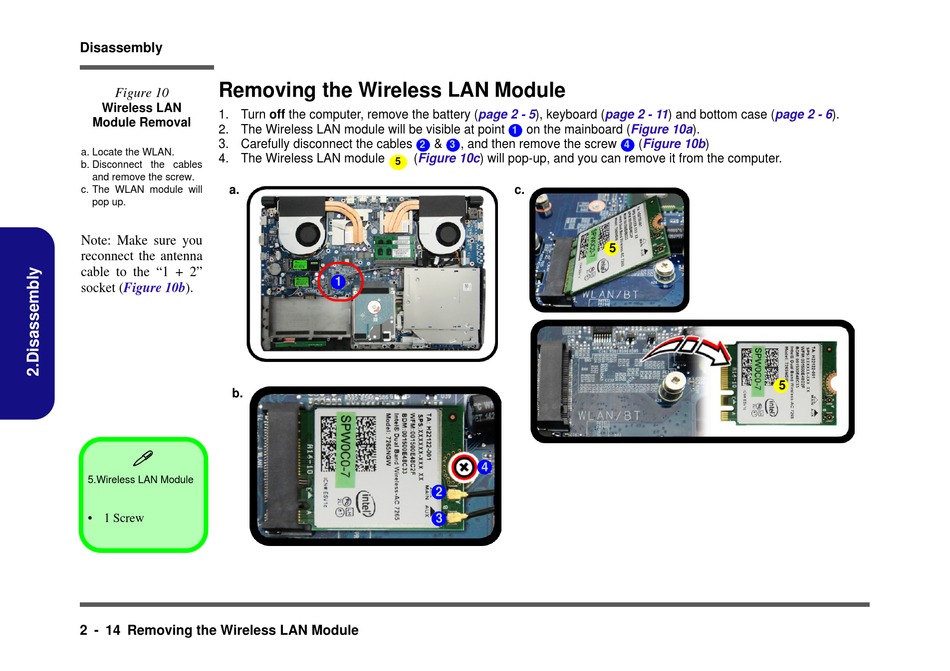

Removing the Wireless LAN Module

Figure 10
Wireless LAN
1. Turn off the computer, remove the battery
Module Removal
2. The Wireless LAN module will be visible at point
3. Carefully disconnect the cables
a. Locate the WLAN.
4. The Wireless LAN module
b. Disconnect the cables
and remove the screw.
c. The WLAN module will a.
pop up.
Note: Make sure you
reconnect the antenna
cable to the "1 + 2"
socket (Figure 10b).
b.

5.Wireless LAN Module
• 1 Screw
2 - 14 Removing the Wireless LAN Module
(page 2 -
1
& , and then remove the screw
2 3
(Figure 10c) will pop-up, and you can remove it from the computer.
5
c.
1
4
2
3
5), keyboard (page 2 - 11) and bottom case
on the mainboard (Figure 10a).
(Figure 10b)
4
5
(page 2 - 6).
5
