Removing The Wireless Lan Module - EUROCOM P180HM Service Manual

Disassembly

Removing the Wireless LAN Module

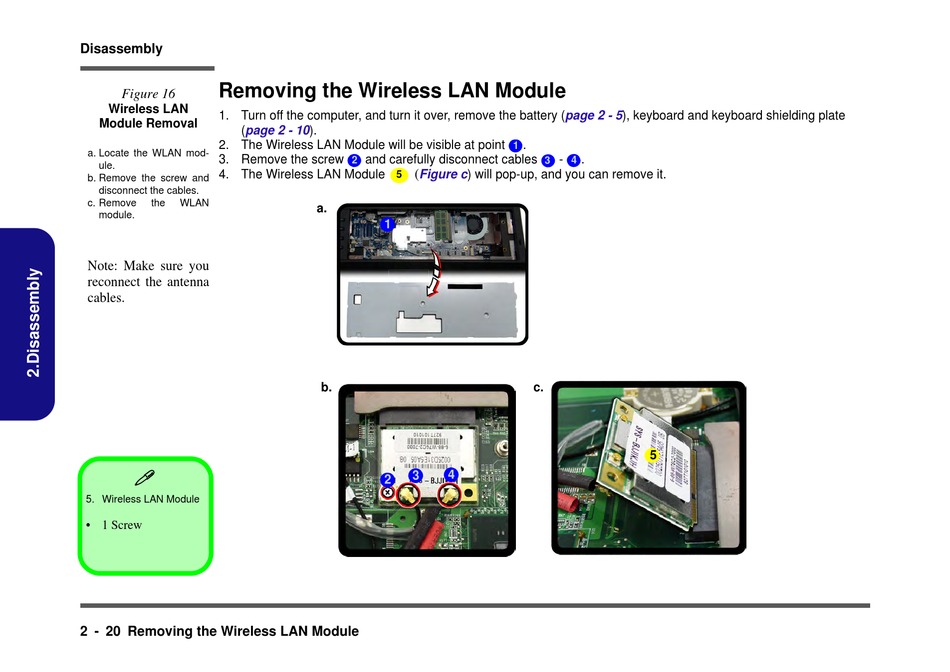

Figure 16
Wireless LAN
1. Turn off the computer, and turn it over, remove the battery
Module Removal
(page 2 -
2. The Wireless LAN Module will be visible at point
a. Locate the WLAN mod-
3. Remove the screw
ule.
4. The Wireless LAN Module
b. Remove the screw and
disconnect the cables.
c. Remove the WLAN
module.
Note: Make sure you
reconnect the antenna
cables.

5. Wireless LAN Module
• 1 Screw
2 - 20 Removing the Wireless LAN Module
10).
and carefully disconnect cables
2
(
Figure c) will pop-up, and you can remove it.
5
a.
1
b.
4
3
2
(page 2 - 5), keyboard and keyboard shielding plate
.
1
- .
3 4
c.
5
