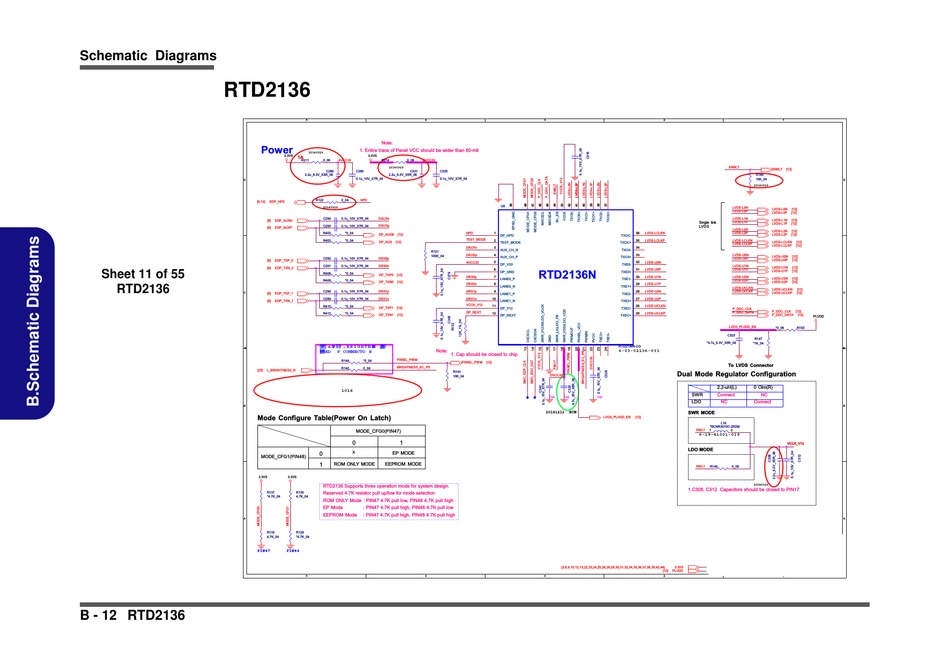

Schematic Diagrams

RTD2136

D
[6,12]
Sheet 11 of 55
RTD2136
C
[25]
B
Mode Configure Table(Power On Latch)
3.3VS
A
PIN47
B - 12 RTD2136
5 4
Note:
Power
1. Entire trace of Panel VCC should be wider than 80-mil
20140929
3.3VS 3.3VS
1A
R211 0_06 AVCC33 R214 0_06 DVCC33
20140929
C286 C280 C331 C325
2.2u_6.3V_X5R_06 2.2u_6.3V_X5R_06
0.1u_10V_X7R_04 0.1u_10V_X7R_04
R122 0_04 HPD
EDP_HPD
20140929
C294 0.1u_10V_X7R_04 DAUXn
[6] EDP_AUXN
C293 0.1u_10V_X7R_04 DAUXp
[6] EDP_AUXP
R402 *0_04
DP_AUX# [12]
R403 *0_04
DP_AUX [12]
R121
100K_04
C292 0.1u_10V_X7R_04 DRX0p
[6] EDP_TXP_0
C291 0.1u_10V_X7R_04 DRX0n
[6] EDP_TXN_0
R406 *0_04
DP_TXP0 [12]
R408 *0_04
DP_TXN0 [12]
C290 0.1u_10V_X7R_04 DRX1p
[6] EDP_TXP_1
C289 0.1u_10V_X7R_04 DRX1n
[6] EDP_TXN_1
R410 *0_04
DP_TXP1 [12]
R412 *0_04
DP_TXN1 [12]
e D P , B R I G H T N E S S
ED P CONNECTO R Note:
PANEL_PW M
R144 *0_04
BRIGHTNESS_EC_PS
R142 0_04
L_BRIGHTNESS_R
1016
MODE_CFG0(PIN47)
0 1
0 X EP MODE
MODE_CFG1(PIN48)
1 ROM ONLY MODE EEPROM MODE
3.3VS
RTD2136 Supports three operation mode for system design.
R137 R135 Reserved 4.7K resistor pull up/low for mode selection
*4.7K_04 4.7K_04
ROM ONLY Mode : PIN47 4.7K pull low, PIN48 4.7K pull high
EP Mode : PIN47 4.7K pull high, PIN48 4.7K pull low
EEPROM Mode : PIN47 4.7K pull high, PIN48 4.7K pull high
R133 R129
4.7K_04 *4.7K_04
PIN48
5 4
3
U8
HPD 1
DP_HPD TXOC-
TEST_MODE
2
TEST_MODE TXOC+
DAUXn 3
AUX_CH_N TXO3-
DAUXp 4
AUX_CH_P TXO3+
AVCC33 5
DP_V33 TXE0-
6
RTD2136N
DP_GND TXE0+
DRX0p 7
LANE0_P TXE1-
DRX0n 8
LANE0_N TXE1+
DRX1p 9
LANE1_P TXE2-
10
DRX1n
LANE1_N TXE2+
VCCK_V12
11
DP_V12 TXEC-
DP_REXT
12
DP_REXT TXEC+
RTD2136N-CG
6-03-02136-031
1. Cap should be closed to chip
PANEL_PW M [12]
R143
DVCC33
10K_04
Cap Cap Cap
20141211 BCN
LVDS_PLVDD_EN
[3,6,9,10,12,13,22,23,24,25,26,28,29,30,31,32,34,35,36,37,38,39,42,44]
3
2 1
ENBLT
ENBLT [12]
R145
10K_04
20140929
LVDS-L0N
LVDS-L0N [12]
LVDS-L0P
LVDS-L0P [12]
LVDS-L1N
LVDS-L1N [12]
Single link LVDS-L1P
LVDS-L1P [12]
LVDS
LVDS-L2N
LVDS-L2N [12]
36 LVDS-LCLKN LVDS-L2P
LVDS-L2P [12]
35 LVDS-LCLKP LVDS-LCLKN
LVDS-LCLKN [12]
LVDS-LCLKP
LVDS-LCLKP [12]
34
33 LVDS-U0N
LVDS-U0N [12]
LVDS-U0P
LVDS-U0P [12]
32 LVDS-U0N
LVDS-U1N
LVDS-U1N [12]
31 LVDS-U0P LVDS-U1P
LVDS-U1P [12]
30 LVDS-U1N LVDS-U2N
LVDS-U2N [12]
LVDS-U2P
LVDS-U2P [12]
29 LVDS-U1P
LVDS-UCLKN
LVDS-UCLKN [12]
28 LVDS-U2N LVDS-UCLKP
LVDS-UCLKP [12]
27
LVDS-U2P
26 LVDS-UCLKN
P_DDC_CLK
P_DDC_CLK [12]
P_DDC_DATA
25 LVDS-UCLKP
P_DDC_DATA [12]
PLVDD
LVDS_PLVDD_EN
*0_06 R153
C323
R147
*4.7u_6.3V_X5R_06
*1K_04
To LVDS Connector
Dual Mode Regulator Configuration
2.2-uH(L) 0 Olm(R)
SWR Connect NC
LDO NC Connect
SWR MODE
[12]
L16
*BCNR3010C-2R2M
PIN17 1 2
6-19-41001-019
VCCK_V12 VCCK_V12
LDO MODE
PIN17 R140 0_06
20140929
1.C308, C312 Capacitors should be closed to PIN17
! ! ! !!DMFWP!DP/ ! ! ! !!DMFWP!DP/ ! ! ! !!DMFWP!DP/
Title Title Title
[11] RTD2136(EDP TO LVDS) [11] RTD2136(EDP TO LVDS) [11] RTD2136(EDP TO LVDS)
Size Size Size Document Number Document Number Document Number
6-71-N1500-D02A 6-71-N1500-D02A 6-71-N1500-D02A
Custom Custom Custom
3.3VS
[12] PLVDD
Date: Date: Date: Tuesday, December 16, 2014 Tuesday, December 16, 2014 Tuesday, December 16, 2014 Sheet Sheet Sheet 11 11 11 o f o f o f
2 1
D
C
B
A
R e v R e v R e v
2.0A 2.0A 2.0A
55 55 55
