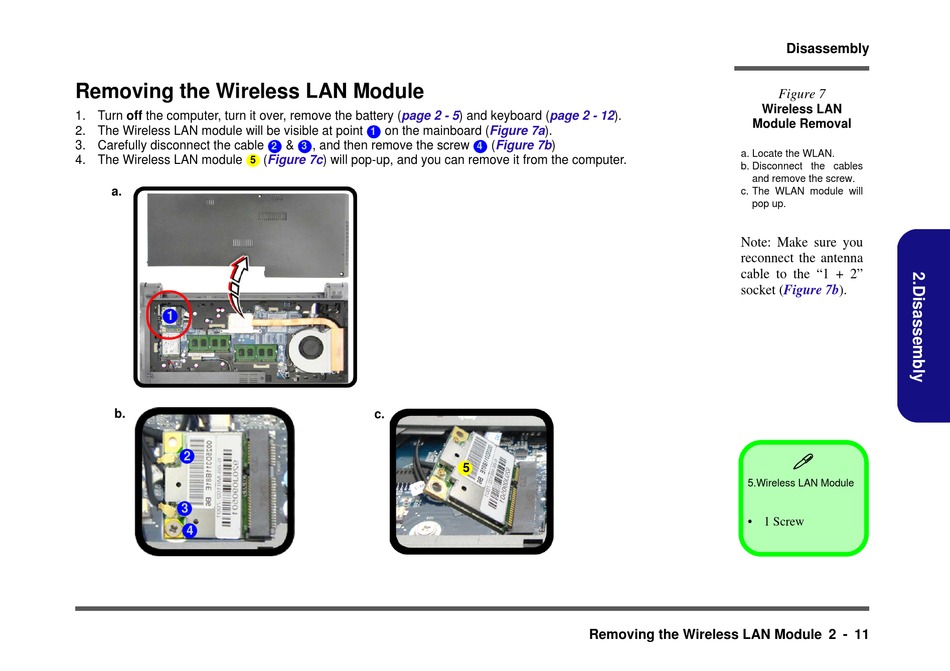

Removing the Wireless LAN Module
1. Turn off the computer, turn it over, remove the battery
2. The Wireless LAN module will be visible at point
3. Carefully disconnect the cable
4. The Wireless LAN module
5
a.
1
b.
2
3
4
(page 2 -
on the mainboard
1
&
, and then remove the screw
2
3
(Figure
7c) will pop-up, and you can remove it from the computer.
c.
5) and keyboard
(page 2 -
12).
(Figure
7a).
(Figure
7b)
4
5
Removing the Wireless LAN Module 2 - 11
Disassembly
Figure 7
Wireless LAN
Module Removal
a. Locate the WLAN.
b. Disconnect the cables
and remove the screw.
c. The WLAN module will
pop up.
Note: Make sure you
reconnect the antenna
cable to the "1 + 2"
socket
(Figure
7b).
5.Wireless LAN Module
• 1 Screw
