Removing The Optical (Cd/Dvd) Device - EUROCOM N150SC Service Manual

Disassembly

Removing the Optical (CD/DVD) Device

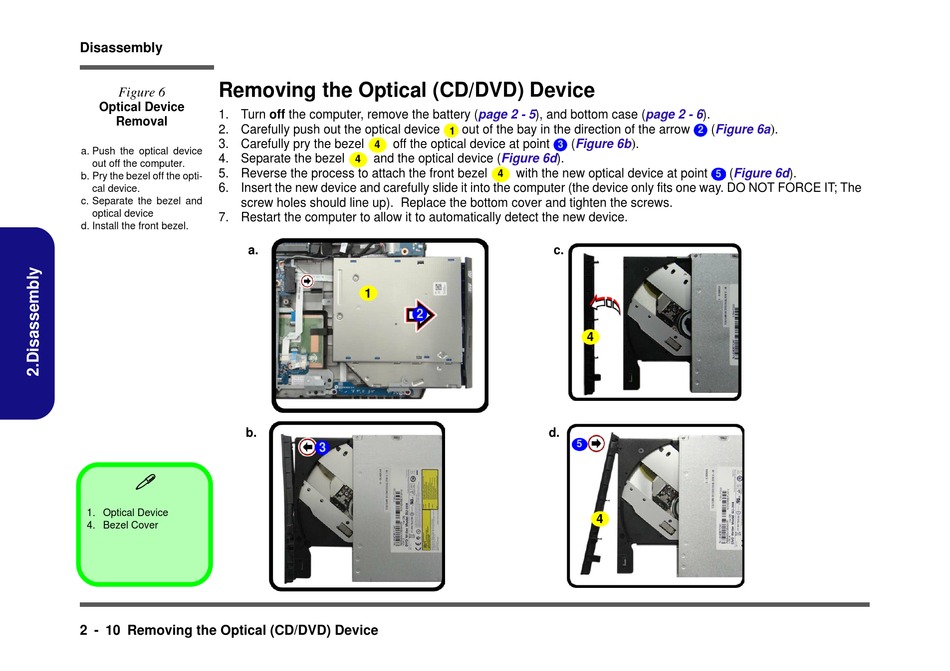

Figure 6
Optical Device
1. Turn off the computer, remove the battery
Removal
2. Carefully push out the optical device
3. Carefully pry the bezel
a. Push the optical device
4. Separate the bezel
out off the computer.
5. Reverse the process to attach the front bezel
b. Pry the bezel off the opti-
6. Insert the new device and carefully slide it into the computer (the device only fits one way. DO NOT FORCE IT; The
cal device.
c. Separate the bezel and
screw holes should line up). Replace the bottom cover and tighten the screws.
optical device
7. Restart the computer to allow it to automatically detect the new device.
d. Install the front bezel.
a.
b.

1. Optical Device
4. Bezel Cover
2 - 10 Removing the Optical (CD/DVD) Device
