Removing The Hard Disk Drive - EUROCOM N150SC Service Manual

Disassembly

Removing the Hard Disk Drive

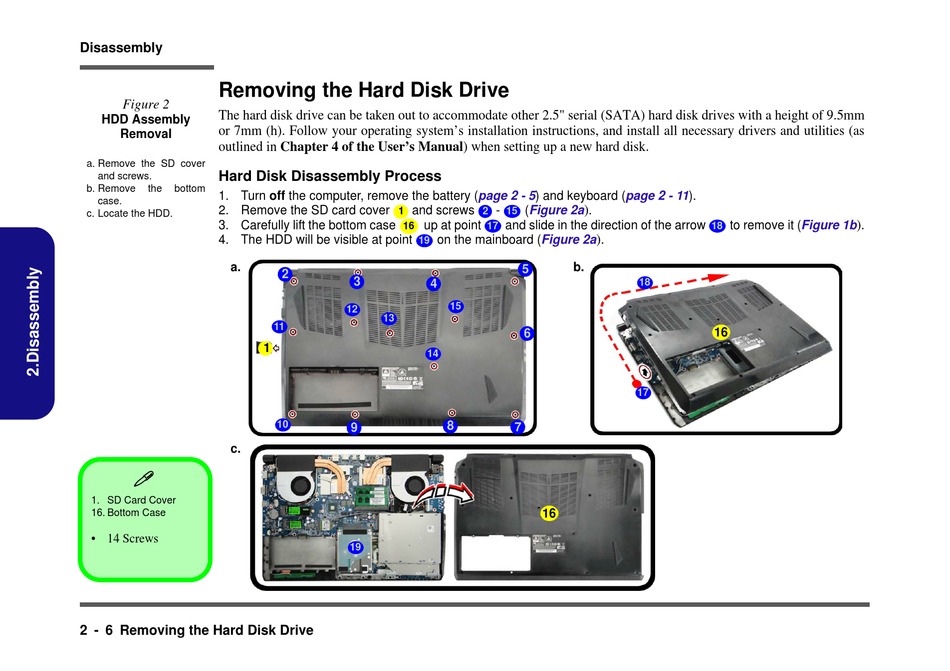

Figure 2
The hard disk drive can be taken out to accommodate other 2.5" serial (SATA) hard disk drives with a height of 9.5mm
HDD Assembly
or 7mm (h). Follow your operating system's installation instructions, and install all necessary drivers and utilities (as
Removal
outlined in Chapter 4 of the User's Manual) when setting up a new hard disk.
a. Remove the SD cover
Hard Disk Disassembly Process
and screws.
b. Remove the bottom
1. Turn off the computer, remove the battery
case.
2. Remove the SD card cover
c. Locate the HDD.
3. Carefully lift the bottom case
4. The HDD will be visible at point
a.
c.

1. SD Card Cover
16. Bottom Case
